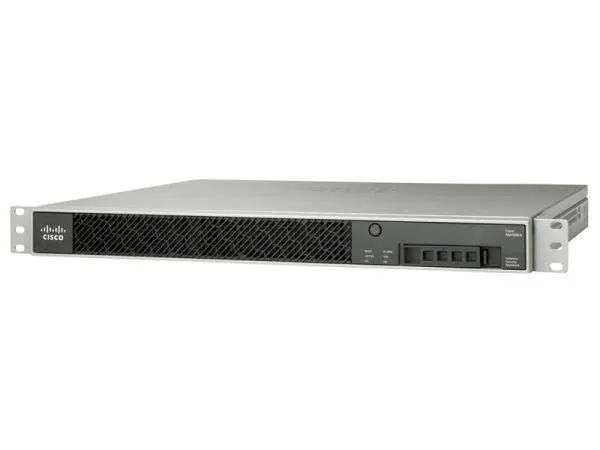

ASA5525-FPWR-K9

Model

ASA5525-FPWR-K9

Stateful inspection throughput (maximum*)

2 Gbps

Stateful inspection throughput (multiprotocol^**)

1 Gbps

Triple Data Encryption Standard/Advanced Encryption Standard (3DES/AES) VPN throughput^***

300 Mbps

Users/nodes

Unlimited

IPsec site-to-site VPN peers

750

Cisco AnyConnect Plus/Apex VPN maximum simultaneous connections^*****

750

Virtual interfaces (VLANs)

200

Security contexts^*****(included; maximum)

2; 20

High availability^****

Active/Active and Active/Standby

Integrated Wireless Access Point

(See Cisco AP 702 datasheet for WiFi technical details)

N/A

Expansion slot

1 interface card

User-accessible Flash slot

0

USB 2.0 ports

2

Integrated I/O

8 GE copper

Expansion I/O

6 GE copper or

6 GE SFP

Dedicated management port

Yes (1 GE)

Serial ports

1 RJ-45 console

Solid-state drive

1 slot,

120 GB MLC SED

Memory

8 GB

System flash

8 GB

System bus

Multibus architecture

Temperature

23 to 104°F (-5 to 40°C)

Relative humidity

90 percent

Altitude

Designed and tested for 0 to 10,000 ft (3050 m)

Acousticnoise

64.2 dBA max

Temperature^*******

-13 to 158°F (-25 to 70°C)

Relative humidity

10 to 90 percent

Altitude

Designed and tested for 0 to 15,000 ft (4572 m)

AC range line voltage

100 to 240 VAC

AC normal line voltage

100 to 240 VAC

AC current

4.85A

AC frequency

50/60 Hz

Dual-power supplies

None

DC domestic line voltage

-40.5 to 56 VDC
(-48 VDC nominal)

DC international line voltage

-55 to -72 VDC

(-60 VDC nominal)

DC current

15A (maximum input)

Steady state

75W

Maximum peak

108W

Maximum heat dissipation

369 Btu/hr

Form factor

1RU, 19-in. rack-mountable

Dimensions

1.75 x 17.5 x 14.25 in.

(H x W x D)

(4.45 x 20.04 x 36.20 cm)

Weight (with AC power supply)

22.0 lb (10 kg)
