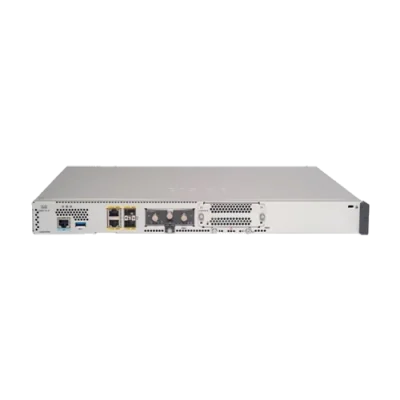

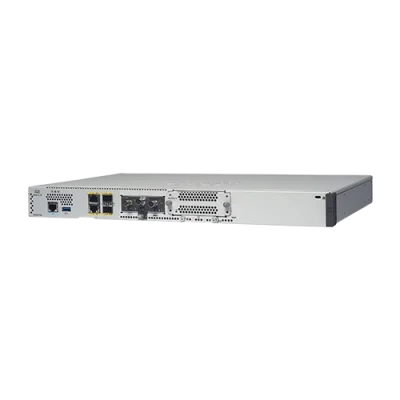

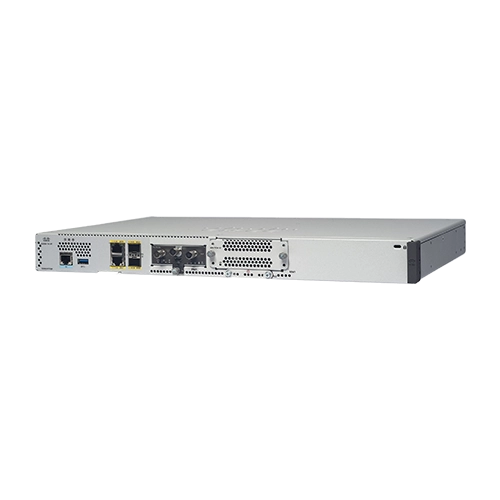

C8200-1N-4T

Features

• The C8200-1N-4T supports SD-WAN, and WAN performance may be enhanced and management made more accessible.
• Cisco Catalyst 8200-1N-4T – router – rack-mountable provides 10GbE and 1GbE ports are among the high-speed interfaces that the router provides.
• The cloud-native architecture of the router allows for quick deployment and flexible operations.
• Capable of overseeing site-to-site VPNs, including IPsec and SSL, and remote access.
• The router’s programmability and network operations can be automated and customized.
• The C8200-1N-4T’s high-performance Intel x86 processor provides reduced latency and effective packet processing.

Specifications of Cisco 8200-1N-4T

Applications

• Enterprise WAN Connectivity
• Secure Remote Access
• data center routers
• IT Infrastructure
• Networking Firms

What is the Maximum Throughput of C8200L?

IPv4 forwarding throughput (1400 bytes) is up to 3.8 Gbps, whereas SD-WAN IPsec throughput (1400 bytes) is up to 500 Mbps.

What is the Architecture of Cisco 8200?

With four built-in WAN ports, one NIM slot, and one dedicated PIM slot, the Catalyst 8200 Series is constructed on an x86 SoC multicore CPU system architecture (four or eight cores) and is intended for interface flexibility and versatility.

What is the Maximum Speed of IPSec?

IPsec tunnels have a maximum throughput of 5 Gbps.

What are IPSec VPN’s High Availability Enhancements?

Hot Standby Router Protocol (HSRP), Virtual Gateway Protocol, and Reverse Route Injection (RRI).
