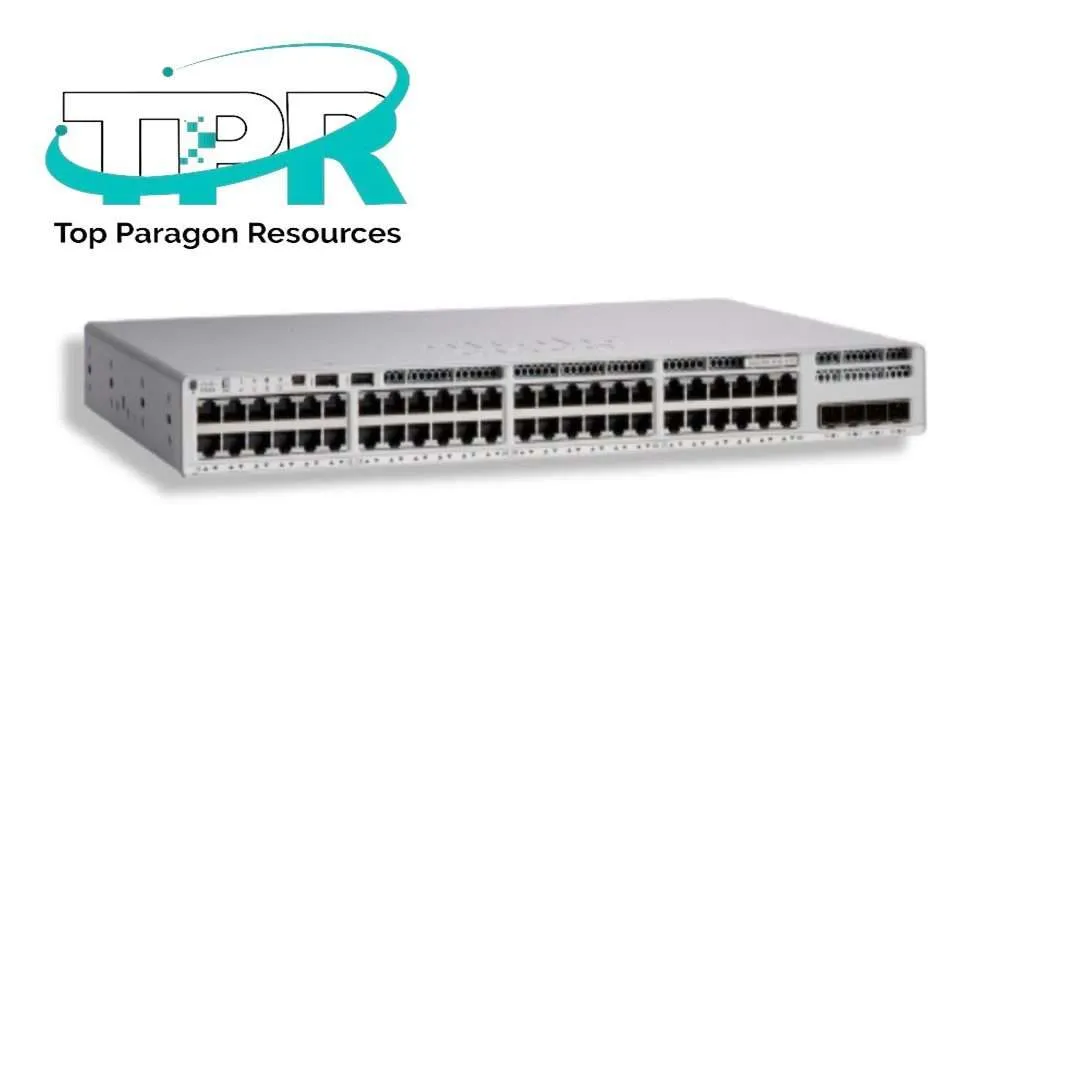

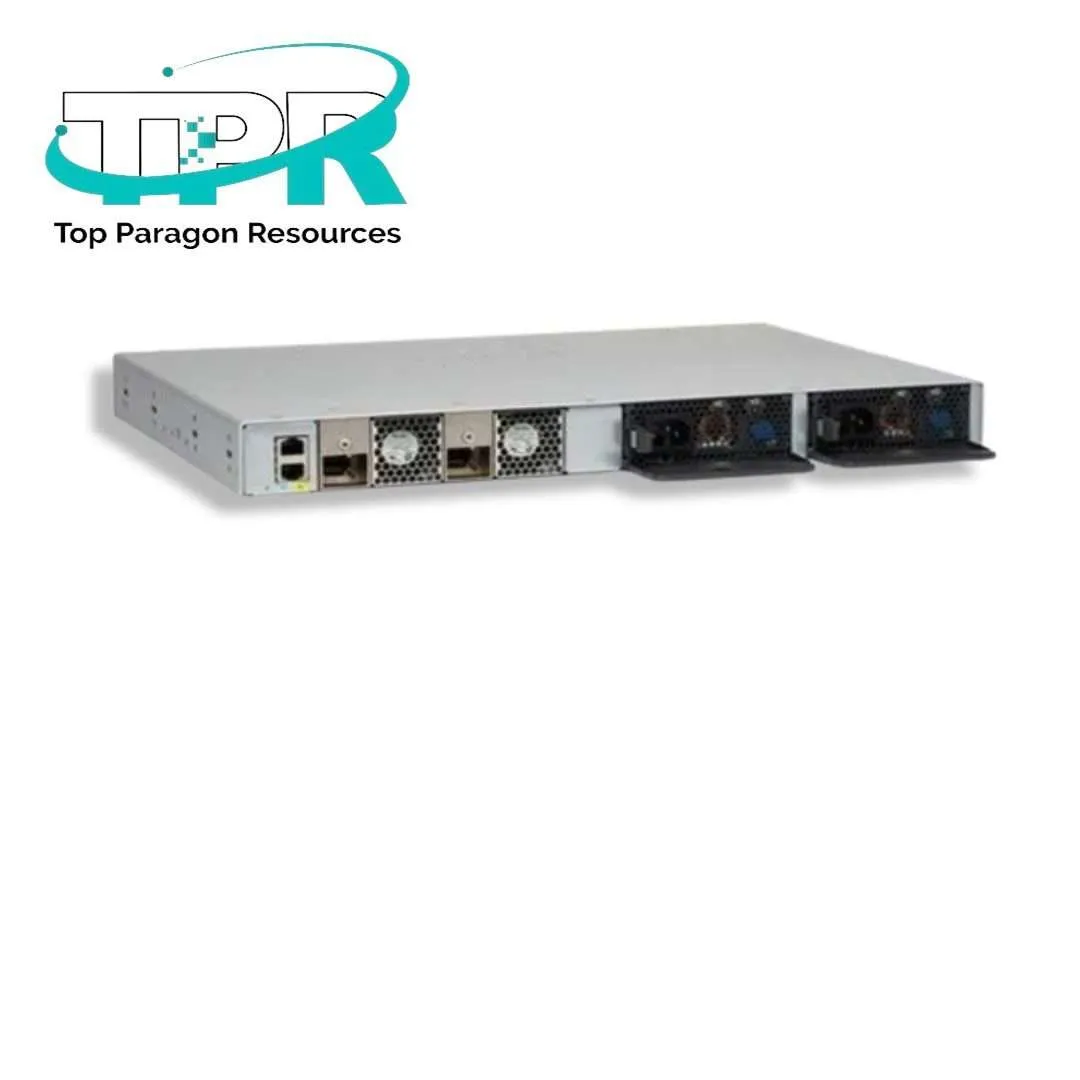

Name: C9200L-48P-4X-E - Top Paragon Resources
Price: 2690.00 USD
Availability: InStock

Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access)
● Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
● Network assurance and improved resolution time through Cisco DNA Center
● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries

Manufacturer Part Number	C9200L-48P-4X-E
Product Type	Layer 3 Switch
Manageable	Yes
Ethernet Technology	Gigabit Ethernet10 Gigabit Ethernet
Number of Total Expansion Slots	4
Product Family	Catalyst 9200
Stack Port	Yes
Media Type Supported	Twisted PairOptical Fiber
Total Number of Network Ports	48
PoE (RJ-45) Port	Yes
Redundant Power Supply Supported	Yes
Expansion Slot Type	SFP+
Form Factor	Rack-mountable
Power Source	Power Supply
Layer Supported	3
Number of Power Supplies Supported	2
Number of SFP+ Slots	4
Modular	Yes
Uplink Port	Yes
Shared SFP Slot	No
Port / Expansion Slot Details	48 x Gigabit Ethernet Network4 x 10 Gigabit Ethernet Uplink
Height	1.7″
Width	17.5″
Depth	11.3″
Product Series	9200
Product Model	C9200L-48P-4X
Network Technology	10/100/1000Base-T10GBase-X
Product Line	Catalyst
