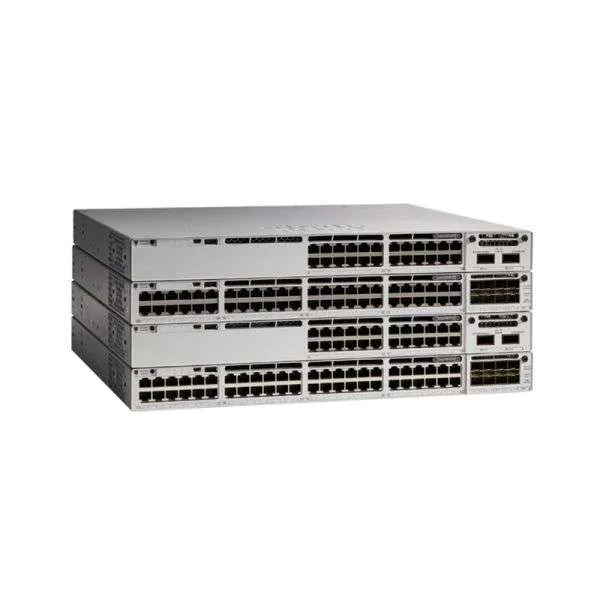

C9300L-24P-4X-A
C9300L-24P-4X-A
$2,250.00
Cisco Catalyst 9300 Series is the next generation of the industry’s most widely deployed stackable switching platform. Built for security, IoT, and the cloud, these network switches form the foundation for Cisco’s Software-Defined Access, our leading enterprise architecture. Cisco Catalyst 9300L switches are the Catalyst 9300 switches with fixed modules. The Cisco Catalyst C9300L-24P-4X-A is part of the Cisco Catalyst 9300 Series. This secure, IoT-ready and cloud-integrated switch grap Cisco’s Software-Defined Access architecture. With fixed modules, it supports both Network Advantage and Essentials.
Notably, it provides a broad 320 Gbps stacking bandwidth, perfect for networks that grow rapidly. The switch’s forwarding power is up to 130.95 Mpps and its switching prowess lies anywhere from 56 Gbps to 176 Gbps, ideal for high-usage settings. Capable of accommodating up to 32,000 MAC addresses and 8,000 multicast routing entries, the Cisco Catalyst 9300 suits vast deployment.
Features of Cisco Catalyst C9300L-24P-4X-A Switch
The Cisco Cisco Catalyst 9300 switch is packed with features that can boost your network performance.
- Firstly, it has impressive stacking bandwidth thanks to StackWise-320 tech, which performs at 320 Gbps.
- Secondly, it’s highly scalable, supporting up to 32,000 MAC addresses and 8,000 multicast routing entries.
- Jumbo Frames is another handy feature, managing jumbo frames as large as 9198 bytes.
- Lastly, you can’t overlook its Advanced Security. The switch is integrated with Cisco’s Software-Defined Access architecture, promising secure, scalable networks.
Overall, the features offered by the Cisco 9300 make it a solid choice for any business aiming to future-proof their network setup.
Wondering about the stacking technology utilized by the Cisco Catalyst 9300?
It leans on StackWise-320 technology. This grants 320 Gbps of stacking bandwidth. Definitely great for top-performing networking!
How much is the Cisco C9300L-24P-4X-A’s switching capacity?
Well, it swings between 56 Gbps and 176 Gbps. However, it is important to note that this varies based on model and setup.
Cisco Catalyst 9300L Switches Specification |
|
| Designed to replace | Catalyst 3850 |
| Supported IOS | Network Advantage, Network Essentials |
| Network modules options | Fixed Modules |
| Stack Technology | StackWise-320 |
| Stacking bandwidth | 320 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | – |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8,000 |
| QoS scale entries | 5,120 |
| ACL scale entries | 5,120 |
| Packet buffer per SKU | 16 MB buffer for 24 and 48 port Gigabit Ethernet models |
| Flexible NetFlow (FNF) entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces (SVIs) | 1000 |
| Jumbo frames | 9198 bytes |
| Switching capacity | 56 Gbps – 176 Gbps |
| Forwarding rate | 41.66 Mpps – 130.95 Mpps |
