Main Specifications
| Product Description |

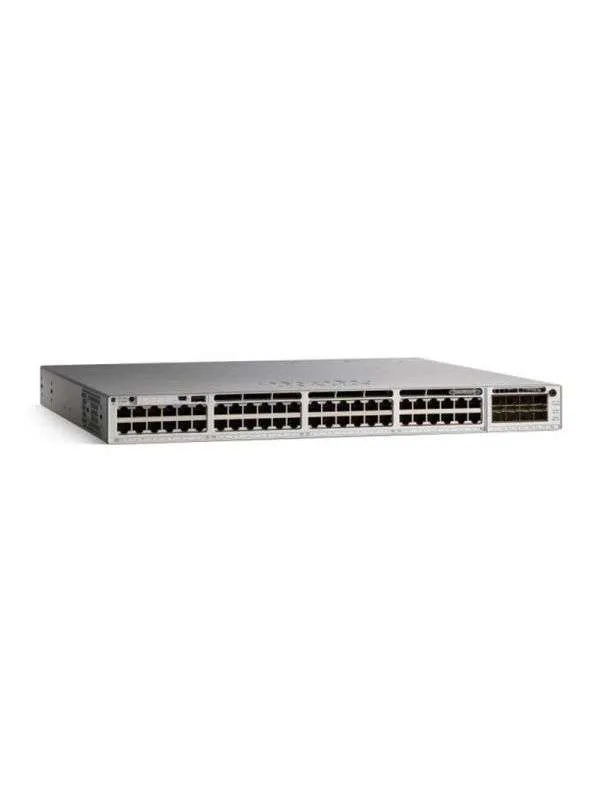

Cisco Catalyst 9300X – Network Advantage – switch – 48 ports – Managed – rack-mountable |
| Manufacturer Warranty |
Limited lifetime warranty |
| Features |
VPN support, full duplex mode, Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LACP support, Remote Switch Port Analyzer (RSPAN), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, Virtual Private LAN Service (VPLS), Control plane protection (CoPP), Ethernet Virtual Private Network (EVPN), Ethernet over MPLS (EoMPLS), Blue Beacon LED, Zero-touch provisioning (ZTP), Energy-Efficient Ethernet (EEE), Switched Port Analyzer (SPAN), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR), Cisco Unified Access Data Plane (UADP) 2.0, Cisco Discovery Protocol (CDP), mDNS, Secure Unique Device Identification (SUDI), Preboot Execution Environment, Cisco StackWise-1T technology |
| Dimensions (WxDxH) |
44.5 cm x 56 cm x 4.4 cm |
| Weight |
6.62 kg |
| Power |
AC 100-240 V (50 – 60 Hz) |
| Device Type |
Switch – 48 ports – L3 – Managed – stackable |
| Enclosure Type |
Rack-mountable |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3at, IEEE 1588v2, IEEE 802.1BA, IEEE 802.3bz |
| Capacity |
IPv4 routing table entries: 39000 ¦ Multicast routes: 8000 ¦ QoS scale entries: 4000 ¦ ACL scale entries: 8000 ¦ IPv6 routing table entries: 19500 ¦ Packet buffer size: 16 MB ¦ FNF entries: 64000 ¦ VLAN IDs: 4094 ¦ Switched virtual interfaces (SVIs): 1000 |
| Remote Management Protocol |
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, HTTP, CLI, NETCONF, RESTCONF, gRPC, YANG |
| Routing Protocol |
RIP, RIP-1, RIP-2, VRRP, PIM-SM, static IP routing, GRE, PIM-SSM, policy-based routing (PBR), RIPng, MSTP, STP, LISP |
| Power Redundancy |
Optional |
| Performance |
Switching capacity: 2000 Gbps ¦ Switching capacity with stacking: 3000 Gbps ¦ Forwarding rate: 1488 Mpps ¦ Forwarding rate with stacking: 2232 Mpps |
| MAC Address Table Size |
32000 entries |
| Ports |
48 x 100/1000/2.5G/5G/10GBase-T |
| Jumbo Frame Support |
9198 bytes |
| Subtype |
10 Gigabit Ethernet |
|
