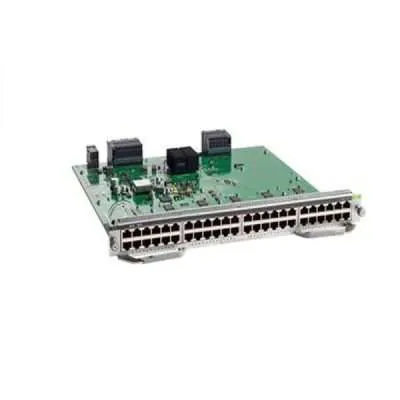

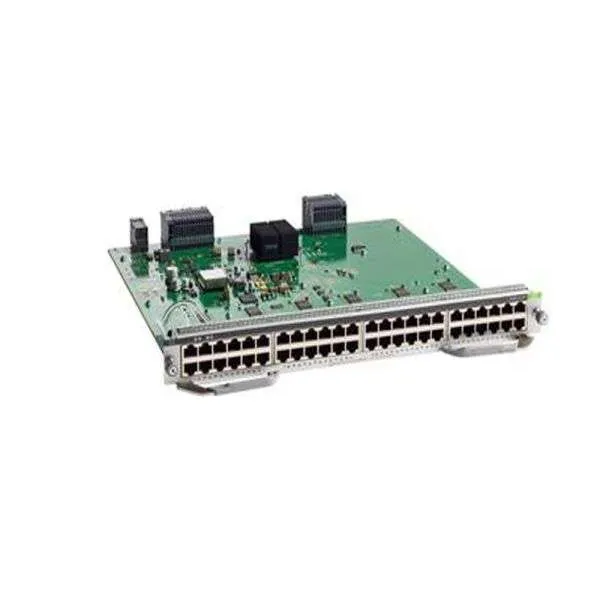

C9400-LC-48T=

Feature

Description

Standards

EtherChannel Technology

●  10 Gigabit EtherChannel: All 10Gbps ports

●  IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports

●  Port Aggregation Protocol (PagP): Yes

●  Number of ports per tuple: 8

●  EtherChannel and IEEE 802.3ad technology across line cards: Yes

Physical Dimensions

●  Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)

Environmental Conditions

●  Normal Operating Temperature and Altitudes:

◦   27° to 109°F (-5 to +45°C), up to 6,000 feet (1800 m)

◦   27° to 104°F (-5 to +40°C), up to 10,000 feet (3000 m)

◦   Minimum ambient temperature for cold startup is 0°C

●  Short-Term Exceptional Conditions:

◦   27° to 119°F (-5 to +55°C), up to 6,000 feet (1800 m)

◦   27° to 114°F (-5 to +50°C), up to 10,000 feet (3000 m)

◦   Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences

●  Storage temperature: -40° to 158° F (-40° to 70°C)

●  Relative humidity: 10 to 95%, noncondensing

●  Operating altitude: -60 to 3000m

Safety Conditions

Fiber optic lasers: Class 1 laser products

Safety Certifications

●  CAN/CSA-C222.2 No. 60950-1

●  EN 60950-1

●  IEC 60950-1

●  AS/NZS 60950.1

●  IEEE 802.3

Electromagnetic Emissions Certifications

●  CISPR22 Class A

●  EN 300 386 V1.6.1

●  EN 55022 Class A

●  EN 55032 Class A

●  CISPR 32 Class A

●  EN61000-3-2

●  EN61000-3-3

●  ICES-003 Class A

●  TCVN 7189 Class A

●  V-3 Class A

●  CISPR24

●  EN 300 386

●  EN55024

●  TCVN 7317

ROHS Compliance

ROHS5
