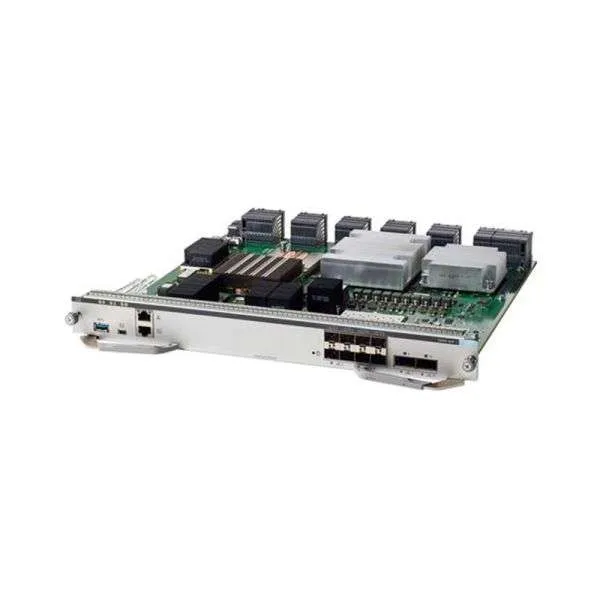

C9400-SUP-1

Features

Performance and Scalability

Centralized wired capacity

Up to 1.44 Tbps

Per-slot switching Capacity

80 Gbps

Total number of MAC addresses

Up to 64K

Total number of IPv4 routes (ARP plus learned routes)

Up to 112K

FNF entries (v4/v6)

Up to 384K/192K

DRAM

16 GB

Flash

10 GB

VLAN IDs

4096

SSD Capacity

960 GB

Total Switched Virtual Interfaces (SVIs)

4,000

Jumbo frame

9216 bytes

Forwarding Rate

●  450 Mpps for IPv6

IPv4 Routing Entries

Up to 112K

IPv6 Routing Entries

Up to 56K

Multicast Routes

Up to 16K

QoS Hardware Entries

Up to 18K

Security ACL Hardware Entries

Up to 18K

Packet Buffer

96 MB

Physical specifications

(H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)

Weight: 10 lbs (4.5 kg)

Operating temperature

Normal Operating Temperature and Altitudes:

●  27° to 109°F (-5 to +45ºC), up to 6,000 feet (1800 m)

●  27° to 104°F (-5 to +40ºC), up to 10,000 feet (3000 m)

●  *Minimum ambient temperature for cold startup is 0ºC

Short-Term Exceptional Conditions:

●  27° to 119°F (-5 to +55ºC), up to 6,000 feet (1800 m)

●  27° to 114°F (-5 to +50ºC), up to 10,000 feet (3000 m)

●  **Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences

Storage temperature

40° to 158°F (-40° to 70°C)

Relative humidity operating and nonoperating noncondensing

10 to 95 percent, noncondensing

Altitude

-60 to 3000m

MTBF

302,000 hours
