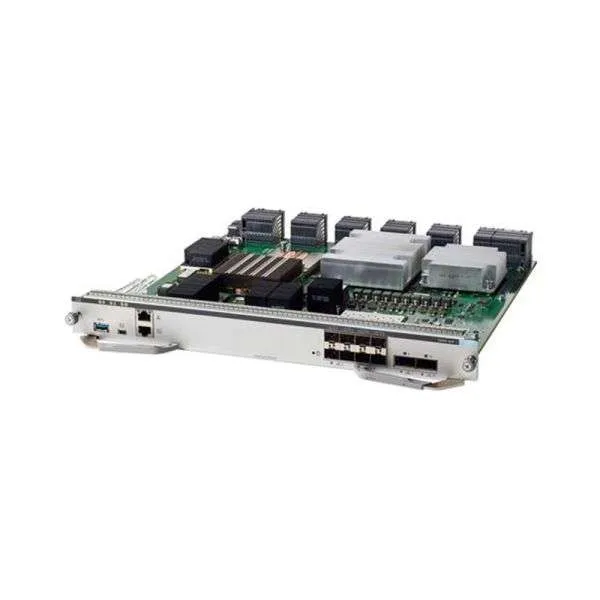

C9400-SUP-1XL

Product Details

Cisco C9400 Supervisor Engine Modules provides these highlights:

• The Cisco Unified Access Data Plane (UADP) 2.0 ASIC is ready for next-generation technologies with its programmable pipeline, microengine capabilities, and template-based configurable allocation of Layer 2, Layer 3, forwarding, Access Control List (ACL), and Quality of Service (QoS) entries

• Intel 2.4-GHz x86 with up to 960 GB of SATA SSD local storage for container-based application hosting

• Up to 1.44 Tbps wired switching capacity (IPv4) with 900 Mpps of throughput

• Up to two nonblocking 25 Gigabit Ethernet uplinks on the C9400-SUP-1XL-Y supervisor engine

• Up to two nonblocking 40 Gigabit Ethernet uplinks (Quad Small Form-Factor Pluggable [QSFP]) and up to eight nonblocking 10 Gigabit Ethernet uplinks (SFP+)

• SFP support on uplinks to offer flexibility for up to eight Gigabit Ethernet ports

• 384 ports of nonblocking 10/100/1000 RJ-45 ports

• 392 ports of nonblocking 1 Gigabit Ethernet Fiber (SFP) ports

• 200 ports of 10 Gigabit Ethernet SFP+ ports (eight uplinks plus 192 line card ports)

• Cisco UPOE®+ (90 W) capabilities on 263 ports simultaneously

• Cisco UPOE (60W)/PoE+ (30W) capabilities on 384 ports simultaneously

• Line rate hardware-based Flexible NetFlow (FNF) delivering flow collection up to 384,000 flows

• IPv6 support in hardware, providing wire rate forwarding for IPv6 networks

• Dual-stack support for IPv4 and IPv6 and dynamic hardware forwarding table allocations for ease of IPv4-to-IPv6 migration

• Support for both static and dynamic NAT and Port Address Translation (PAT)

• Scalable routing (IPv4, IPv6, and multicast) tables and Layer 2 tables

• Open Cisco IOS XE: This modern operating system for the enterprise provides support for model-driven programmability, on-box Python scripting, streaming telemetry, container-based application hosting and patching for critical bug fixes. The OS also has built-in defenses to protect against runtime attacks

• SD-Access: Cisco Catalyst 9400 Series Switches form the foundation building block for SD-Access – Cisco’s leading enterprise architecture, which includes:

– Policy-based automation from edge to cloud

– Segmentation and micro-segmentation made easy, with having predictable performance and scalability

– Automation through Cisco DNA Center™

– Policy through the Cisco Identity Services Engine (ISE)

– Network assurance through Network Data Platform

– The ability to launch new business services faster and improve issue resolution time significantly

• Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering eases new branch or campus device rollouts and can also be used for providing updates to an existing network
