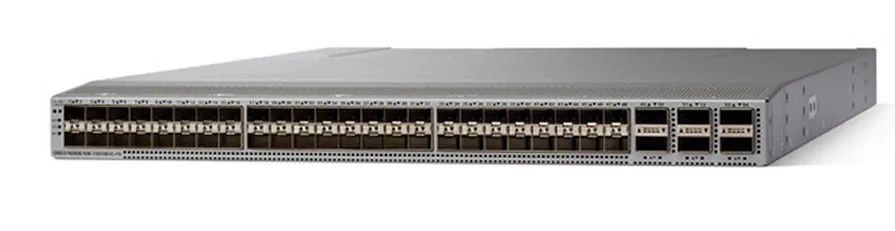

Cisco-N9K-C93180YC-FX used
Cisco-N9K-C93180YC-FX used
$2,780.00
The Cisco Nexus N9K-C93180YC-FX is a 1RU switch with response of less than 1 microsecond that supports 3.6 Tbps of bandwidth and 1.2 bpps. The 48 downlink ports on the 93180YC-FX are proficient of supporting 1-, 10-, or 25-Gbps Ethernet or as 16-, 32-Gbps Fibre Channel ports, making a point of meeting for primary storage, back-end storage and computer servers, resources at the top of frame.
| SKU | N9K-C93180YC-FX |
| Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 1/10/25-Gbps Ethernet
16/32-Gbps Fibre Channel |
| CPU | 6 cores |
| System memory | Up to 32 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Typical power (AC/DC) | 260W |
| USB ports | 1 |
| RS-232 serial ports | 1 |
Product Details
Cisco N9K-C93180YC-FX Provides the Following Features and Benefits:
①Architectural Flexibility
②Architectural Flexibility
③High Scalability, Flexibility, and Security
④Intelligent Buffer Management
⑤RDME over Converged Ethernet – RoCE Support
⑥LAN and SAN Convergence
⑦Hardware and Software High Availability
⑧Purpose-Built Cisco NX-OS Software Operating System with Comprehensive, Proven Innovations
⑨Cisco Tetration Analytics Platform Support
⑩Cisco Network Assurance Engine (NAE)
Front Panel of Cisco N9K-C93180YC-FX
| ① | Beacon [BCN], Status [STS], and Environment [ENV] LEDs |
| ② | 48 10/1-Gigabit RJ45 ports |
| ③ | 6 40/100-Gigabit QSFP28 ports |

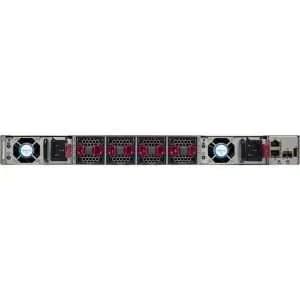

Rear Panel of Cisco N9K-C93180YC-FX.
| ① | Two power supplies (one used for operations and one used for redundancy) (AC power supplies shown) with power supply slot 1 on the left and slot 2 on the right. |
| ② | Four fan modules with fan slot 1 on the left and fan slot 4 on the right |
| ③ | Management port (RJ-45 port) |
| ④ | Chassis LEDs (Beacon [BCN] and Status [STS]) |
| ⑤ | USB port |
| ⑥ | Console port (RS232 port) |
| ⑦ | Management port (SFP+ port) |
Compare Similar Products
| Product Name | N9K-C93180YC-FX | N9K-C93108TC-FX | N9K-C93108TC-FX3P |
| Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports | 48 x 100M/1/10GBASE-T and 6 x 40/100-Gbps QSFP28 ports | 48 x 1-GBASE-T ports, 4 x 1/10/25-Gbps SFP28 ports and 2 x 40/100 QSFP28 ports |
| CPU | 6 cores | 4 cores | 4 cores |
| System memory | Up to 32 GB | 24 GB | 24 GB |
| SSD drive | 128 GB | 128 GB | 128 GB |
| System buffer | 40 MB | 40 MB | 40 MB |
| USB ports | 1 | 1 | 1 |
| RS-232 serial ports | 1 | 1 | 1 |
N9K-C93180YC-FX Specification
|
N9K-C93180YC-FX Specification |
|
| Hardware performance and scalability | |
| Ports | 48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports |
| Downlink supported speeds | 1/10/25-Gbps Ethernet
16/32-Gbps Fibre Channel |
| CPU | 6 cores |
| System memory | Up to 32 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Management ports | 1 RJ-45 port
L1 and L2 ports are unused |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 500W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC/DC) | 260W |
| Maximum power (AC/DC)* | 425W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (High-Voltage AC [HVAC]) |
200 to 277V |
| Input voltage (DC) | –48 to –60V |
| Input voltage (High-Voltage DC [HVDC]) |
–240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |
| Physical dimensions (H x W x D) |
1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 57 dBA at 40% fan speed, 68.9 dBA at 70% fan speed, and 77.4 dBA at 100% fan speed |
| RoHS compliance | Yes |
| MTBF | 238,470 hours |
| Environmental properties | |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | –40 to 158°F (–40 to 70°C) |
| Humidity | 5 to 95% (non condensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
