CISCO1921/K9
CISCO1921/K9
$95.00
The Cisco CISCO1921/K9 1921 Router, which Memory and Flash Memory can’t upgrade, is designed for branch offices.
| Product Code
Condition |
CISCO1921/K9
Used |
| Rack Units | 1U |
| Interfaces | 2 integrated 10/100/1000 Ethernet ports: GE0/0&GE0/1 |
| Expansion Slot(s) | 2 enhanced High-Speed WAN Interface Card (EHWIC) slots |
| RAM | 512 MB/512 MB |
| Flash Memory | 256 MB/256 MB |
| Dimensions | 1.75 x 13.5 x 11.5 in. |
| Package Weight | 5.41 Kg |
Quick Specs of the CISCO1921/K9.
| Product Code | CISCO1921/K9 |
| Rack Units | 1U |
| Interfaces | 2 integrated 10/100/1000 Ethernet ports: GE0/0&GE0/1 |
| Expansion Slot(s) | 2 enhanced High-Speed WAN Interface Card (EHWIC) slots |
| RAM | 512 MB/512 MB |
| Flash Memory | 256 MB/256 MB |
| Dimensions | 1.75 x 13.5 x 11.5 in. |
| Package Weight | 5.41 Kg |

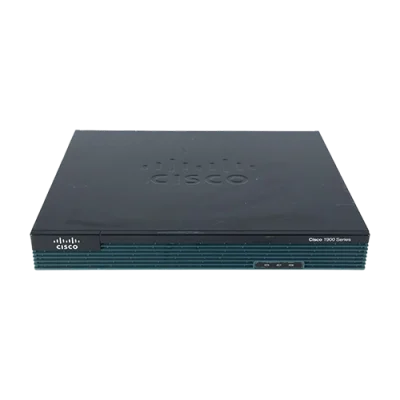

Front Panel LED Area
| LED | Color | Description |
| SYS | Solid green | Solid green indicates normal operation. |
| Blinking green | System is booting or is in ROM monitor mode. | |
| Amber | System error. | |
| Off | Power is off or system board is faulty. | |
| ACT | Green | Solid or blinking when any packets are transmitted or received on any WAN or LAN, or when monitoring system activity. |
| PoE | Green | PoE is available. |
| Amber | Power supply is not supplying PoE power. |

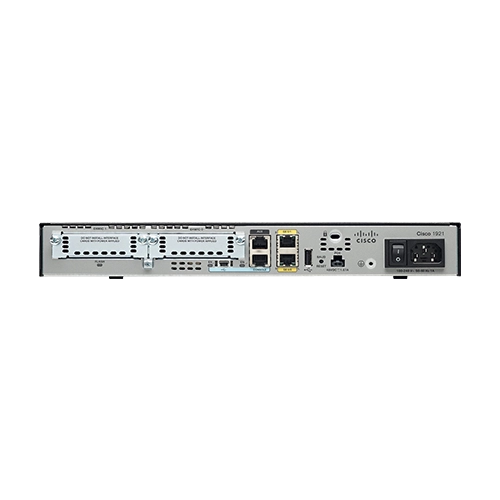

Back Panel LED Area
| LED | Color | Description | Location |
| Flash LED | Green | Blinking means software is accessing the internal USB Flash (eUSB) device. | Back Panel |
| Amber | Initialized with error. | ||
| EN (USB serial console port) | Green | The USB console port is active. | Back Panel |
| EN(RJ-45
console port) |
Green | The RJ-45 console port is active. | Back Panel |
| S (Speed) | 1 blink + pause | GE port operating at 10 Mb/s. | Back Panel |
| 2 blink + pause | GE port operating at 100 Mb/s. | ||
| 3 blink + pause | GE port operating at 1000 Mb/s. | ||
| L (Link) | Green | GE link is established. | Back Panel |
| Off | No GE link is established. |
Recommended Cards and Licenses
Recommended Cards and Licenses
| Category | Models | Description |
| EHWIC
|
EHWIC-1GE-SFP-CU | Cisco 1900, 2900, 3900 Router EHWIC WAN Card EHWIC-1GE-SFP-CU |
| EHWIC-4ESG | Four port 10/100/1000 Base-TX Gigabit Ethernet switch interface card for Cisco 1900 2900 3900 Routers | |
| HWIC
|
HWIC-2FE | HWIC two routed port Cisco Router High-Speed WAN Interface card |
| HWIC-1T | 1-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card | |
| HWIC-2T | 2-Port Serial WAN Interface Card Cisco Router High-Speed WAN Interface card | |
| VWIC
|
VWIC3-1MFT-T1/E1 | Cisco Voice/WAN Card VWIC3-1MFT-T1/E1 |
| VWIC3-2MFT-T1/E1 | Cisco Voice/WAN Card VWIC3-2MFT-T1/E1 | |
| VWIC3-1MFT-G703 | Cisco Voice & WAN T1/E1 interface moudle VWIC3-1MFT-G703 | |
| VWIC3-2MFT-G703 | Cisco Voice/WAN Card VWIC3-2MFT-G703 | |
| Licenses | L-SL-19-DATA-K9 | Cisco 1900 IOS License L-SL-19-DATA-K9= Data E-Delivery PAK for Cisco 1900 |
| L-SL-19-SEC-K9 | Security License for Cisco 1900 | |
| L-SL-19-APP-K9 | AppX License with; DATA and WAAS for Cisco 1900 Series |
CISCO1921/K9 Specification
CISCO1921/K9 Specification |
|
| Services and Slot Density | |
| Embedded hardware-based cryptography acceleration (IPsec + SSL) | Yes |
| RJ-45 onboard LAN/WAN 10/100/1000 ports | 2 |
| EHWIC slots | 2 |
| Doublewide EHWIC slots (use of a doublewide EHWIC slot will consume 2 EHWIC slots) | 1 |
| Cisco Integrated Services Module (ISM) slots | 0 |
| Memory (DDR2 DRAM): Default/maximum | 512 MB/512 MB |
| USB flash memory (internal): Default/maximum | 256 MB/256 MB |
| External USB flash-memory slots (Type A) | 1 |
| USB console port (mini-Type B) (up to 115.2 kbps) | 1 |
| Serial console port (up to 115.2 kbps) | 1 |
| Serial auxiliary port (up to 115.2 kbps | 1 |
| Integrated power supply | AC and DC power-supply models |
| Power-supply options | POE (external) – on AC models only |
| Redundant-power-supply support | No |
| Power Specifications | |
| AC input voltage | 100-240V ~ |
| AC input frequency | 47-63 Hz |
| AC input current range AC power supply (maximum) (amps) | 1.5-0.6 |
| AC input surge current | <50A |
| Typical power (no modules) | 25W |
| Maximum power capacity with AC power supply | 60W |
| Maximum power capacity with PoE power supply (platform only) | 70W |
| Maximum PoE device power capacity with PoE power supply | 80W |
| DC power input | 32-60 VDC, 4A, positive or negative, single source |
| DC input wire size | AWG 14 (2.0 mm2) |
| Safety ground-wire size | AWG 14 (2.0 mm2), minimum |
| Wire terminal (lug) | Amp/Tyco No.32957 |
| Overcurrent protection | 20A maximum |
| Physical Specifications | |
| Dimensions (H x W x D) | 1.75 x 13.5 x 11.5 in. (4.45 x 34.29 x 29.21 cm) |
| Rack height | 1 rack unit (1RU) |
| Rack-mount 19 in. (48.3 cm) EIA | Optional |
| Wall-mount (refer to installation guide for approved orientation) | Yes |
| Package Weight | 11.9 lb (5.41 Kg) |
| Weight: With AC power supply (no modules) | 6.75 lb (3.06 Kg) |
| Weight: With PoE power supply (no modules) | 7.5 lb (3.4 Kg) |
| Airflow | Back to sides |
| Environmental Specifications | |
| Operating Conditions | |
| Temperature: 5906 ft (1800m) maximum altitude | 32-104°F (0-40°C) |
| Temperature: 9843 ft (3000m) maximum altitude | 32-77°F (0-25°C) |
| Altitude | 10,000 ft (3,000m) |
| Humidity | 10 to 85% relative humidity (RH) |
| Acoustic: Sound pressure (typical/maximum) | 32.99/58.33 dBA |
| Acoustic: Sound power (typical/maximum) | 41.99/67.22 dBA |
| Transportation and Storage Conditions | |
| Temperature | -40 to 158°F (-40 to 70°C) |
| Humidity | 5 to 95% RH |
| Altitude | 15,000 ft (4,570m) |
| Regulatory Compliance | |
| Safety | UL 60950-1
CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950-1 IEC 60950-1 |
| EMC | 47 CFR, Part 15
ICES-003 Class A EN55022 Class A CISPR22 Class A AS/NZS 3548 Class A VCCI V-3 EN 300-386 EN 61000 (Immunity) EN 55024, CISPR 24 EN50082-1 |
| Telecom | TIA/EIA/IS-968
CS-03 ANSI T1.101 IEEE 802.3 RTTE Directive |
