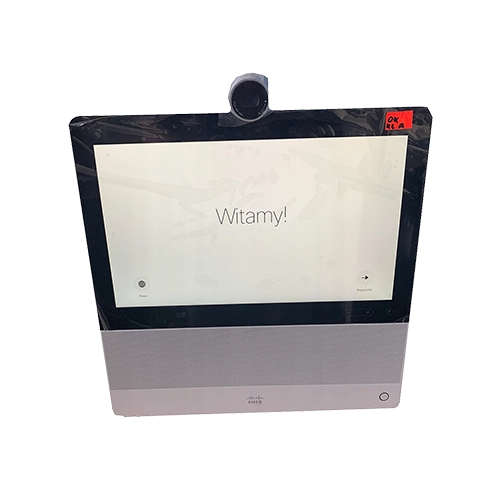

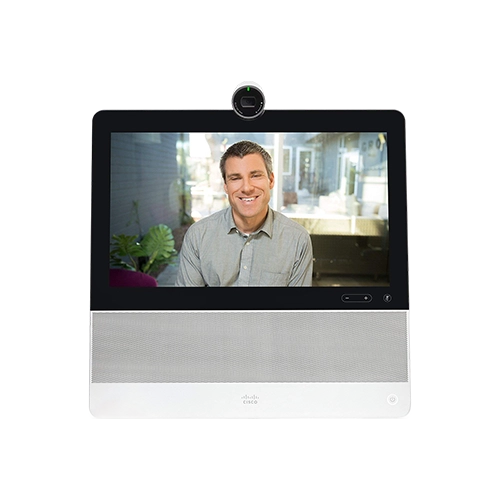

CP-DX70-W-K9

• Codec
• Camera
• Display
• Microphones and loudspeaker

AHVA display technology contrast ratio: 700:1 (typical)

Viewing angle: +/–178 degrees (typical)

Response time: 25 ms

Brightness: 300 cd/m2 (5 points average)

10-point multi touch surface

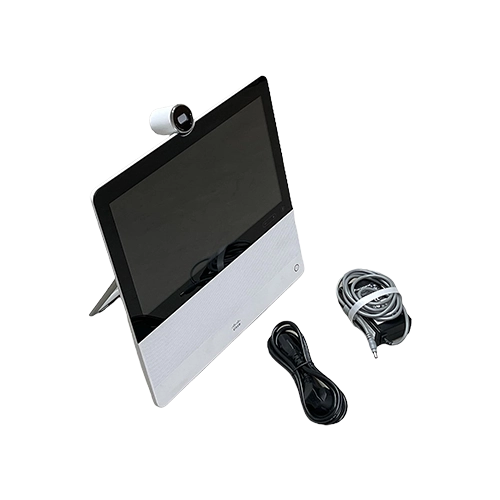

• The stand is retractable in the upright position for easy transportation
• You can tilt the screen from an angle of 5° to 70° from the vertical
• You can tilt the camera from an angle of –5° to 70° from the display
• The main I/O panel includes a flip cover to obscure connections

• Audio system playback:
• Frequency range: 100 Hz to 15 kHz, +/–3 dB
• Maximum level: 90 dB at 1w/1m
• The video conferencing system optimally tuned and located analog omnidirectional microphone

• 63° horizontal field of view
• 38° vertical field of view
• Resolution: 1080p30
• F 2.2
• Privacy shutter

• High-Definition Multimedia Interface (HDMI) type A port for PC or Mac video input
• HDMI type A port output (not in use)
• High-speed USB 2.0 ports:
  • Three standard type A ports enable wired or wireless (dongle) headsets and handset use
  • Side-mounted USB port that provides high-current (2A) charging; the two rear-mounted ports each provide 500 mA charging
  • One Micro-B USB port (serial port for diagnostic and service use)
• Micro Secure Digital Standard Capacity (HDSC) slot for nonvolatile storage of applications or file expansion up to 32 GB (Standard-Definition [SD] card speed Class 4 or later recommended)
• One 3.5-mm analog headphone and headset jack
