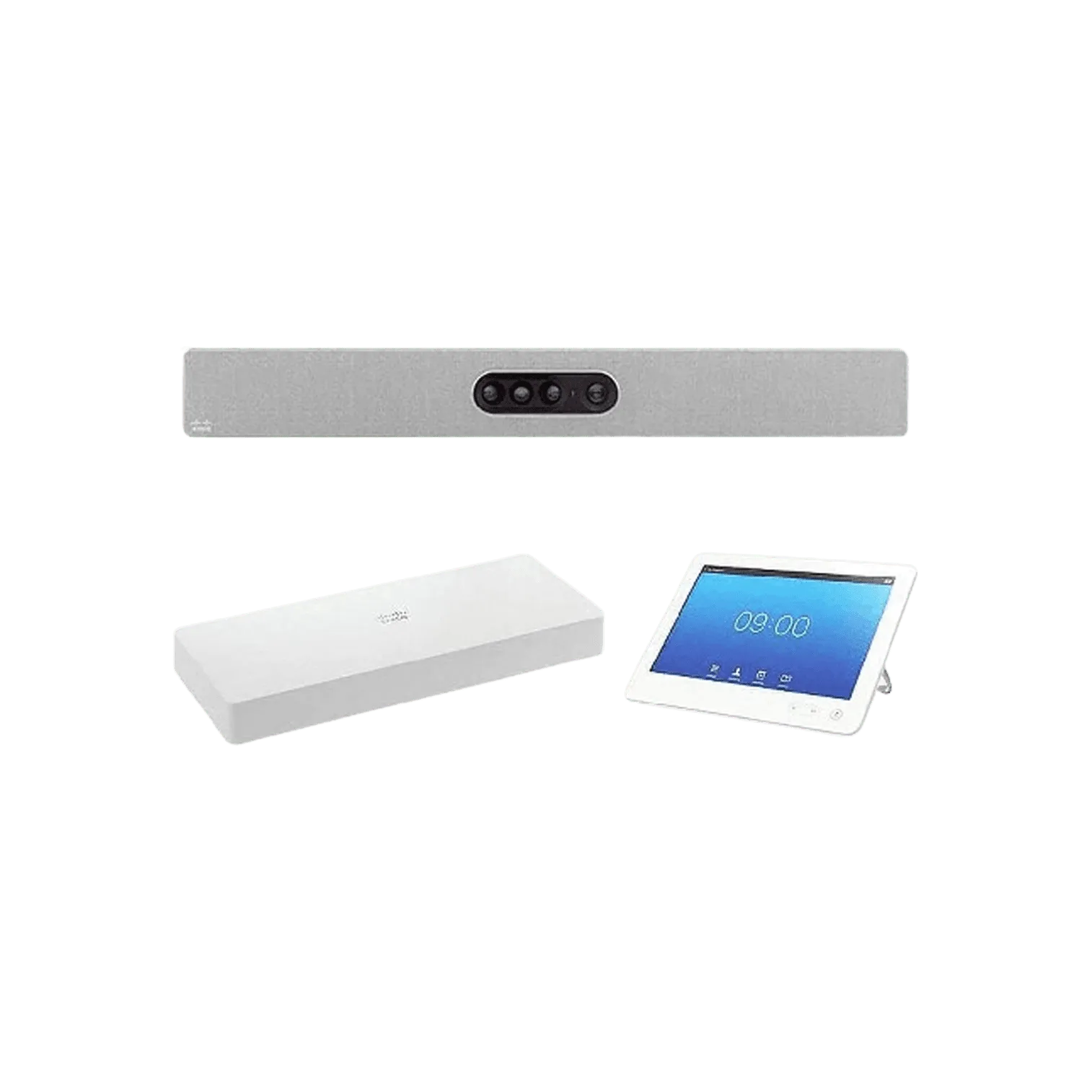

Cisco Spark Room Kit Plus delivers the unmatched video and audio experience customers have come to expect from Cisco CS-KITPLUS-K9. In addition, advanced capabilities enable even smarter meetings, smarter presentation capabilities, and smarter room and device integrations – further removing the barriers to usage and deployment of video in medium to large-sized rooms. The Room Kit Plus – comprising a powerful codec and a quad-camera bar with integrated speakers and microphones – is ideal for rooms that seat up to 14 people. It offers sophisticated camera technologies that bring speaker-tracking and auto-framing capabilities to medium to large-sized rooms. The product is rich in functionality and experience but is priced and designed to be easily scalable to all of your conference rooms and spaces – whether registered on the premises or to Cisco Spark through the Cisco Collaboration Cloud.
- Product Description Cisco Webex Room Kit Plus – GPL – video conferencing kit
- Device Type Video conferencing kit
- VoIP ProtocolsH.323
- CodecH.264, G.711, G.722, G.729, G.722.1, AAC-LD, Opus
- Digital Signaling ProtocolH.323, SIP, H.460.18, H.460.19, BFCP
- Data Compression ProtocolH.264
- Features DTMF decoding
- Video Input Digital video camera – HDMI
- Audio Input6 microphones
- Audio Output Speaker(s)
- Input Device10″ touchscreen
- Networking Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac
- Power AC 120/230 V (50/60 Hz)
- Pricing Type Remanufactured
Place an order, please contact your local Cisco representative
| Product Name |
Part Number |
Compliance Model Number |
| Webex Room Kit Plus – Subscription pricing (MSRP*)
● Webex Codec Plus ● Webex Quad Camera ● Webex Room Navigator Control Unit ● Webex Service |
CS-KITPLUS-MSRP-K9
CS-CODEC-PLUS+ CS-QUADCAM+ CS-T10-TS+ A-SPK-SH-RMK (A-SPK-SH) |
TTC7-25 TTC8-10 TTC5-15 |
| Webex Room Kit Plus (GPL**)
● Webex Codec Plus ● Webex Quad Camera ● Webex Room Navigator Control Unit |
CS-KITPLUS-K9
CS-CODEC-PLUS+ CS-QUADCAM+ CS-T10-TS+ |
TTC7-25 TTC8-10 TTC5-15 |
| Webex Room Kit Plus – NO RADIO
● Webex Codec Plus – NO RADIO ● Webex Quad Camera ● Webex Room Navigator Control Unit |
CS-KITPLUS-NR-K9
CS-CODEC-PLUS-NR+ CS-QUADCAM+ CS-T10-TS+ |
TTC7-25 TTC8-10 TTC5-15 |
| Webex Room Kit Plus – NO CRYPTO
● Webex Codec Plus ● Webex Quad Camera ● Webex Room Navigator Control Unit |
CS-KITPLUS-K7
CS-CODEC-PL-NR-K7+ CS-QUADCAM+ CS-T10-TS+ |
TTC7-25 TTC8-10 TTC5-15 |
| Webex Room Kit Plus – TAA compliant
● Webex Codec Plus – TAA, NO RADIO, or ● Webex Codec Plus – TAA ● Webex Quad Camera ● Webex Room Navigator Control Unit |
CS-KITPLUS-K9++
CS-CODEC-PLUS-NR++ CS-CODEC-PLUS++ CS-QUADCAM+ CS-T10-TS+ |
TTC7-25 TTC7-25 TTC8-10 TTC5-15 |
| Options |
| Cisco Table Microphone with 3.5mm plug | CS-MIC-TABLE-J= |
| Extension cable for Table Microphone | CAB-MIC-EXT-J= |
| Cisco Ceiling Microphone | CTS-MIC-CLNG-G2 |
| Shielded cable for Ceiling Mic (non-plenum rated) | CAB-ETHRSHLD-10M |
| Wall Mount Kit for Codec Medium | CS-KITPLUS-WMK |
| 8 m HDMI 2.0 certified cable | CAB-PRES-2HDMI-GR |
| HDMI 2.0 cable 1.5 m/5 ft, gray | CAB-2HDMI-1.5M-GR |
| HDMI 2.0 cable 3 m/10 ft, gray | CAB-2HDMI-3M-GR |
| Ethernet cable 1.5 m/5 ft, gray | CAB-ETH-1.5M-GR |
| Ethernet cable 3 m/10 ft, gray | CAB-ETH-3M-GR |
| Ethernet cable 5 m/16.4 ft, gray | CAB-ETH-5M-GR |
| Software options – ordered separately |
| Remote Monitoring | L-ROOM-RM (L-TP-RM) |
| MultiSite (embedded multipoint) | L-KITPLUS-MS (L-ROOM-PAK) |
| Spares |
| Webex Codec Plus | CS-CODEC-PLUS= | TTC7-25 |
| Webex Codec Plus – no radio, no crypto | CS-CODEC-PL-NR-K7= | TTC7-25 |
| Webex Codec Plus – no radio | CS-CODEC-PLUS-NR= | TTC7-25 |

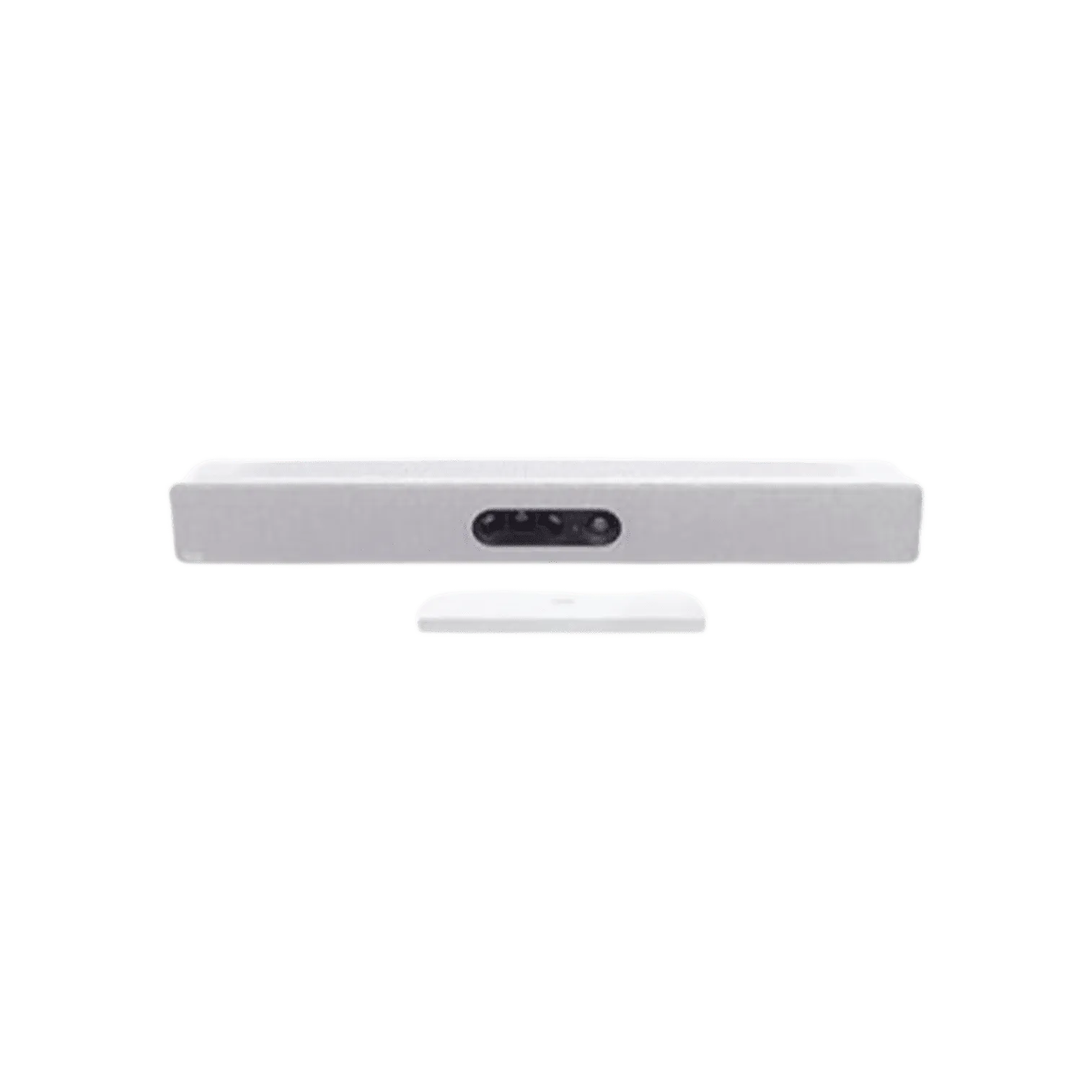

| Webex Quad Camera | CS-QUADCAM= | TTC8-10 |
| Webex PTZ 4K Camera | CS-CAM-PTZ4K= | EVI-X200C |
| Webex Precision 60 Camera | CTS-CAM-P60= | TTC8-07 |
| Power supply 12VDC 70W | PSU-12VDC-70W-GR= |
