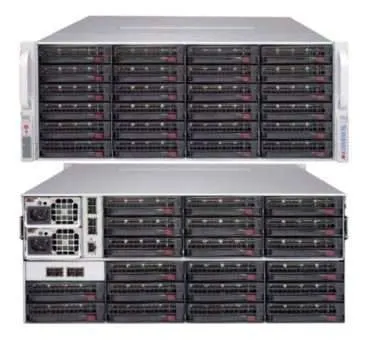

Name: Buy High Performance CSE-847E2C-R1K28JBOD SAS Drive
Price: 4860.00 USD
Availability: InStock


Drive Bays

44 x 3.5″ hot-swap HDD bays for JBOD solution


Qualified SAS Controllers

AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller


Backplane

24-port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD 20-port 4U (SC847E2C JBOD) SAS3 12Gbps dual-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD


Front Panel

Buttons	Power On/Off button System Reset Button Unit Identification (UID) button
LEDs	1 Network Activity LEDs Fan Fail/System Over Heat LED Power Status LED Power Fail LED Unit Identification (UID) LED

Operating Environment (System)
Operating Temperature Range	5°C – 35°C (41°F – 95°F)
Non-Operating Temperature Range	-40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range	8% – 90% (non-condensing)
Non Operating Relative Humidity Range	5% – 95% (non-condensing)

Power Supply
1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm
Power Efficiency	96%
Total Output Power and Input	1200W with Input 200 – 240Vac 1000W with Input 100 – 127Vac 1200W with Input 200 – 240Vdc
AC Input Frequency	50-60Hz
Dimensions (L x W x H)	336 x 76 x 40 mm
Output Type	Backplanes (gold finger)
+12V	Max: 100A / Min: 0A (200Vdc – 240Vdc) Max: 100A / Min: 0A (200Vac – 240Vac) Max: 83A / Min: 0A (100Vac – 127Vac)
+5Vsb	Max: 4A / Min: 0A
Power Distributor	PDB-PT847-8824 O/P: 12V/135 +5V Max: 100A +3.3V Max: 30A -12V Max: 0.6A

Drive Bays
44x 3.5″ hot-swap HDD bay for JBOD solution

Qualified SAS Controllers
AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter AOC-SAS3-9500-8E: SAS 12Gb/s PCIe 4.0 8-Port Host Bus Adapter AOC-SAS3-9500-16E: SAS 12Gb/s PCIe 4.0 16-Port Host Bus Adapter AOC-SAS3-9580-8I8E: SAS 12Gb/s PCIe 4.0 8-Port MegaRAID Controller

Backplane
24-Port 4U SAS3 12Gbps dual-expander backplane, support up to 24x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature) 20-Port 4U (SC847E2C JBOD) SAS3 12Gbps dual-expander backplane (rear), support up to 20x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)

Front Panel
Button	Power On/Off button System Reset button Unit Identification (UID) button
LED	Power status LED 1 Network activity LEDs Power Fail LED Unit Identification (UID) LED Fan Fail/System Over Heat LED

Regulatory (Power Supply)
Power Supply Safety / EMC	BSMI CCC CE/EMC FCC class A UL/CB UL/CUL
