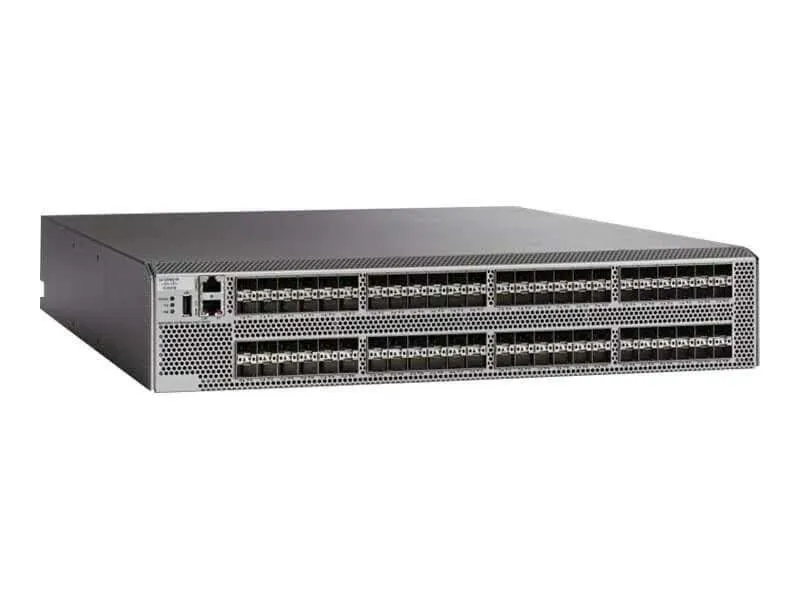

DS-C9396S-48EK9

CISCO DS-C9396S-48EK9 Mds 9396s Switch With 48 Active Ports :

Key Features :

• Device Type : Switch – 48 Ports – Managed
• Enclosure Type : Rack-mountable 2u
• Subtype : Fibre Channel
• Ports : 48 X 16gb Fibre Channel
• Fibre Channel : Fc-da, Fc-fla, Fc-fs, Fc-gs-3, Fc-gs-4, Fc-mi, Fc-ph, Fc-ph-2, Fc-ph-3, Fc-pi, Fc-plda, Fc-sb-2, Fc-sb-3, Fc-sw-2, Fc-sw-3, Fc-tape, Fc-vi, Fc-sp, Fcp-4, Fc-bb-2, Fcp, Fcp-2, Fc-pi-2, Fc-bb-5, Fc-bb-3, Fc-fs-2, Fc-gs-5, Fc-sw-4, Fcp-3, Fc-ls, Fc-mi-2, Fc-pi-4, Fc-fs-3, Fc-gs-6, Fc-pi-3, Fc-sw-5, Fc-bb-4, Fc-ifr, Fais, Fais-2, Fc-pi-5, Fc-ls-2, Fc-sp-2, Fc-sb-4, Fc-da-2, Fc-mi-3, Fc-msqs, Fc-bb-6, Fc-sb-5
• Remote Management Protocol : Rmon, Snmp 3, Smi-s, Ssh-2, Cli
• Features : Ports On Demand, Access Control List (acl) Support, Quality Of Service (qos), Remote Switch Port Analyzer (rspan), Registered State Change Notification (rscn) Support, Port Exhaust

  Expansion / Connectivity :
  Interfaces

• 1 X 1000base-t Rj-45 Management
• 1 X Management (rs-232)
• 1 X Usb
• 48 X 16gb Fibre Channel Sfp+
• 48 X 16gb Fibre Channel Sfp+ Ports On Demand

  Power :

• Power Device : Internal Power Supply – Hot-plug
• Installed Qty : 2 (installed) / 2 (max)
• Power Redundancy : Yes
• Power Redundancy Scheme : 1+1
• Power Provided : 1200 Watt
• Voltage Required : Ac 100/230 V (50/60 Hz)
• Power Consumption Operational : 700 Watt
