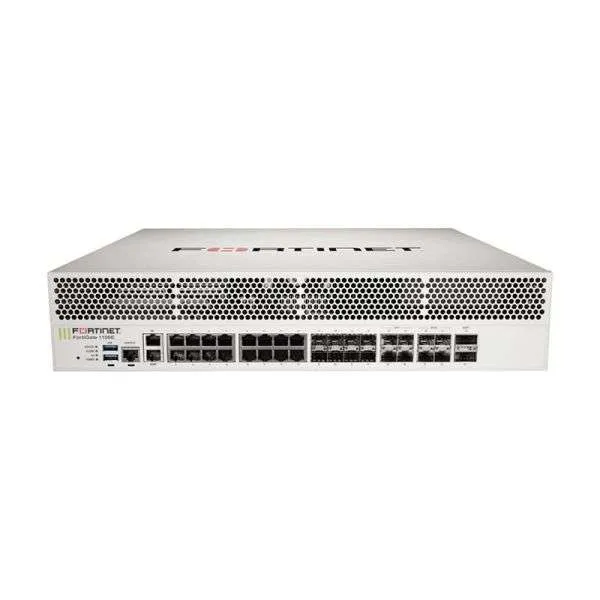

FG-1101E
FG-1101E
$14,250.00
The FortiGate FG-1101E series provides powerful threat safety and SSL review for large organizations and service providers. It’s flexible and can be set up at the edge of the enterprise or cloud, in the heart of the data center, or within internal sections. With multiple speedy interfaces, a wealth of ports, excellent security effectiveness, and high-speed data flow, the 1100E series ensures your network remains connected and protected.
Quick Spec
| Product Code | FG-1101E |
| Hardware Accelerated 40 GE QSFP+ Slots | 2 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 4 |
| Hardware Accelerated 10 GE SFP+ Slots / GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Ports | 16 |
| GE RJ45 Management / HA Ports | 2 |
| USB Ports (Client / Server) | 1 / 2 |
| Console Port | 1 |
| Onboard Storage | 2x 480 GB SSD |
| Included Transceivers | 2x SFP (SX 1 GE) |
| Height x Width x Length (inches) | 3.5 x 17.44 x 17.62 |
| Height x Width x Length (mm) | 88.9 x 443 x 447.4 |
| Weight | 25.4 lbs (11.55 kg) |
| Form Factor (supports EIA/ non-EIA standards | Rack Mount, 2 RU |
| AC Power Input | 100–240V AC, 50/60 Hz |
FG-1101E Specification
FG-1101E Specification |
|
| Interfaces and Modules | |
| Hardware Accelerated 40 GE QSFP+ Slots | 2 |
| Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 4 |
| Hardware Accelerated 10 GE SFP+ Slots / GE SFP Slots | 4 |
| Hardware Accelerated GE SFP Slots | 8 |
| Hardware Accelerated GE RJ45 Ports | 16 |
| GE RJ45 Management / HA Ports | 2 |
| USB Ports (Client / Server) | 1 / 2 |
| Console Port | 1 |
| Onboard Storage | 2x 480 GB SSD |
| Included Transceivers | 2x SFP (SX 1 GE) |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 12.5 Gbps |
| NGFW Throughput 2, 4 | 9.8 Gbps |
| Threat Protection Throughput 2, 5 | 7.11 Gbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP) | 80 / 80 / 45 Gbps |
| IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 80 / 80 / 45 Gbps |
| Firewall Latency (64 byte, UDP) | 2.76 μs |
| Firewall Throughput (Packet per Second) | 67.5 Mpps |
| Concurrent Sessions (TCP) | 8 Million |
| New Sessions/Second (TCP) | 500,000 |
| Firewall Policies | 100,000 |
| IPsec VPN Throughput (512 byte) 1 | 48 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 20,000 |
| Client-to-Gateway IPsec VPN Tunnels | 100,000 |
| SSL-VPN Throughput | 8.4 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 10,000 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 10 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 6,500 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 780,000 |
| Application Control Throughput (HTTP 64K) 2 | 26 Gbps |
| CAPWAP Throughput (HTTP 64K) | 43 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 250 |
| Maximum Number of FortiSwitches Supported | 196 |
| Maximum Number of FortiAPs (Total / Tunnel) | 4,096 / 2,048 |
| Maximum Number of FortiTokens | 20,000 |
| High Availability Configurations | Active-Active, Active-Passive, Clustering |
| Dimensions and Power | |
| Height x Width x Length (inches) | 3.5 x 17.44 x 17.62 |
| Height x Width x Length (mm) | 88.9 x 443 x 447.4 |
| Weight | 25.4 lbs (11.55 kg) |
| Form Factor (supports EIA/ non-EIA standards | Rack Mount, 2 RU |
| AC Power Input | 100–240V AC, 50/60 Hz |
| Power Consumption (Average / Maximum) | 222 W / 346 W |
| AC Current (Maximum) | 6A@120V, 3A@240V |
| Heat Dissipation | 1,181 BTU/h |
| DC Power Input (FG-1100E-DC) | — |
| DC Current (Maximum) | — |
| Redundant Power Supplies | Yes, Hot swappable |
| Operating Environment and Certifications | |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 66.7 dBA |
| Forced Airflow | Front to Back |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6 |
