FPR4145-NGFW-K9
FPR4145-NGFW-K9
$51,250.00

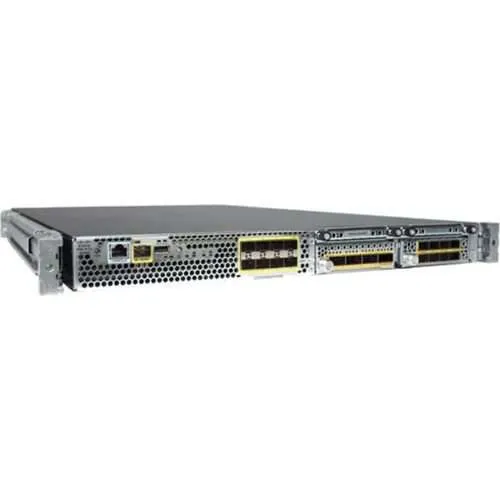

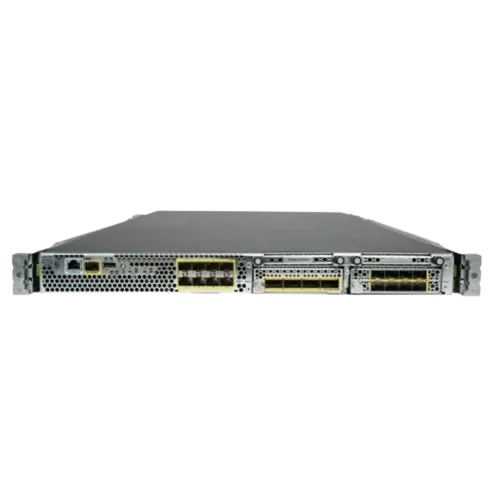

The FPR4145-NGFW-K9 stands for Cisco Firepower 4100 NGFW Appliance, 1RU, 1 x Network Module Bays. The Cisco Firepower 2100 Series is a family of four threat-focused NGFW security platforms that deliver business resiliency through better threat defense. It offers exceptional sustained performance when advanced threat functions are enabled. These platforms uniquely incorporate an innovative dual multicore CPU architecture that optimizes firewall, cryptographic, and threat inspection functions simultaneously. The FPR4145-NGFW-K9 series’ firewall throughput range addresses use cases from the Internet edge to the data center. Network Equipment Building Standards (NEBS) – compliance is supported by the Cisco Firepower 4125 Series platform.
Cisco Secure Firewall 4100 Model
| Model | Firewall | NGFW | IPS | Interfaces | Optional Interfaces |
| FPR-4112 | 40G | 19G | 19G | 8 x SFP+ on-chassis | 2 x NM’s: 1/10/40/100G, FTW |
| FPR-4115 | 80G | 33G | 33G | 8 x SFP+ on-chassis | 2 x NM’s: 1/10/40/100G, FTW |
| FPR-4125 | 80G | 45G | 45G | 8 x SFP+ on-chassis | 2 x NM’s: 1/10/40/100G, FTW |
| FPR-4145 | 80G | 53G | 55G | 8 x SFP+ on-chassis | 2 x NM’s: 1/10/40/100G, FTW |
Cisco Secure Firewall 4100 Specifications and Features
| Features | 4112 | 4115 | 4125 | 4145 |
| Throughput: FW + AVC (1024B) | 19 Gbps | 33 Gbps | 45 Gbps | 53 Gbps |
| Throughput: FW + AVC + IPS (1024B) | 19 Gbps | 33 Gbps | 45 Gbps | 53 Gbps |
| Maximum concurrent sessions, with AVC | 10 million | 15 million | 25 million | 30 million |
| Maximum new connections per second, with AVC | 98K | 210K | 269K | 365K |
| TLS (Hardware Decryption)1 | 4.5 Gbps | 6.5 Gbps | 8.5 Gbps | 10 Gbps |
| Throughput: NGIPS (1024B) | 19 Gbps | 33 Gbps | 45 Gbps | 55 Gbps |
| IPSec VPN Throughput (1024B TCP w/Fast path) |
8.5 Gbps | 12.5 Gbps | 19 Gbps | 24 Gbps |
| Maximum VPN Peers | 10,000 | 15,000 | 20,000 | 20,000 |
| Multi-Instance Capable | Yes |
| Centralized management | Centralized configuration, logging, monitoring, and reporting are performed by the Management Center or alternatively in the cloud with Cisco Defense Orchestrator |
| Application Visibility and Control (AVC) |
Standard, supporting more than 6000 applications, as well as geo locations, users, and websites |
| AVC: Open App ID support for custom, open source, application detectors | Standard |
| Cisco Security Intelligence | Standard, with IP, URL, and DNS threat intelligence |
| Cisco Secure IPS License | Available; can passively detect endpoints and infrastructure for threat correlation and Indicators of Compromise (IoC) intelligence |
| Cisco Malware Defense for Networks | Available; enables detection, blocking, tracking, analysis, and containment of targeted and persistent malware, addressing the attack continuum both during and after attacks. Integrated threat correlation with Cisco Secure Endpoint is also optionally available |
| Cisco Malware Analytics sandboxing | Available |
| URL filtering: number of categories |
More than 120 |
| URL filtering: number of URLs categorized |
More than 280 million |
| Automated threat feed and IPS signature updates | Yes |
| Third-party and open-source ecosystem | Open API for integrations with third-party products; Snort® and Open App ID community resources for new and specific threats |
| High availability | Cisco Secure Firewall 4100 Series with Firepower Threat Defense in HA configuration supports Active/Standby setup. This is available at the appliance level or logical instances defined on two different appliances. Please check latest High Availability Configuration Guide chapter for guidelines and best practices. |
| Clustering | Cisco Secure Firewall 4100 Series with Firepower Threat Defense allows clustering of up to 16 appliances or up to 16 instances across different appliances running Multi Instance feature. Clustering allows increasing overall performance and scale. Please check latest Clustering Configuration Guide chapter for guidelines and best practices. |
| Cisco Trust Anchor Technologies | Cisco Secure Firewall 4100 Series platforms include Trust Anchor Technologies for supply chain and software image assurance |
| Multi-Instance Capable | Yes |
USB: Yes
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Network Standard: 10GBase-X
I/O Expansions
Number of Total Expansion Slots: 10
Expansion Slot Type:
- SFP+
- I/O Module
Number of SFP+ Slots: 8
Management & Protocols
Manageable: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.8″
Width: 16.9″
Depth: 29.7″
Weight (Approximate): 36 lb
Miscellaneous
Package Contents:
- Firepower 4145 Network Security/Firewall Appliance
- Mount Rails
ASA Performance and Capabilities on Cisco Secure Firewall 4100 Appliances
| Features |
4112 |
4115 |
4125 |
4145 |
| Stateful inspection firewall throughput1 | 40 Gbps | 80 Gbps | 80 Gbps | 80 Gbps |
| Stateful inspection firewall throughput (multiprotocol)2 | 30 Gbps | 40 Gbps | 45 Gbps | 50 Gbps |
| Concurrent firewall connections | 10 million | 15 million | 25 million | 40 million |
| Firewall latency (UDP 64B microseconds) |
3.5 | 3.5 | 3.5 | 3.5 |
| New connections per second | 400,000 | 848K | 1.1 million | 1.5 million |
| IPsec VPN throughput (450B UDP L2L test) |
9 Gbps | 15 Gbps | 19 Gbps | 23 Gbps |
| Maximum VPN Peers | 10,000 | 15,000 | 20,000 | 20,000 |
| Security contexts (included; maximum) |
10; 250 | 10; 250 | 10; 250 | 10; 250 |
Cisco Secure Firewall 4100 Hardware Specifications
| Features | 4112 | 4115 | 4125 | 4145 |
| Dimensions (H x W x D) | 1.75 x 16.89 x 29.7 in. (4.4 x 42.9 x 75.4 cm) |
| Form factor (rack units) | 1RU |
| Supervisor | Cisco Secure Firewall 4000 Supervisor with 8 x 10 Gigabit Ethernet ports and 2 Network Module (NM) slots for I/O expansion |
| Network modules | ● 2 x 100 Gigabit Ethernet QSFP28 Network Module
● 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP+) network modules ◦ 8 x 1 Gbps Fiber or 4 x 1Gbps Copper SFP Network Module ● 4 x 40 Gigabit Ethernet Quad SFP+ network modules ● 8-port 1Gbps copper, FTW (fail to wire) Network Module ◦ Ports that are not configured as FTW can be used as regular 1 Gb copper ports ● 6-port 1 Gbps SX Fiber FTW (fail to wire) Network Module ● 6-port 10Gbps SR Fiber FTW (fail to wire) Network Module ● 6-port 10Gbps LR Fiber FTW (fail to wire) Network Module ● 2-port 40G SR FTW (fail to wire) Network Module ● 2-port 100Gbps Network Module |
| Maximum number of interfaces | Up to 4 x 100 Gigabit Ethernet (QSFP28) interfaces, 24 x 10 Gigabit Ethernet (SFP+) interfaces; up to 8 x 40 Gigabit Ethernet (QSFP+) interfaces with 2 network modules; up to 24 x 1 Gigabit Ethernet ports(SFP) with network modules and fixed ports |
| Integrated network management ports | 1 Gigabit Ethernet SFP port
Supports 1Gbps fiber or copper optical modules |
| Serial port | 1 x RJ-45 console |
| USB | 1 x USB 2.0 |
| Storage | 400 GB | 400 GB | 800 GB | 800 GB |
| Configuration | Single 1100W AC, dual optional. Single/dual 950W DC optional1, 2 | Single 1100W AC, dual optional. Single/dual 950W DC optional1, 2 | Dual 1100W AC1 | Dual 1100W AC1 |
| AC input voltage | 100 to 240V AC |
| AC maximum input current | 13A |
| AC maximum output power | 1100W |
| AC frequency | 50 to 60 Hz |
| AC efficiency | >92% at 50% load |
| DC input voltage | -40V to -60VDC |
| DC maximum input current | 27A |
| DC maximum output power | 950W |
| DC efficiency | >92.5% at 50% load |
| Redundancy | 1+1 |
| Fans | 6 hot-swappable fans |
| Noise | Typical 63 dBA, max is 74 dBA |
| Rack mountable | Yes, mount rails included (4-post EIA-310-D rack) |
| Weight | 4112/4115/4125/4145: 39.4 lb (17.87 kg) 2 x power supplies, 2 x NMs, 6 x fans; 31.4 lb (14.24 kg) no power supplies, no NMs, no fans |
| Temperature: operating | 32 to 104°F (0 to 40°C) |
32 to 104°F (0 to 40°C) |
32 to 104°F
(0 to 40°C) or NEBS operation (see below) |
32 to 104°F
(0 to 40°C), at sea level |
| Temperature: nonoperating | -40 to 149°F (-40 to 65°C) |
| Humidity: operating | 5 to 95% noncondensing |
| Humidity: nonoperating | 5 to 95% noncondensing |
| Altitude: operating | 10,000 ft (max) |
| Altitude: nonoperating | 40,000 ft (max) |
| NEBS operation (FPR 4125 only) | Operating altitude: 0 to 13,000 ft (3960 m)
Operating temperature: Long term: 0 to 45°C, up to 6,000 ft (1829 m) Long term: 0 to 35°C, 6,000 to 13,000 ft (1829 to 3964 m) Short term: -5 to 50°C, up to 6,000 ft (1829 m) |
