FS-424E-POE

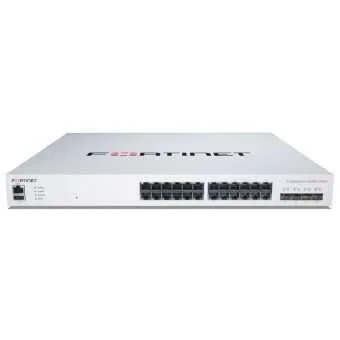

•  Product DescriptionFortinet FortiSwitch 424e – switch – 24 ports – managed – rack-mountable
•  Device TypeSwitch – 24 ports – L3 – managed
•  Enclosure TypeRack-mountable 1U
•  Subtype10 Gigabit Ethernet
•  Ports24 x 10/100/1000 + 4 x 1 Gigabit / 10 Gigabit SFP+
•  PerformanceSwitching throughput: 128 Gbps ¦ Packets per second: 204 Mpps ¦ Latency: 1 µs
•  CapacityVirtual interfaces (VLANs): 4000 ¦ Link aggregation groups: 8
•  MAC Address Table Size16K entries
•  Jumbo Frame SupportYes
•  Routing ProtocolRIP-2, VRRP, OSPFv2, Bidirectional Forwarding Detection (BFD)
•  Remote Management ProtocolSNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
•  FeaturesFlow control, IGMP snooping, port mirroring, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Jumbo Frames support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), DHCP client, Management Information Base (MIB), 2MB packet buffer, tagged VLAN, Type of Service (ToS), DiffServ Code Point (DSCP) support, Telnet server
•  Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP)
•  PowerAC 120/230 V (50/60 Hz)
•  Power RedundancyYes
•  Dimensions (WxDxH)17.3 in x 9.8 in x 1.7 in
•  Weight6.83 lbs

Expansion / Connectivity :
Interfaces :

• 24 X 1000base-t Rj-45
• 4 X 1/10gbit Lan Sfp+ Uplink
• 1 X Management Rj-45
• 1 X Usb 2.0 Type A

Power :

• Power Device : Internal Power Supply
• Voltage Required : Ac 120/230 V (50/60 Hz)
