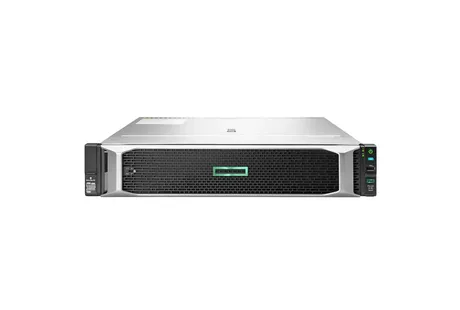

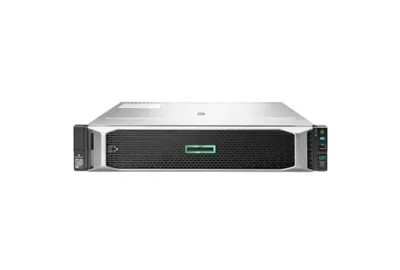

HPE P56965-B21 Overview
The HPE P56965-B21 ProLiant DL380 Gen10 Server as a authoritative competitor, boasting inspiring specifications that provide to the demands of modern computing. At the heart of the HPE P56965 B21 is the Intel Xeon 5218R processor, watch at an remarkable 2.1GHz.
General Information about the HPE P56965-B21
- Manufacturer: HPE
- Model Number or SKU# P56965 B21
- Product Type: Server
- Server Type: ProLiant Dl380
| Type | Server |
| Product Form Factor | Rack-mountable – 2u |
| Built-in Devices | Led Panel |
| Hot-swap Bays Qty | 8 |
| Server Scalability | 2-way |
| Region | USA, Australia |
Processor / Chipset
| CPU | Intel Xeon Gold 5218r |
| Clock Speed | 2.1ghz |
| Max Turbo Speed | 4ghz |
| Number Of Cores | 20-core |
| CPU Qty | 1 |
| Max Cpu Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Hyper-threading Technology, Intel Turbo Boost Technology 2 |
| Chipset Type | Intel C621 |
Cache Memory
| Installed Size | L3 Cache – 27.5mb |
| Cache Per Processor | 27.5 Mb |
hard Drive:
type: No Hdd
storage Controller:
type: 1 X Raid
controller Interface Type: Sas 12gb/s
storage Controller Name: Broadcom Megaraid Mr416i-p
channel Qty: 16
buffer Size: 4gb
optical Storage:
type: No Optical Drive
monitor:
monitor Type: None
graphics Controller:
video Memory: 16mb
video Interfaces: Vga
networking:
ethernet Ports: 2 X 10 Gigabit Ethernet
ethernet Controller: Broadcom Bcm57414
data Link Protocol: 10 Gigabit Ethernet
remote Management Protocol: Snmp 3, Ipmi 2.0, Smash Clp
remote Management Controller: Integrated Lights-out 5
features: Wake On Lan (wol), Pxe Support
expansion / Connectivity:
bays: 1 (total) / 1 (free) X External Universal Media Bay, 8 (total) / 8 (free) X Hot-swap 2.5 Sff
slots: 1 (total) / 1 (free) X Flexiblelom, 1 (total) / 1 (free) X Pcie 3.0 X16 – Half-length, Full-height, 2 (total) / 2 (free) X Pcie 3.0 X8 – Half-length, Full-height, 1 (total) / 1 (free) X Microsd Card (internal)
interfaces: 1 X HPE Ilo – Type A (1 In Front), 5 X Usb 3.0 (1 Front, 2 Rear, 2 Internal), 1 X HPE Ilo – Rj-45 (1 Rear), 2 X Lan (10gigabit Ethernet) – Sfp28 (2 Rear), 1 X Vga (1 Rear)
miscellaneous:
included Accessories: 4 Standard Fans, Cpu Standard Heatsink, HPE Easy Install Rails With Cma
compliant Standards: Aes, Fips 140-2, Weee, Triple Des, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Redfish Api, Uefi, Acpi 6.3, Smbios 3.2
power:
device Type: Power Supply – Hot-plug
power Redundancy: Optional
power Redundancy Scheme: 1+1 (with Optional Power Supply)
installed Qty: 1
max Supported Qty: 2
voltage Required: Ac 100-240v (50/60 Hz)
power Provided: 800 Watt
80 Plus Certification: 80 Plus Platinum
environmental Standards:
energy Star Certified: Yes
energy Star Version: 3.0
dimensions & Weight:
width: 17.5 In
depth: 26.7 In
height: 3.4 In
weight: 32.54 Lbs
