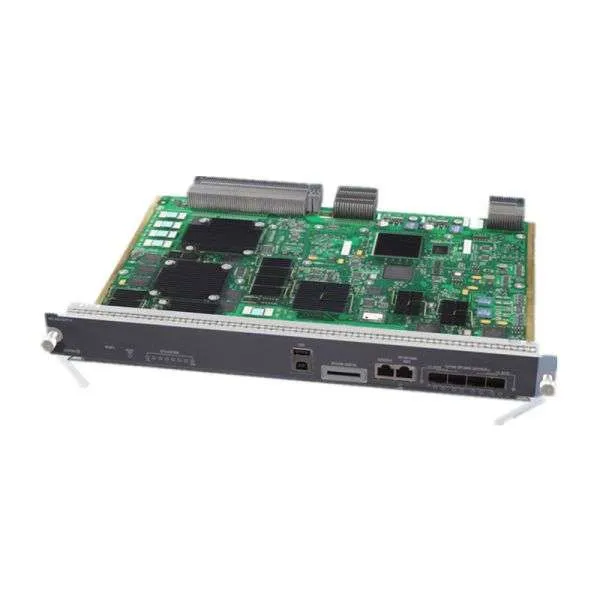

WS-X45-SUP7-E
WS-X45-SUP7-E
Original price was: $700.00.$450.00Current price is: $450.00.
WS-X45-SUP7-E, the Cisco Catalyst 4500E supervisor engine 7-E, is the leading borderless networks access and aggregation supervisor engine for the Cisco Catalyst 4500E series. Supervisor Engine7-E delivers high-performance aggregation deployments with increasing Gigabit Ethernet and 10G Ethernet fiber density along with hardware capabilities to support enterprise-level aggregation functions.
| Product Code | WS-X45-SUP7-E |
| Centralized switching capacity | 848 Gbps |
| Per-slot switching capacity | 48 Gbps |
| Throughput | 250 Mpps for IPv4
125 Mpps for IPv6 250 Mpps for L2 Bridging |
| IPv4 routing entries | 256,000 |
| IPv6 routing entries | 128,000 |
| Multicast routes | 16,000 (available with Cisco IOS XE 3.1.0 SG)
32,000 (Available with Cisco IOS XE 3.2.0 SG or later) |
| CPU | Dual core; 1.5 GHz |
| CPU queues | 64 |
| Synchronous dynamic RAM (SDRAM) | 2 GB upgradable to 4 GB |
| Nonvolatile RAM (NVRAM) | 1 GB |
| Security and QoS hardware entries | 128,000 |
| Cisco Network Admission Control (NAC) andDynamic
Host Configuration Protocol (DHCP) snooping entries |
12,000 |
| MAC addresses | 55,000 |
| Active VLANs | 4,094 |
| Address Resolution Protocol (ARP) entries | 47,000 |
| Spanning Tree Protocol instances | 10,000 |
| Switched virtual interfaces (SVIs) | 4,094 |
| Switched Port Analyzer (SPAN) | Maximum of 8 sessions: ingress or egress |
