813195-B21

813195-B21

Planned for a vast range of configuration and deployment selection, the HPE ProLiant BL460c Gen9 Server Blade offers the flexibility to optimize your core IT applications with right-sized storage for the right workload for a lower TCO. All of this is deal with by HPE One View, the meet management platform that accelerates IT service delivery and enhance business performance. The HPE ProLiant BL460c Gen9 Server Blade 813195-B21 now offers Intel® Xeon® E5-2600 v4 processors with up to 21% bin-to-bin performance gain over the previous generation, plus 2400 MT/s HPE DDR4 Smart Memory of providing up to 33% higher throughput. Additional support includes tiered storage controller options, 12 GB/s SAS, 20 Gb HPE Flexible LOMs, support for M.2, NVMe, and HPE ProLiant Persistent Memory options.

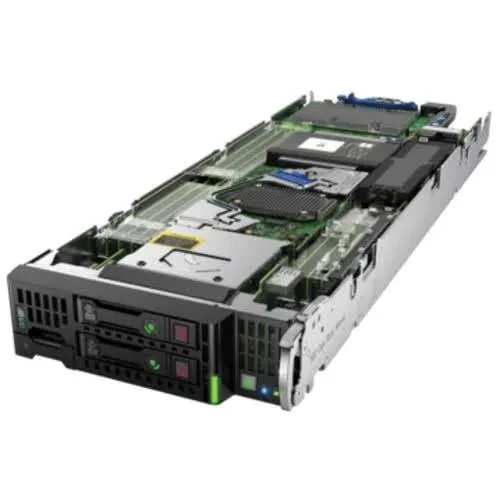

 Appearance of HPE 813195-B21

Product Code 813195-B21
Processor Intel® Xeon® E5-2650 v4 (12 core, 2.2 GHz, 30MB, 105W)
Processor speed 2GHz
Number of processors 2
Processor core available 22
Processor cache 30MB L3
Product dimensions (H x W x D) 18 x 20.37 x 7.11 in
Weight 14 lb

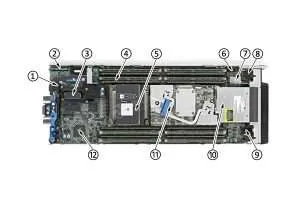

Inside of HPE 813195-B21

HPE 813195-B21
HPE 813195-B21
Flexible LOM adapter
Nand Flash & Micro SD
Mezzanine Slots (x16 PCI 3.0)
Sixteen (16) DDR4 DIMM slots (8 per processor)
Up to two (2) Intel® Xeon® E5-2600 v3 or v4 family processors
HPE BLc 12W Smart Storage Battery connector
USB 3.0 and TPM
Embedded SATA Connector
Solid State Device Connector
Two hot-plug drive bays
HPE Smart Array P244br Controller with 1GB FBWC
iLO Management Engine

Recommended Elements for the HPE 813195-B21

Product number Model Description
726724-B21 726724-B21 – Enterprise Memory for HPE Server HPE 64GB (64GB) Quad Rank x4 DDR4-2133 CAS-15-15-15 Load Reduced Memory Kit
819853-B21 819853-B21 – Processors for HPE Server HPE BL460c Gen9 Intel Xeon E5-2695v4 (2.1GHz/18-core/45MB/120W) Processor Kit
819855-B21 819855-B21 – Processors for HPE Server HPE BL460c Gen9 Intel Xeon E5-2698v4 (2.2GHz/20-core/50MB/135W) Processor Kit
819854-B21 819854-B21 – Processors for HPE Server HPE BL460c Gen9 Intel Xeon E5-2697v4 (2.3GHz/18-core/45MB/145W) Processor Kit
819851-B21 819851-B21 – Processors for HPE Server HPE BL460c Gen9 Intel Xeon E5-2683v4 (2.1GHz/16-core/40MB/120W) Processor Kit
819852-B21 819852-B21 – Processors for HPE Server HPE BL460c Gen9 Intel Xeon E5-2690v4 (2.6GHz/14-core/35MB/135W) Processor Kit

Comparison Between HPE 813195-B21 and HPE 741064-B21

Product Code 813195-B21 741064-B21
Number of processors 2 2
Processor core available 22 10
Processor cache 30MB L3 25MB L3
Processor speed 2GHz 1.7GHz

813195-B21 Specification

HPE 813195-B21 Specification
Processor Intel® Xeon® E5-2650 v4 (12 core, 2.2 GHz, 30MB, 105W)
Processor speed 2.2GHz
Number of processors 2
Processor core available 22
Processor cache 30MB L3
Form factor (fully configured) 8 (c3000)

16 (c7000)

Form factor chassis Blade
Optical drive type None ship standard
Expansion slots (2) Mezzanine cards

For detail descriptions reference the Quick Specs

Included hard drives None ship standard

Supports up to (2) SFF SAS/SATA hot plug drives

Memory type 1R x4 PC4-2400T-R
Memory slots 16 DIMM slots
Memory, maximum 2TB

Using 128 GB DIMMs, planned release in June 2016

Memory, standard 64GB (4x16GB) RDIMM
Network controller 10Gb 536FLB Flex Fabric Adapter 2 Ports per controller
Storage controller (1) Smart Array P244br
Power supply type Enclosure-based
System fan features Enclosure-based
Infrastructure management iLO Management (standard), Intelligent Provisioning (standard), iLO Advanced for Blade System (optional), HP One View Adanced (optional), HP Insight Control (optional)
Product dimensions (H x W x D) 2.18 x 20.37 x 7.11 in
Weight 14 lb



 Visit 813195-B21 Datasheet
