ASR1001
ASR1001
$880.00
The Cisco ASR1001 is support software redundancy, and it is based on a dual-core 2.2GHz processor with 1GB memory, 8GB flash memory, 1 SPA bay, SPA interface processor 10 (SIP10). ASR 1000 series is designed for high-end enterprise, managed services, router reflector and WAN aggregation in order to handle explosive traffic through the network.
| Product Code | Cisco ASR 1001 |
| Rack Height | 1 RU |
| System Bandwidth | 2.5G (default) / 5G (upgrade) |
| Router Processor (RP) | Dual-core 2.2Ghz processor |
| Build-in Gigabit Ethernet port | 4 x SFP ports |
| Redundancy | Software (license purchase separately) |
| SIP and Ethernet line card | Integrated in chassis; not upgradable |
| Embedded hardware-based encryption | up to 1.8-Gbps crypto support throughput |
| Rack-mounting | 19-inch |
| DRAM Memory | 4 GB |
| Flash Memory | 8 GB |
| Shared port adapters | 1 SPA slot |
| External USB flash memory | 1-GB USB flash-memory support |

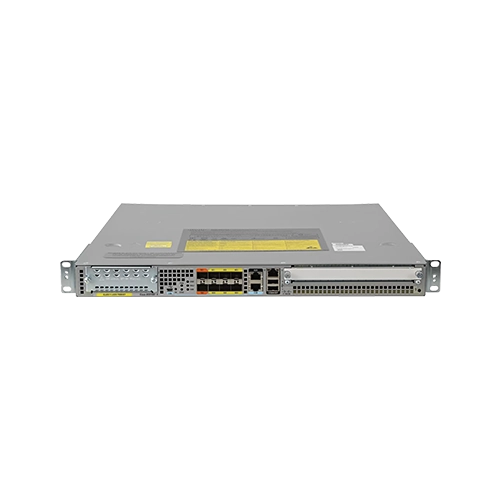

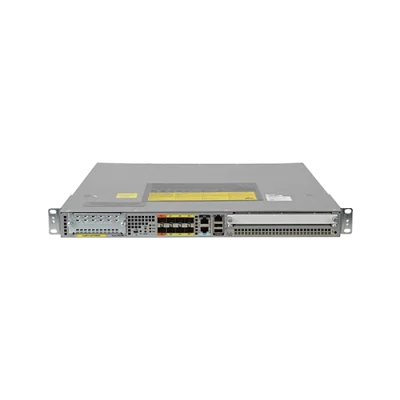

Front Panel of Cisco ASR1001
| ① | PWR—Power LED | ⑦ | AUX—one RS-232 auxiliary port |
| ② | STAT—status LED | ⑧ | GE 2/0 and 0/0 |
| ③ | CRIT LED—critical alarm indicator
MAJ LED—major alarm indicator MIN LED —minor alarm indicator |
⑨ | GE 2/1 and 0/1 |
| ④ | USB port | ⑩ | GE 2/2 and 0/2 |
| ⑤ | MGMT —one RJ-45 10/100/1000 management Ethernet port | ⑪ | GE 2/3 and 0/3 |
| ⑥ | CON—one RS-232 console port | ⑫ | One half-height SPA Bay 1 |
| LEDs | Color | Description |
| PWR
(Power) |
Solid green | All power requirements are within specification. |
| Off | The router is in standby mode. | |
| STAT
(System Status) |
Solid green | Cisco IOSD and other required processes have loaded successfully and are operating. |
| Yellow | ROMMON is running (including a permanent failure of RP software) or the Process Manager has declared a critical RP process (including IOSD) dead. A user can log in to recover. | |
| Red | Occurs during system failure or power-up. | |
| CRIT
(Critical) |
Solid Red | Functions as a critical alarm indicator. The LED is lso a solid red during the boot process. |
| MAJ
(Major) |
Solid Red | Major alarm indicator. |
| MIN
(Minor) |
Amber | Minor alarm indicator. |
recommended configuration.
| Items | Quantity | Descriptions |
| ASR1001-PWR-AC | 2 | Cisco ASR 1000 Series Power Supply ASR1001-PWR-AC Cisco ASR1001 AC Power Supply,spare |
| CAB-ACU-RA | 2 | Power Cord UK, Right Angle |
| SASR1001U-313S | 1 | Cisco ASR 1001 IOS XE UNIVERSAL – NO ENCRYPTION |
| SPA-BLANK | 1 | Bkank Cover for regular SPA |
| M-ASR1K-1001-4GB | 1 | Cisco ASR1001 4GB DRAM |
| L-SLASR1-IPB= | 1 | Cisco ASR1001 License L-SLASR1-IPB= |
Compare to Similar Items
| Models | ASR1001 | ASR1001-X | ASR1002 | ASR1002-X | ASR1004 | ASR1006 | ASR1013 |
| Scalability | 2.5 to 5 Gbps | 2.5 to 20 Gbps | 2.5 to 5, 10, 20Gbps | 5 to 36 Gbps | 10 to 40 Gbps | 10 to 100 Gbps | 40 to 200 Gbps |
| Rack Height | 1U | 1U | 2U | 2U | 4U | 6U | 13U |
| SFP Ports | 4 x 1G | 6 x 1 G | 4 x 1G | 6 x 1G | Optional | Optional | Optional |
| SPA slots | 1 | 1 | 3 | 3 | 8 | 12 | 24 |
| SIP Slots | Integrated | Integrated | Integrated | Integrated | 2 | 3 | 6 |
| ESP Slots | Integrated | Integrated | 1 | Integrated | 1 | 2 | 2 |
| RP Slots | Integrated | Integrated | Integrated | Integrated | 1 | 2 | 2 |
ASR1001 Specification
ASR1001 Specifications |
|
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | Cisco ASR 1001 |
| Product Type | Aggregation Service Router |
| Form Factor | Desktop – modular – 3U |
| Connectivity Technology | Wired |
| System Bandwidth | 2.5G (default) 5G (upgrade) |
| Router Processor | Dual-core 2.2Ghz processor |
| Build-in Gigabit Ethernet port | 4 * SFP ports |
| Redundancy | Software (license purchase separately) |
| SIP and Ethernet line card | Integrated in chassis; not upgradable |
| Embedded hardware-based encryption | up to 1.8-Gbps crypto support throughput |
| Rack-mounting | 19-inch |
| DRAM Memory | 4GB |
| Flash Memory | 8 GB |
| Shared port adapters | 1 SPA slot |
| External USB flash memory | 1-GB USB flash-memory support |
| Cisco QuantumFlow Processor-based platform | Enables advanced services to operate at high speeds without the need for additional hardware or blades. |
| Hardware acceleration | Features like QoS, crypto, and access control lists (ACLs) are processed in hardware. |
| Control and forwarding-plane separation | Ability to scale control plane and data plane independent of each other. |
| expansion Card | ● Cisco 1-port 10GE LAN/WAN-PHY Shared Port Adapter ● Digital Signal Processor SPA ● 2 Port Channelized T3/E3 ATM and Circuit Emulation SPA ● SPA-2XOC12-POS with a license to use 1 port ● SPA-4XOC3-POS-V2 with a license to use 2 ports ● 8-port Channelized T1/E1 to DS0 Shared Port Adapter ● 1-port Channelized STM-1/OC-3c to DS0 SPA, Version 2 ● 2-port Channelized T3 to DS0 Shared Port Adapter, Version 2 ● 2-port Clear Channel T3/E3 Shared Port Adapter, Version 2 ● 4-port Channelized T3 to DS0 Shared Port Adapter, Version 2 ● 4-port Clear Channel T3/E3 Shared Port Adapter, Version 2 ● Cisco 4 port serial SPA ● Cisco 5-Port Gigabit Ethernet Shared Port Adapter ● Cisco 8-Port Fast Ethernet (TX) Shared Port Adapter ● Cisco 8-Port Gigabit Ethernet Shared Port Adapter ● 8-port OC12/STM4 POS Shared Port Adapters ● 4-port OC-3/STM-1 POS Shared Port Adapters |
| 1GB USB Flash Token | MEMUSB-1024FT |
| Router Processor Memory | ● M-ASR1K-1001-4GB ● M-ASR1K-1001-8GB ● M-ASR1K-1001-16GB |
| Feature License | ● Unified Border Element – Enterprise Edition 100 Sessions ● Unified Border Element Ent, 100 Sessions, Redundancy ● Unified Border Element Ent, 4000 Sessions, Redundancy ● Unified Border Element – Enterprise Edition 4000 Sessions ● Upgrade from 2.5 Gbps to 5Gbps License for ASR 1001 ● Appl. Visibility and Control License for ASR1000 Series ● Broadband RTU and 500 Sessions License for ASR1000 Series ● Flex. Pack. Insp License for ASR1000 Series ● CGN RTU Feature License for up to 2M Sessions on ASR1000 |
| Managed Services Software | ● Cisco ASR1001 IOS XE – NO PAYLOAD ENCRYPTION UNIVERSAL MS ● Cisco ASR1001 IOS XE – UNIVERSAL MS ● Cisco ASR1001 IOS XE – ENCRYPTION UNIVERSAL MS |
| System Software license | ● IP base license ● Advanced Enterprise service license ● IP services license |
| IOS XE Operating System | Cisco IOS XE Software Release 3.2.0S |
