ASR1001-X

Sale!

ASR1001-X

Original price was: $21,500.00.Current price is: $21,470.00.

Cisco ASR1001-X is designed for high-end project, data center, service provider edging network in order to handle explosive traffic through the network.

  • Supports only software redundancy
  • Based on a Quad-core 2.13GHz processor with 4GB memory
  • 8GB flash memory
  • 1 SPA bay
  • SPA interface processor 10 (SIP10).
  • This ASR1001-X is similar with the ASR1001-X= The ASR1001-X= is a spare one.
ASR1001-X

ASR1001-X

Original price was: $21,500.00.Current price is: $21,470.00.

Cisco ASR 1000 Series Aggregation Services Routers aggregate multiple WAN connections and network services, including encryption and traffic management, and forward them across WAN connections at line speeds from 2.5 to 200 Gbps. The routers contain both hardware and software redundancy in an industry-leading high-availability design. The latest addition to the Cisco ASR Family is the Cisco ASR 1001-X Router, a single-rack-unit (RU) router supporting 2.5- to 20-Gbps forwarding capacity. Cisco ASR 1001-X Router speeds can be “turned up” incrementally to as much as 20 Gbps with a simple throughput upgrade license, rather than having to purchase additional hardware blades or new routers.

The Cisco ASR 1000 Series supports Cisco IOS XE Software, a modular operating system with modular packaging, feature velocity, and powerful resiliency. The Cisco ASR 1000 Series Embedded Services Processors (ESPs), which are based on Cisco Quantum Flow Processor technology, accelerate many advanced features such as crypto-based access security; Network Address Translation (NAT), thread defense with Cisco Zone-Based Firewall (ZBFW), deep packet inspection (DPI), Cisco Unified Border Element (CUBE), and a diverse set of data center interconnect (DCI) features. These services are implemented in Cisco IOS XE Software without the need for additional hardware support.

Cisco ASR 1000 Routers sit at the edge of your enterprise data center or large office connecting to the WAN, as well as in service provider points of presence (POPs). The Cisco ASR 1000 Series will benefit the following types of customers:

  • Enterprises experiencing explosive network traffic as mobility, cloud networking, and video and collaboration usage ramp up. Cisco ASRs consolidate these various traffic streams and apply traffic management and redundancy properties to them to maintain consistent performance among enterprise sites and cloud locations.
  • Network service providers needing to deliver high-performance services, such as DCI and branch-office server aggregation, to business customers. Service providers can also use the multiservice routers to deploy hosted and managed services to business and multimedia services to residential customers.
  • Existing Cisco 7200 Series Router (End-of-Sale) customers looking for simple migration to a new multiservice platform that delivers greater performance with the same design.

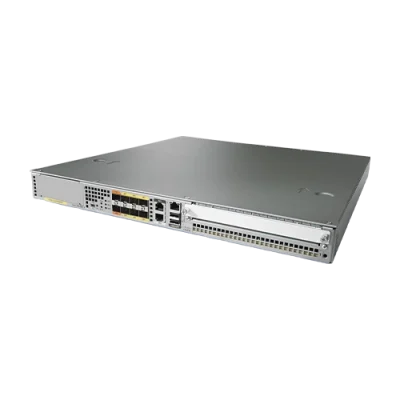

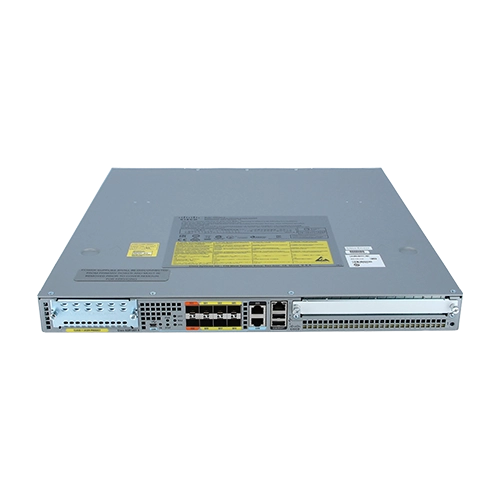

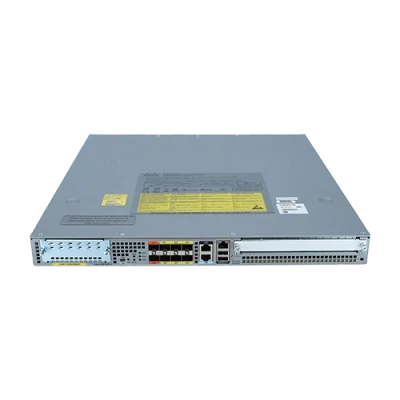

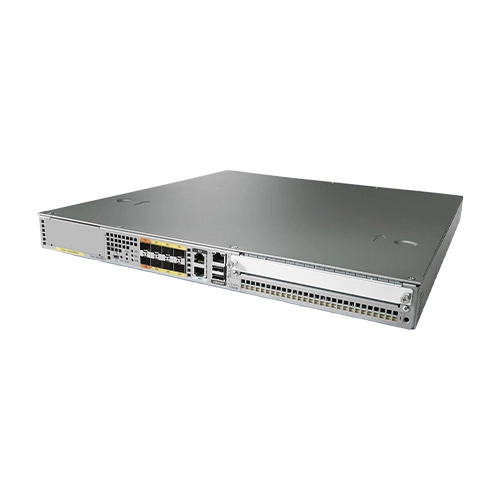

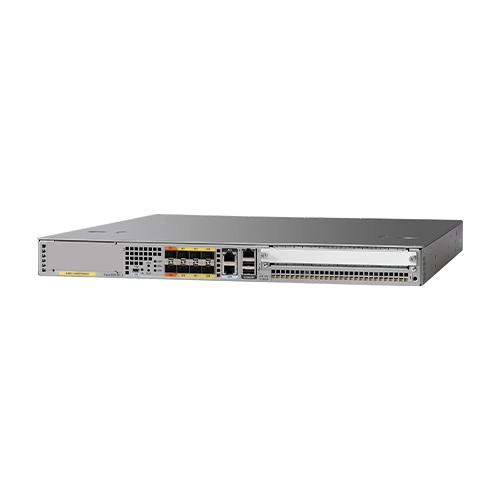

Appearance of the Cisco ASR 1001-X



Appearance of the Cisco ASR 1001-X



Quick Access

Product Code Cisco ASR 1001-X
Rack Height 1RU
System Bandwidth 2.5G (default) / 5G, 10G, 20G (upgrade)
Router Processor (RP) Quad-core 2.13Ghz Processor
Build-in Gigabit Ethernet port 6 x SFP ports, 2 x SFP+ ports
Redundancy Software (license purchase separately)
SIP and Ethernet line card Integrated in chassis; not upgradable
Embedded hardware-based encryption up to 8-Gbps crypto support throughput
Rack-mounting 19-inch
DRAM Memory 8 GB
Flash Memory 8 GB
Shared port adapters 1 SPA slot
External USB flash memory 1-GB USB flash-memory support

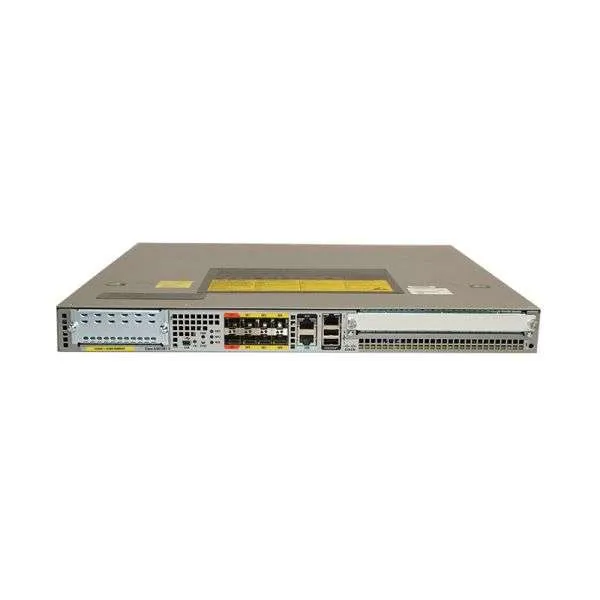

Front Panel of Cisco ASR 1001-X

front panel of Cisco ASR 1001-X.

Note:

NIM slots

② CON—One mini eUSB por

③ STAT—Status LED

④ CRIT LED—Critical alarm indicator; MAJ LED—Major alarm indicator; MIN LED—Minor alarm indicator

⑤ 6 x SFP ports, 2 x SFP+ ports

⑥ CON—One RJ-45/RS-232 compatible console port

⑦ USB port 1

⑧ USB port 0

⑨ Shared port adapter slot

⑩ MGMT—One RJ-45 10/100/1000 management Ethernet port.

⑪ AUX—One RJ-45/RS-232 compatible auxiliary port

⑫ PWR—Power LED

LEDs Color Description
PWR

(Power)

Solid green All power requirements are within specification.
Off The router is in standby mode.
STAT

(System

Status)

Solid green Cisco IOSD and other required processes have loaded successfully and are operating.
Yellow ROMMON is running (including a permanent failure of RP software) or the Process Manager has declared a critical RP process (including IOSD) dead. A user can log in to recover.
Red Occurs during system failure or power-up.
CRIT

(Critical)

Solid Red Functions as a critical alarm indicator. The LED is lso a solid red during the boot process.
MAJ

(Major)

Solid Red Major alarm indicator.
MIN

(Minor)

Amber Minor alarm indicator.

Configuration

The ASR1001-X should be configured with some modules and accessories for normal operation.

Table 3 shows the recommended configuration.

Items Quantity Descriptions
ASR1001-X-PWR-AC 2 Cisco ASR1001-X AC Power Supply

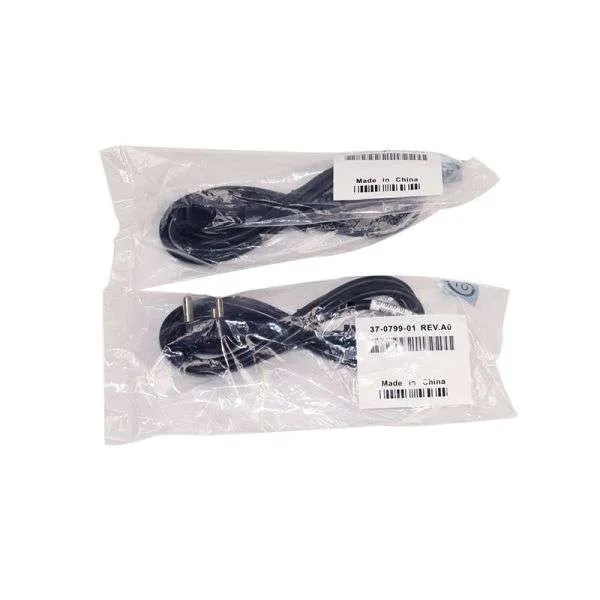

CAB-L620P-C13-US 2 Power Cord, 250VAC, 15A, NEMA L6-20 to C13, US
SASR1K1XU-313S 1 Cisco ASR1001-X IOS XE UNIVERSAL – NO ENCRYPTION
NIM-BLANK 1 Blank faceplate for NIM slot on Cisco ISR 4400
SPA-BLANK 1 Blank Cover for regular SPA
M-ASR1001X-8GB 1 Cisco ASR1001-X 8GB DRAM
ASR1K-OTHER 1 ASE1K-other applications for Enterprise or SP-Tracking only
L-SLASR1-IPB= 1 Cisco ASR1001 License L-SLASR1-IPB= Cisco ASR 1000 IP BASE E-Delivery PAK

ASR1001-X Specification

ASR1001-X Specifications

Physical specifications

Note: Depth applies to chassis edge-to-edge dimension and does not include protrusions such as card handles, power-supply handles, and cable management brackets.

Refer to the applicable hardware installation guide for additional details.

Height: 1.71 in. (43.43 mm)

Width: 17.3 in. (439.42 mm)

Depth: 18.17 in. (461.5 mm)

Weight:

●  25 lb (11.35 kg) fully loaded

Note: The Cisco ASR 1001-X Router has the route processor, ESP, and SIP integrated.

Default memory 8-GB DRAM shared across route processor, ESP, and SIP
Number of SIPs or Ethernet line cards supported Integrated in chassis
Shared port adapters 1 single-height SPA slot
Ethernet port adapters N/A
Cisco ASR 1000 Series ESP Integrated in chassis
Route processor Integrated in the chassis: Cisco ASR 1001-X Series Route Processor with Quad Core Processor
Redundancy Software: Yes
Built-in Gigabit Ethernet ports Yes: 6 Gigabit Ethernet Small Form-Factor Pluggable (SFP) ports
Built-in 10 Gigabit Ethernet port Yes: Two 10 Gigabit Ethernet Small Form-Factor Plus Pluggable (SFP+) ports

Note: Built-in 10-GB ports cannot be reduced to 1-GB speed.

Network interface module Yes
Cisco ASR 1000 Series Cisco ASR 1001-X
ESP support Cisco ASR 1000 Series 2.5-Gbps ESP (default)

Upgradable through a software-activated feature license to 5, 10, or 20 Gbps

ESP bandwidth 2.5 to 20 Gbps
ESP memory Share the same control memory on route processor
SIPs and Ethernet line cards Integrated in chassis; not upgradable
Embedded hardware-based encryption Yes: Up to 8-Gbps crypto support throughput
Minimum Cisco IOS XE Software release Cisco IOS XE Software Release 3.12.0
Rack-mounting Yes: 19-inch
Wall-mounting No
External USB flash memory 1-GB USB flash-memory support
Redundant power supply Yes: Dual power supplies by default; option of either AC or DC power supply

Note: A mix of one AC and one DC power supply is not supported.

Power input Worldwide ranging AC input range (85 to 264 VAC)

Worldwide ranging DC

(-40 to -72V; 48V nominal)

Power consumption ●  Maximum (DC): 242W

●  Maximum (AC): 250W

●  Maximum (out): 250W

Airflow Front-to-back
Operating temperature (nominal) 32 to 104°F
(0 to 40°C)
Operating temperature (short-term) 32 to 122°F
(0 to 50°C)
Operating humidity (nominal) (relative humidity) 10 to 85%
Operating humidity (short-term) 5 to 90%
Storage temperature -40 to 150°F

(-40 to 70°C)

Storage humidity (relative humidity) 5 to 95%
Operating altitude -500 to 10,000 feet
(152 to 3048 meters)
Network Equipment Building Standards (NEBS) GR-1089 and GR-63 (in progress)
EMC standards ●  FCC 47 CFR Part 15 Class A

●  VCCI Class A

●  AS/NSZ Class A

●  ICES-003 Class A

●  EN55022/CISPR 22 Information Technology Equipment

(Emissions)

●  EN55024/CISPR 24 Information Technology Equipment

(Immunity)

●  EN300 386 Telecommunications Network Equipment

●  (EMC)

●  EN50082-1/EN61000-6-1 Generic Immunity Standard

Safety Standard UL60950-1

CSA C22.2 No. 60950-1-03

EN 60950-1

IEC 60950-1

AS/NZS 60950.1



Why Choose Top Paragon Resources?

As a leading network hardware supplier, topparagonresource.com focuses on original new ICT equipment of Cisco, Huawei, Juniper and Fortinet, etc.

Cisco-ASR-1001-X Datasheet
