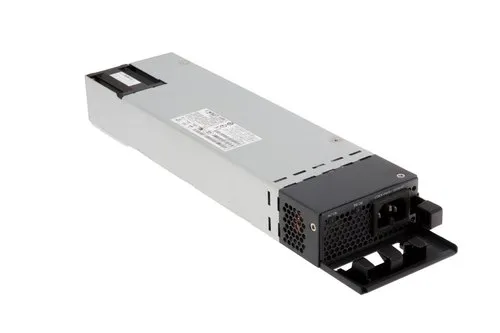

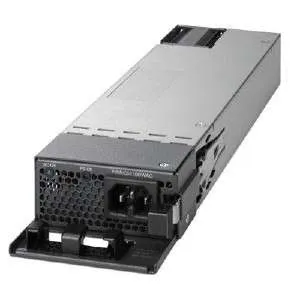

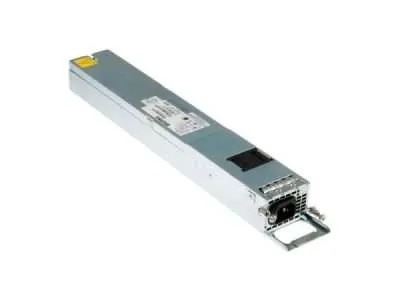

ASR1001-X-PWR-AC
ASR1001-X-PWR-AC
$398.00
The Cisco ASR1001-X-PWR-AC is a consistent power supply designed for topparagonresource.com. Cisco ASR 1000-X Series router with a power capacity of 250W AC and an input asr1000-x transceiver supply voltage range of AC 85-264 V at frequencies of 50-60 Hz. Cisco ASR1001-X-PWR-AC: 250W AC Power Supply for Cisco ASR1001-X Routers. The scisco asr1000 transciever power supports AC and DC power supply options. The modular chassis configurations support the installation of two power supplies for redundancy.
| Power Capacity | 250W AC |
| Input Voltage | AC 85-264 V, 50-60 Hz |
| Designed For | Cisco ASR1001-X Router |
| Model Number | ASR1001-X-PWR-AC |
| Part Number | ASR1001-X-PWR-AC ASR1001-X-PWR-AC=, ASR1001-X-PWR-AC-WS |
| Condition | NEW |
Supported Hardware Components
| Component | Description |
| Chassis | 1 RU form factor |
| Ethernet Ports | Six built-in Gigabit Ethernet and two built-in 10-Gigabit Ethernet ports |
| ESP | A nonmodular, fixed ESP with a default throughput of 2.5 Gbps, which is upgradable with a software-activated performance license of 5 Gbps, 10 Gbps, or 20 Gbps. |
| Route Processor | Single integrated route processor |
| SIP | Integrated SIP |
| SPA Slots | 1 half-height (HH) SPA bay |
| NIM Slots | 1 |
| USB Slots | 2 |
Supported Half-Height SPAs
| PID | Description |
| SPA-1X10GE-L-V2 | Cisco 1-Port 10GE LAN-PHY |
| SPA-1XCHSTM1/OC3 | 1-port Channelized STM-1/OC-3c to DS0 |
| SPA-1XOC12-POS | 1-port OC12/STM4 POS |
| SPA-2XOC12-POS | 2-port OC12/STM4 POS |
| SPA-4XOC12-POS | 4-port OC-12/STM-4 POS |
| SPA-8XOC12-POS | 8-port OC12/STM4 |
| SPA-1XOC3-ATM-V2 | 1-port OC-3c/STM-1 ATM |
| SPA-2X1GE-V2 | Cisco 2-Port Gigabit Ethernet |
| SPA-2XCT3/DS0 | 2-port Channelized T3 to DS0 |
| SPA-2XOC3-POS | 2-port OC3/STM1 POS |
| SPA-8XOC3-POS | 8-port OC-3/STM-1 POS |
| SPA-1XOC48POS/RPR | 1-port OC48/STM16 POS/RPR |
| SPA-2XOC48POS/RPR | 2-port OC48/STM16 POS/RPR |
| SPA-2XT3/E3 | 2-port Clear Channel T3/E3 |
| SPA-3XOC3-ATM-V2 | 3-port OC-3c/STM-1 ATM |
| SPA-4X1FE-TX-V2 | Cisco 4-Port Fast Ethernet (TX) |
| SPA-4XCT3/DS0 | 4-port Channelized T3 to DS0 |
| SPA-4XOC3-POS | 4-port OC3/STM1 POS |
| SPA-4XOC48POS/RPR | 4-port OC48/STM16 POS/RPR Shared Port Adapters |
| SPA-OC192POS-XFP | 1-port OC192/STM64 POS/RPR XFP Optics |
| SPA-4XT-SERIAL | Cisco 4-port serial SPA |
| SPA-4XT3/E3 | 4-port Clear Channel T3/E3 |
| SPA-5X1GE-V2 | Cisco 5-Port Gigabit Ethernet |
| SPA-8X1FE-TX-V2 | Cisco 8-Port Fast Ethernet (TX) |
| SPA-8X1GE-V2 | Cisco 8-Port Gigabit Ethernet |
| SPA-8XCHT1/E1 | 8-port Channelized T1/E1 to DS0 |
| SPA-1XOC12-ATM-V2 | 1-port OC12 STM |
| SPA-DSP | Digital Signal Processor SPA |
| SPA-1X10GE-WL-V2 | Cisco 1-port 10GE LAN/WAN-PHY |
| SPA-2CHT3-CE-ATM | 2-Port Channelized T3/E3 ATM and Circuit Emulation SPA |
| SPA-4XOC3-POS-V2 | 4-port OC-3/STM-1 POS |
| SPA-2X1GE-SYNCE1 | Cisco Synchronous Ethernet SPA |
| SPA-8XT3/E3 | Cisco 8-Port Clear Channel T3/E3 Shared Port Adapter |
| SPA-24CHT1-CE-ATM | Cisco 24 Port T1/E1/J1 Circuit Emulation SPA |
| SPA-1CHSTM1/OC3V2 | 1-Port Channelized OC-3/STM-1 SPA, Version 2 |
| SPA-1XOC12-POS-V2 | 1-Port OC-12C/STM-4 Multirate POS SPA (license) |
| SPA-2XOC3-POS-V2 | 2-Port OC-3C/STM-1 POS SPA (license) |
| SPA-2XCT3/DS0-V2 | 2-Port Channelized T3 SPA, Version 2 |
| SPA-4XCT3/DS0-V2 | 4-Port Channelized T3 SPA, Version 2 |
| SPA-2XT3/E3-V2 | 2-Port Clear Channel T3/E3 SPA, Version 2 |
| SPA-4XT3/E3-V2 | 4-Port Clear Channel T3/E3 SPA, Version 2 |
| SPA-8XCHT1/E1-V2 | 8-Port Channelized T1/E1 SPA, Version 2 |
Supported Small Form-Factor Pluggable (SFP and SFP+) Transceivers
Supported SFP optics and SFP copper interfaces on the Cisco ASR 1001-X Router.
| PID | Description |
| SFP-GE-S | 1000BASE-SX SFP (DOM) |
| GLC-SX-MMD | 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| SFP-GE-L | 1000BASE-LX/LH SFP (DOM) |
| GLC-LH-SMD | 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM |
| SFP-GE-Z | 1000BASE-ZX Gigabit Ethernet SFP (DOM) |
| SFP-GE-T | 1000BASE-T SFP (NEBS 3 ESD) |
| GLC-BX-U | 1000BASE-BX SFP, 1310NM |
| GLC-BX-D | 1000BASE-BX SFP, 1490NM |
| GLC-TE | 1000BASE-T SFP transceiver module for category 5 copper wire |
| GLC-SX-MM | GE SFP, LC connector SX transceiver |

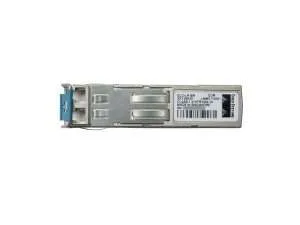

| GLC-LH-SM | GE SFP, LC connector LX/LH transceiver |
| GLC-EX-SMD | GE SFP, LC Connector, EX transceiver |
| GLC-ZX-SMD | 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
| DWDM-SFP | 1000BASE DWDM |
| CWDM-SFP | 1000BASE CWDM |
| GLC-BX40-D-I | 1000BASE BX40-D |
| GLC-BX40-DA-I | 1000BASE BX40-DA |
| GLC-BX40-U-I | 1000BASE BX40-U |
| GLC-BX80-D-I | 1000BASE BX80-D |
| GLC-BX80-U-I | 1000BASE BX80-U |
| GLC-GE-100FX | 100BASE-FX |
Cisco ASR 1001-X Router Power Supplies
The Cisco ASR 1001-X Router supports AC and DC power supply options. The modular chassis configurations support the installation of two power supplies for redundancy. When an external power supply fails or is removed, the other power supply provides power requirements for the chassis. This allows you to hot-swap the power supply without impacting the functionality of the router.
- Power Supplies for the Cisco ASR 1001-X Router
- Cisco ASR 1001-X Power Supply Fans
- Cisco ASR 1001-X Router AC Power Supply
- Cisco ASR 1001-X Router DC Power Supply
- AC/DC Power System Input Range and Voltage for the Cisco ASR 1001-X Router
- Power Cords Supported by the Cisco ASR 1001-X Router
Power Supplies for the Cisco ASR 1001-X Router
Each Cisco ASR 1001-X Router power supply provides 250 W of output power. The power supplies are used in a 1 + 1 redundant configuration. There is no input switch on the faceplate of the power supplies. A power supply is switched from Standby to ON by way of a system chassis STANDBY/ON switch. When facing the rear of the chassis, power supply slot 0 (PS0) is to the left (next to the power supply standby switch) and power supply slot 1(PS1) is to the right.
Download ASR1001-X-PWR-AC Datasheet
Download Cisco ASR 1001-X
RELATED PRODUCTS
Related products
-
Transceivers

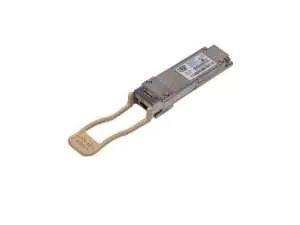

Cisco-QSFP-40G-SR4
Original price was: $250.00.$190.00Current price is: $190.00. Add to cart -
Transceivers

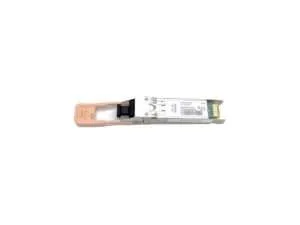

Cisco-SFP-10/25G-LR-S
Original price was: $750.00.$520.00Current price is: $520.00. Add to cart -
Transceivers

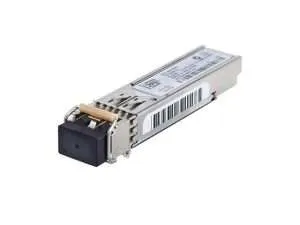

Cisco-GLC-SX-MMD
