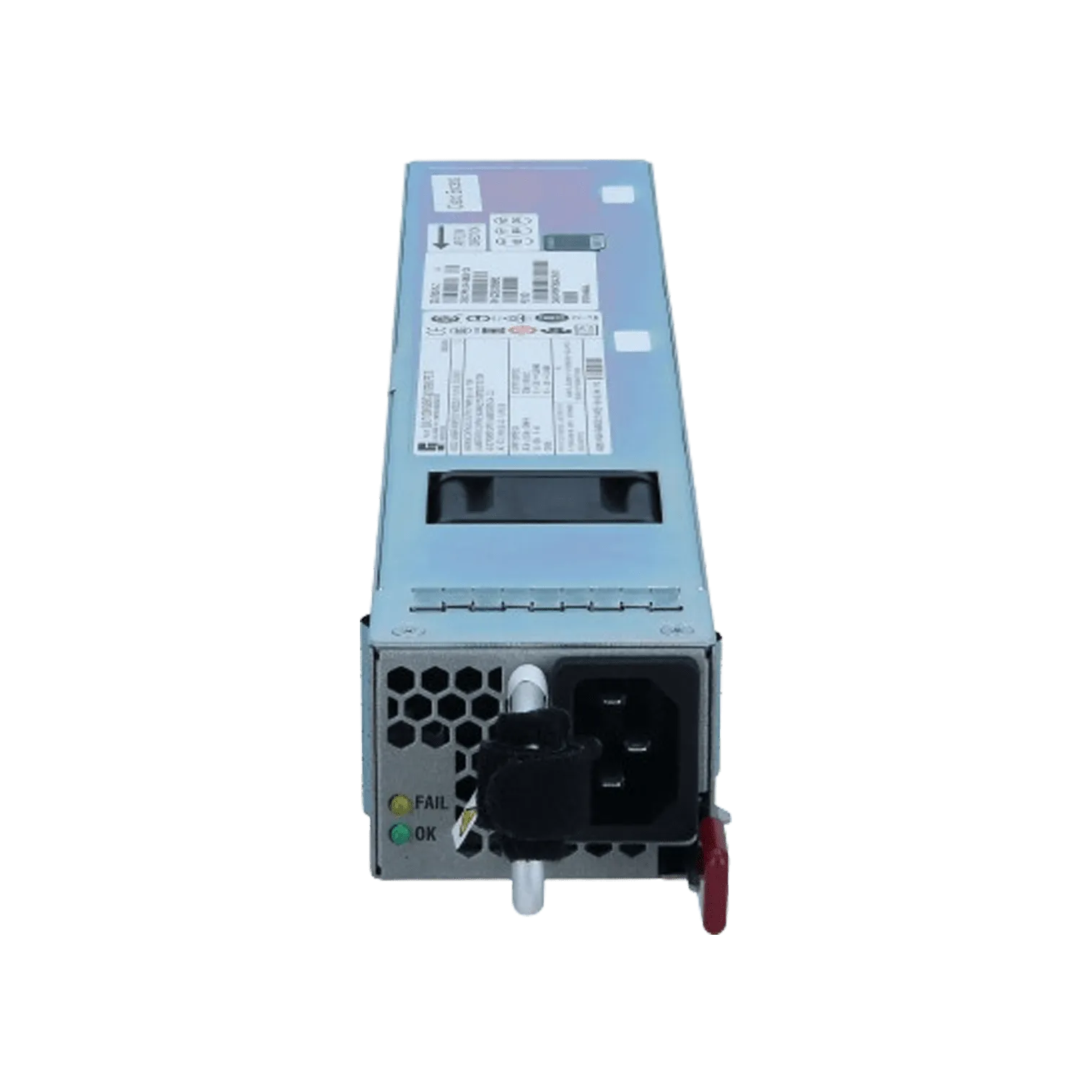

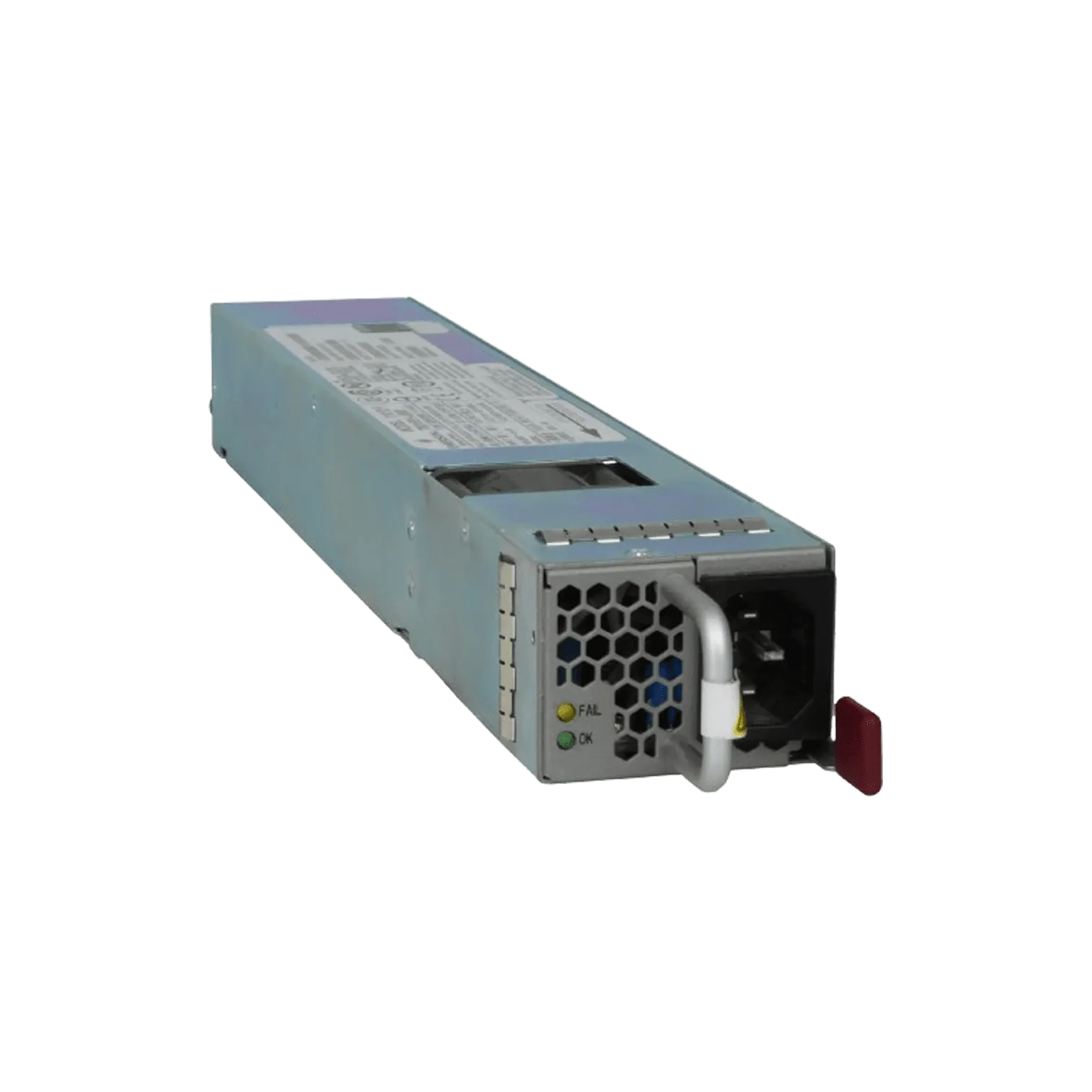

Name: C4KX-PWR-750AC-R - Top Paragon Resources
Price: 538.00 USD
Availability: InStock

Product Code	C4KX-PWR-750AC-R
AC-input type	Autoranging input with power factor correction (PFC)
AC-input voltage	100 to 240 VAC (115/230 VAC nominal) single-phase
AC-input current	11 A @ 100 VAC (max) 6 A @ 200 VAC (max)
AC-input frequency	47 to 63 Hz (50/60 Hz nominal)
Branch circuit requirement	Each chassis power supply should have its own dedicated, fused-branch circuit: For North America—15 A For International—Circuits should be sized to local and national codes All AC power supply inputs are fully isolated. Source AC can be out of phase between multiple power supplies in the same chassis, which means that PS1 can be operating from *phase A and PS2 can be operating from phase B.
Power supply output capacity	750 W
Power supply output	12 VDC @ 62 A 3.3 VDC @ 3 A
Output holdup time	16 ms minimum (20 ms @ 60% load)
BTU (total output)	1122 BTU/hour (nominal) 1365 BTU/hour (max)
AC-input power supply dimensions (H x W x D)	1.57 x 2.15 x 14.28 in (3.99 x 5.46 x 36.27 cm)
Weight	2 lb (0.91 kg)
