C8300-2N2S-6T

C8300-2N2S-6T

$6,850.00

The Cisco c8300-2n2s-6t router is a advanced solution for organization networking, providing outstanding performance with its dual network interfaces and six high-speed throughput ports. Planned for scalability, it become accustomed naturally to growing business needs. The c8300-2n2s-6t excels in security, featuring advanced threat detection and mitigation tools, including firewalls and VPN support.

C8300-2N2S-6T

C8300-2N2S-6T

$6,850.00

The Catalyst 8300 Series Edge Platforms have a wide variety of interface options to choose from—ranging from lower and higher module density with backward compatibility to a variety of existing WAN, LAN, voice, and compute modules. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. Catalyst 8300 Series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats. The Catalyst 8300 Series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated SD-WAN services.

Part number C8300-2N2S-6T
Description C8300 2RU w/ 1G WAN (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports)
Multicore processors Intel x86 CPU with 8 GB memory default
Embedded IPsec VPN hardware acceleration Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
DRAM 8 GB
SD-WAN overlay tunnels scale 6000
Integrated Gigabit Ethernet ports 6 built-in 10/100/1000/10G Ethernet ports for WAN or LAN

2 SFP Ethernet ports, 4 RJ45 ports

Flash memory support 8-GB flash
M.2 storage With default 16G M.2 USB for SD-WAN logging and additional storage on the platform and can be upgraded to 32G M.2 USB and 600G M.2 NVMe Storage

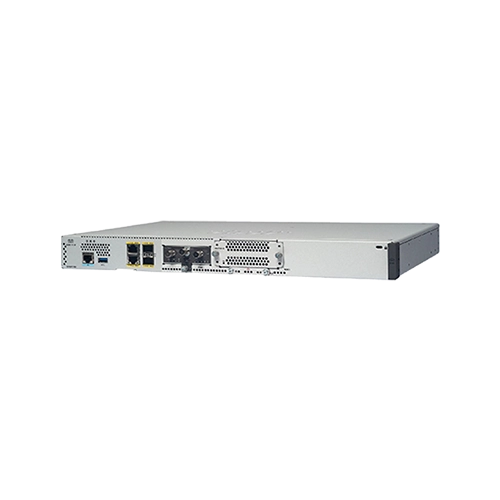

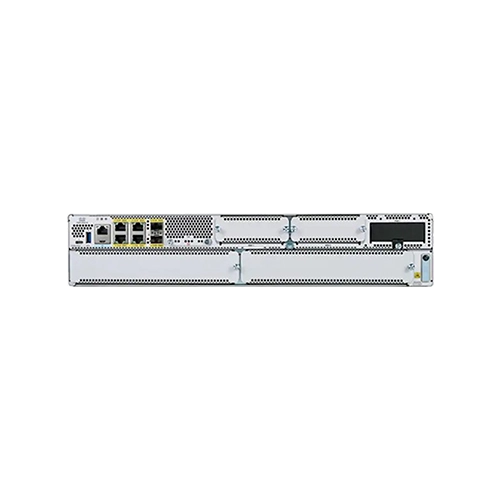

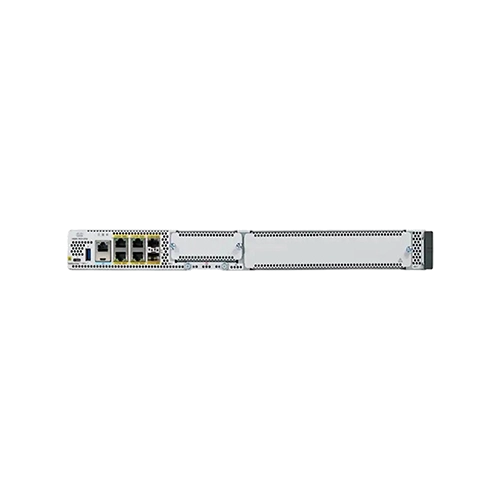

Appearance of the C8300-2N2S-6T.

C8300-2N2S-6T

Compare the Similar Items

Product Code C8300-2N2S-6T C8300-1N1S-6T
Product Description C8300 2RU w/ 1G WAN (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports) C8300 1RU w/ 1G WAN (1 SM slot and 1 NIM slot, and 6 x 1-Gigabit Ethernet ports)
Multicore processors Intel x86 CPU with 8 GB memory default Intel x86 CPU with 8 GB memory default
Embedded IPsec VPN hardware acceleration Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
DRAM 8 GB 8 GB
SD-WAN overlay tunnels scale 6000 6000
SD-WAN IPsec Throughput (1400Bytes, clear text) Up to 1.9Gbps Up to 1.9Gbps
SD-WAN IPsec Throughput (IMIX*, clear text**) 1.75Gbps 1.75Gbps
Slots 2 SM

2 NIM

1 PIM

1 SM

1 NIM

1 PIM

C8300-2N2S-6T Specification

C8300-2N2S-6T Specification

Description C8300 2RU w/ 1G WAN (2 SM and 2 NIM slots, and 6 x 1-Gigabit Ethernet ports)
Multicore processors Intel x86 CPU with 8 GB memory default
Embedded IPsec VPN hardware acceleration Up to 5 Gbps of IPSec Internet Mix (IMIX) traffic
Integrated Gigabit Ethernet ports 6 built-in 10/100/1000/10G Ethernet ports for WAN or LAN

2 SFP Ethernet ports, 4 RJ45 ports

Flash memory support 8-GB flash
Modularity and form factor 1RU and 2RU form factor

Supports SM, NIM, and Pluggable Interface Module (PIM) slots

10G port density
1G port density 6
Slots 2 SM

2 NIM

1 PIM

DRAM 8 GB
Storage (M.2 SSD) default 16 GB
SD-WAN IPsec Throughput (1400Bytes, clear text) Up to 1.9Gbps
SD-WAN IPsec Throughput (IMIX*, clear text**) 1.75Gbps
SD-WAN Overlay Tunnels scale 6000
IPv4 Forwarding Throughput (1400Bytes) Up to 19.7Gbps
IPsec Throughput (1400Bytes, clear text**) Up to 1.9Gbps
Number of IPsec SVTI Tunnels 4000
Number of ACLs per system 4000
Number of IPv4 ACEs per system 72K
Number of IPv4 Routes 1.6M w/ default 8GB, up to 4M w/ 32GB
Number of IPv6 Routes 1.5M w/ default 8GB, up to 4M w/ 32GB
Number of Queues 16K
Number of NAT Sessions 1.2M w/ default 8GB, up to 2M w/ 32GB
Number of Firewall Sessions 512K
Number of VRFs 4000



More information on this Cisco C8300-2N2S-6T-Datasheet
