C9400-LC-48U

Sale!

C9400-LC-48U

$1,530.00

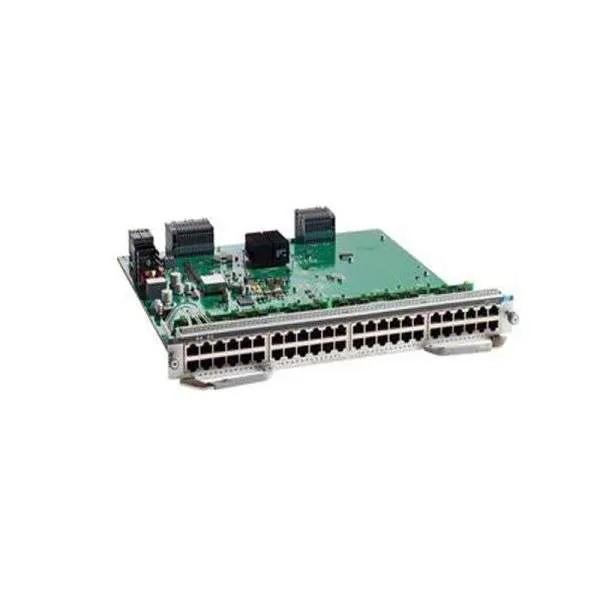

Cisco Catalyst 9400 Series 48-Port UPOE 10/100/1000 (RJ-45)

C9400-LC-48U Features:

  • l 48 ports nonblocking
  • l 10/100/1000 module (RJ-45)
  • l Supported on Cisco Open IOS-XE release 16.6.1 or later
  • l UPoE is enabled, capable of up to 60W on all the ports in the line card
  • l Energy Efficient Ethernet 802.3az
  • l IEEE 802.3af/at and Cisco pre-standard PoE
  • l IEEE 802.1AE and Cisco TrustSec capability in hardware (Software Roadmap)
  • l Hardware-ready for IEEE1588/802.1AS and PTP used for time synchronization across the network for applications such as video and audio. (Software Roadmap)
  • l Layer 2 to Layer 4 Jumbo Frame support up to 9216 bytes
  • l Enterprise and commercial design to power next-generation IP phones, wireless base stations, video cameras, virtual desktop clients, and other PoE/UPoE devices

    Feature

    Description

    Standards

    ●  Gigabit Ethernet: IEEE 802.3z, IEEE 802.3x, IEEE 802.3ab, IEEE 803.3at, IEEE 802.3af, IEEE 802.3az

    EtherChannel Technology

    ●  Gigabit EtherChannel: All 1000 Mbps ports

    ●  10 Gigabit EtherChannel: All 10Gbps ports

    ●  IEEE 802.3ad (Link Aggregation Control Protocol): All 1000 Mbps ports

    ●  Port Aggregation Protocol (PagP): Yes

    ●  Number of ports per tuple: 8

    ●  EtherChannel and IEEE 802.3ad technology across line cards: Yes

    Physical Dimensions

    ●  Occupies one slot in the Cisco Catalyst 9400 Series platform

    ●  Dimensions (H x W x D): 1.6 x 14.92 x 14.57 in. (4.06 x 37.90 x 37.00 cm)

    Environmental Conditions

    ●  Operating temperature:

    ●  Normal Operating Temperature and Altitudes:

    ◦   27° to 109°F (-5 to +45°C), up to 6,000 feet (1800 m)

    ◦   27° to 104°F (-5 to +40°C), up to 10,000 feet (3000 m)

    ◦   *Minimum ambient temperature for cold startup is 0°C

    ●  Short-Term Exceptional Conditions:

    ◦   27° to 119°F (-5 to +55°C), up to 6,000 feet (1800 m)

    ◦   27° to 114°F (-5 to +50°C), up to 10,000 feet (3000 m)

    ◦   Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences

    ●  Storage temperature: -40° to 158° F (-40° to 70°C)

    ●  Relative humidity: 10 to 95%, noncondensing

    ●  Operating altitude: -60 to 3000m

    Safety Conditions

    Fiber optic lasers: Class 1 laser products

    Safety Certifications

    ●  UL 60950-1

    ●  CAN/CSA-C222.2 No. 60950-1

    ●  EN 60950-1

    ●  IEC 60950-1

    ●  AS/NZS 60950.1

    ●  IEEE 802.3

    Electromagnetic Emissions Certifications

    ●  47 CFR Part 15

    ●  CISPR22 Class A

    ●  EN 300 386 V1.6.1

    ●  EN 55022 Class A

    ●  EN 55032 Class A

    ●  CISPR 32 Class A

    ●  EN61000-3-2

    ●  EN61000-3-3

    ●  ICES-003 Class A

    ●  TCVN 7189 Class A

    ●  V-3 Class A

    ●  CISPR24

    ●  EN 300 386

    ●  EN55024

    ●  TCVN 7317

    ROHS Compliance

    ROHS5
