C9500-40X-A

Sale!

C9500-40X-A

Original price was: $13,200.00.Current price is: $12,600.00.

The Cisco C9500-40X-A Catalyst 9500 is a high-performance switch designed to gather the demands of modern networks. Its front-to-back airflow and 10GB SFP+ ports offer flexibility in connectivity options. While you are looking up a small office or an organization-level network infrastructure, the C9500-40X-A provides robust features required by today’s businesses while optimizing investment costs. Cisco Catalyst C9500-40X-A: Cisco Catalyst 9500 40-port 10G switch.

C9500-40X-A

C9500-40X-A

Original price was: $13,200.00.Current price is: $12,600.00.

C9500-40X-A is one of the the Cisco Catalyst 9500 Series Switches. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

Manufacturer Part Number C9500-40X-A
Product Type Layer 3 Switch
Manageable Yes
Ethernet Technology 40 Gigabit Ethernet
Number of Total Expansion Slots 40
Product Family Catalyst 9500
Media Type Supported Optical Fiber
Redundant Power Supply Supported Yes
Expansion Slot Type SFP+SFP
Form Factor Rack-mountable
Power Consumption 950 W
Power Source Power Supply
Layer Supported 3
Compatible Rack Unit 1U
Number of SFP+ Slots 40
Modular Yes
Uplink Port No
Port / Expansion Slot Details 40 x 10 Gigabit Ethernet Expansion Slot
Height 1.7″
Width 17.5″
Depth 21.5″
Product Series 9500
Product Model C9500-40X
Network Technology 40GBase-X
Product Line Catalyst
Stock Details
Manufacturer Cisco Systems
Manuf Part# C9500-40X-A

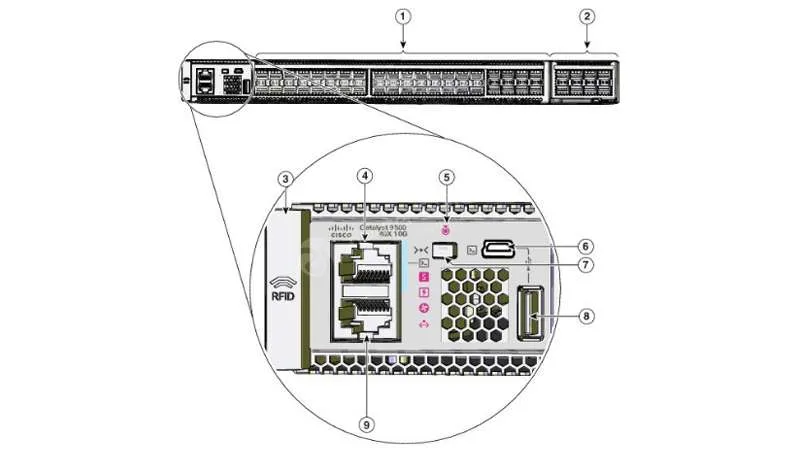

Front Panel of C9500-40X-A

C9500-40X

40 10G SFP ports
Network modules
RFID
Console port (RJ-45 Serial)
Blue beacon LED
USB mini Type B console port
Mode button
USB 2.0 host port
Ethernet management RJ-45 port

Recommended Elements for the C9500-40X-A

Category Model Description
Power Supply



PWR-C4-950WAC-R 950W AC Config 4 Power Supply front to back cooling
PWR-C4-950WAC-R/2 950W AC Config 4 Power Supply front to back cooling
Console Cables



CAB-CONSOLE-RJ45 Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F
CAB-CONSOLE-USB Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B

C9500-40X-A Specification

C9500-40X-A specifications

Performance specifications
Switching capacity Up to 960 Gbps
Forwarding rate Up to 720 Mpps
Total number of MAC addresses Up to 64,000*
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 64,000 indirect*

Up to 32,000 host*

Total number of IPv6 routes Up to 32,000 indirect*

Up to 16,000 host*

Multicast scale Up to 48,000*
QoS ACL scale Up to 18000*
Security ACL scale Up to 18000*
FNF entries Up to 512,000*
DRAM 16 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 4000
Jumbo frame 9198 bytes
Power supply specifications
Power Supply Feature Support in the Catalyst 9500 Series
AC power max rating 950W
System power consumption 850W max
Input-voltage range and frequency AC 115 to 230 VAC, 50 to 60 Hz
Power supply efficiency 94%
Total output BTU (Note: 1000 BTU/hr = 293W) 2901 BTU/hr (850W) max
Input current AC 10A at 115VAC, 5 A at 230VAC
Output ratings 12V at 79A, 12V at 3A
Output holdup time AC = 10 ms at maximum load
Power-supply input receptacles AC IEC 60320 C16
Power cord rating AC 15A
Dimensions, physical specifications, and MTBF
Description Specifications
Dimensions (H x W x D) 1.73 x 17.5 x 21.52 in
Rack units (RU) 1 RU
Input voltage 90 to 264 VAC
Operating temperature 32°F to 104°F (0° to 40°C)
Storage temperature -4° to 149°F (-20° to 65°C)
Relative humidity operating and nonoperating noncondensing Ambient (noncondensing) operating: 5% to 90%

Ambient (noncondensing) nonoperating and storage: 5% to 95%

Altitude Operation up to 6000 ft
MTBF (hours) 180,640

For more Information about c9500-40x-a-datasheet
