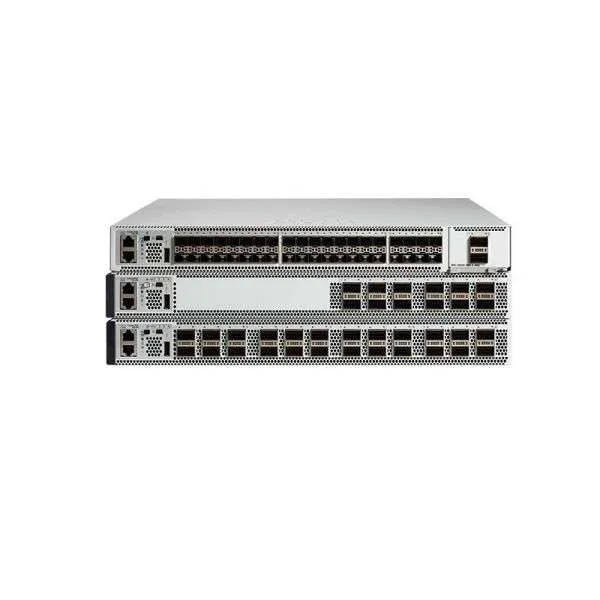

Cisco-C9500-48Y4C-A

Cisco-C9500-48Y4C-A

$17,880.00

Cisco-C9500-48Y4C-A is a Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. License. The Cisco Catalyst 9500 Series Switches are the next generation of enterprise-class core and aggregation layer switches, supporting full programmability and serviceability. Based on an x86 CPU, the Catalyst 9500 Series is Cisco’s lead purpose-built fixed core and aggregation enterprise switching platform, built for security, IoT, and cloud. The Catalyst 9500 Series is the industry’s first purpose-built 40 Gigabit Ethernet line of switches targeted for the enterprise campus.

Catalyst 9500 25-G 24- and 48-port switches: C9500-24Y4C, C9500-48Y4C

· 24 and 48 ports of 25 G with rich campus features

· Cisco innovation extending SR reach to 300 million

· High performance, SFP28

· Secure segmentation with SD-Access

· MPLS Level 2/3 VPNs, MVPN; flexible design templates

· Enhanced Limited Lifetime Warranty (E-LLW)



Product Code cisco-C9500-48Y4C-A C9500-24Y4C-E
Description Cisco Catalyst 9500 Series high performance 48-port 25G switch, NW Adv. License Cisco Catalyst 9500 Series high performance 24-port 1/10/25G switch, NW Ess. License
Switching capacity Up to 3.2 Tbps Up to 2 Tbps
Forwarding rate Up to 1 Bpps Up to 1 Bpps
DRAM 16 G 16 G
Flash 16 G 16 G
Dimensions (H x W x D) 1.73 x 17.5 x 18.0 in 1.73 x 17.5 x 18.0 in
Rack units (RU) 1RU 1RU

C9500-48Y4C-A Specification



Cisco-C9500-48Y4C-A Specification

Performance specifications
Switching capacity Up to 3.2 Tbps
Forwarding rate Up to 1 Bpps
Total number of MAC addresses Up to 82,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) Up to 212,000 indirect + direct

Up to 90,000 host/ARP

Total number of IPv6 routes Up to 212,000 indirect + direct

Up to 90,000 host

QoS ACL scale Up to 16000
Security ACL scale Up to 27000
FNF entries Up to 98,000
DRAM 16 GB
Flash 16 GB
VLAN IDs 4000
Total Switched Virtual Interfaces (SVIs) 4000
Jumbo frame 9216 bytes
Power supply specifications
Power Supply Selection C9K-PWR-650WAC-R or C9K-PWR-930WDC-R
Dimensions, physical specifications, and MTBF
Dimensions (H x W x D) 1.73 x 17.5 x 18.0 in
Rack units (RU) 1 RU
Input voltage 90 to 264 VAC
Operating temperature 32° to 104°F (0° to 40°C)
Storage temperature -4° to 149°F (-20° to 65°C)
Relative humidity operating and non operating non condensing Ambient (non condensing) operating: 5% to 90%

Ambient (non condensing) non operating and storage: 5% to 95%

Altitude Operation up to 13,000 feet at 40°C
MTBF (hours) 316,960

Visit C9500-48Y4C-A Datasheet
