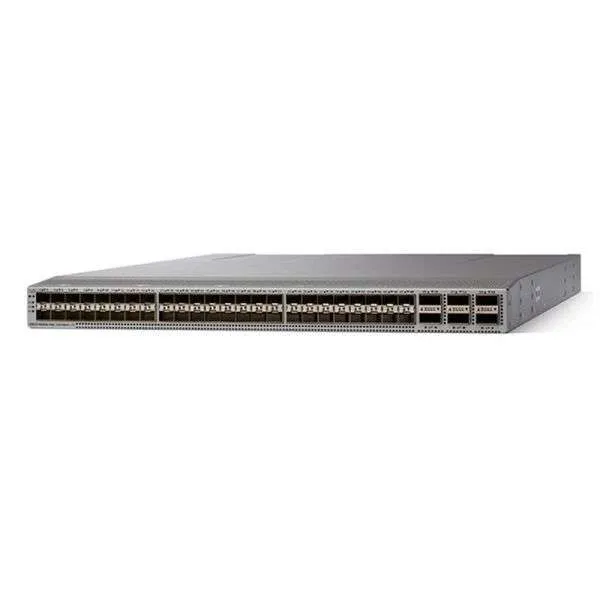

Cisco-N9K-C93180YC-FX3

Sale!

Cisco-N9K-C93180YC-FX3

$8,580.00

Cisco Nexus 9300-FX3 Series is the latest generation of access switches. Building on the successful Nexus 9300-FX series, the platform supports cost-effective cloud-scale deployments, an increased number of endpoints, and is capable of wire-rate security and telemetry. The platform is built on modern system architecture designed to provide high performance and meet the evolving needs of highly scalable data centers and growing enterprises.

Ports

48 x 1/10/25-Gbps and 6 x 40/100-Gbps QSFP28 ports

Downlink supported speeds

1/10/25-Gbps Ethernet

CPU

6 cores

System memory

Upto 32 GB

SSD drive

128 GB

System buffer

40 MB

Management ports

1 RJ-45 port

USB ports

1

1PPS

GPS 1PPS input or output

10MhZ

GPS 10Mhz input or output.

Time of Date (TOD)

1 RJ-45

ANT

Antenna for GNSS

RS-232 serial ports

1

Power supplies (up to 2)

650W AC, 930W DC, or 1200W HVAC/HVDC

Typical power (AC/DC)*

325W

Maximum power (AC/DC)*

600W

Input voltage (AC)

100 to 240V

Input voltage
(High-Voltage AC [HVAC])

200 to 277V

Input voltage (DC)

–48 to –60V

Input voltage
(High-Voltage DC [HVDC])

–240 to –380V

Frequency (AC)

50 to 60 Hz

Fans

4

Airflow

Port-side intake and exhaust

Physical dimensions
(H x W x D)

1.72 x 17.3 x 19.6 in.
(4.4 x 43.9 x 49.6 cm)

Acoustics

Port Side Exhaust:

Fan speed at 50%:63.4 dBA

Fan speed at 70%:74.3 dBA

Fan speed at 100%: 83.4 dBA

Port Side Intake:

Fan speed at 50%:64.6 dBA

Fan speed at 70%:76.1 dBA

Fan speed at 100%: 85.4 dBA

RoHS compliance

Yes

MTBF

288,760 Hours

Minimum ACI image

ACI-N9KDK9-15.1.3

Minimum NX-OS image

NXOS-10.1.1/NXOS-9.3.7
