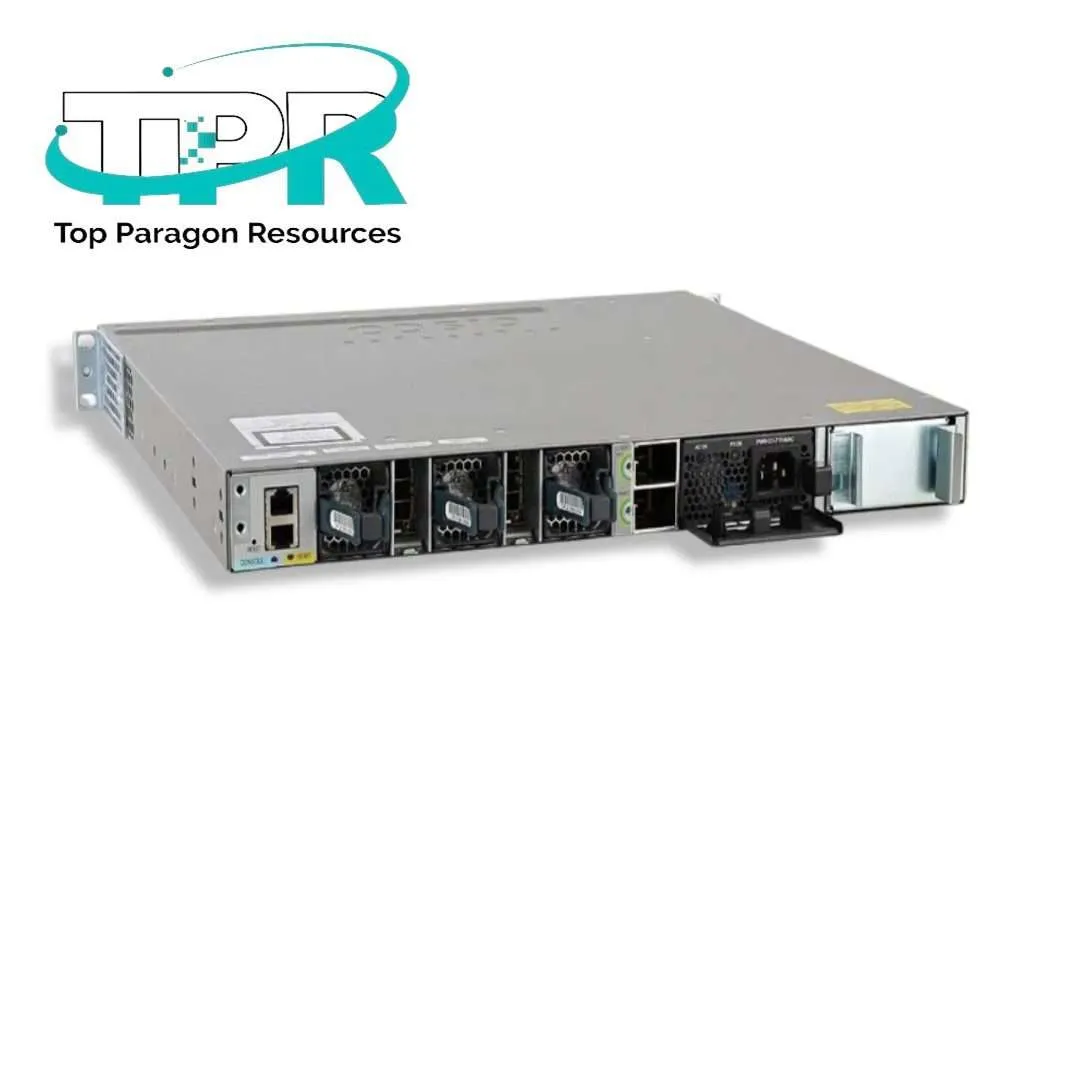

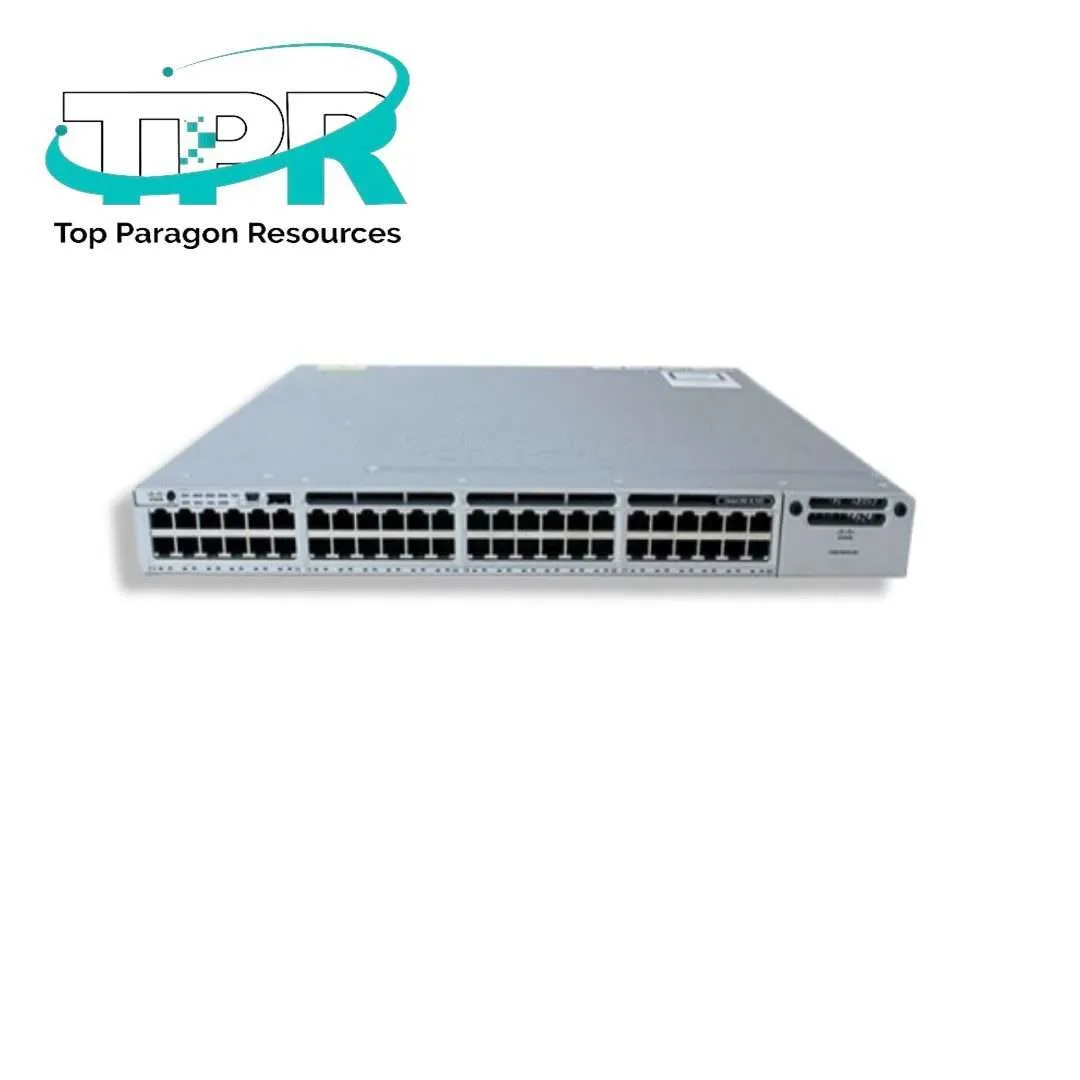

Cisco-WS-C3850-48P-L
Cisco-WS-C3850-48P-L
Original price was: $700.00.$650.00Current price is: $650.00.
Cisco-WS-C3850-48P-L switch is the next generation stackable enterprise level switch and integrated with 48 Ethernet POE + ports with upgradeable LAN base IOS image.
| Cisco Catalyst 3850-48P-L – switch – 48 ports – Managed – rack-mountable | |
| Device Type | Switch – 48 ports – Managed – stackable |
| Enclosure Type | Rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 435 W |
| Performance | Switching capacity: 176 Gbps ¦ Stacking bandwidth: 480 Gbps |
| Capacity | IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Switched virtual interfaces (SVIs): 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 45 cm x 4.45 cm |
| Weight | 7.9 kg |
Compare to Similar Items
| Models | WS-C3850-48P-S | WS-C3850-48T-S |
| Feature Set | IP Base | IP Base |
| Network SFP uplink module selection |
C3850-NM-4-1G
C3850-NM-2-10G C3850-NM-4-10G |
C3850-NM-4-1G
C3850-NM-2-10G C3850-NM-4-10G |
| Ports | 48 x 10/100/1000 Ethernet ports | 48 x 10/100/1000 Ethernet ports |
| Available PoE Power | 435W | N/A |
WS-C3850-48P-S Specification
WS-C3850-48P-S Specifications |
|
|
model info: |
WS-C3850-48P-S |
|
enclosure type |
Rack-mountable – 1U |
|
Ports |
48 x 10/100/1000 (POE+) |
|
Network management Interface |
● Ethernet management port: RJ-45 connectors, 4-pair Cat-5 UTP cabling |
|
Available PoE Power |
435W |
|
Switching Capacity |
176Gbps |
|
Maximum stacking number |
up to 9 switches with same IOS feature set in same series |
|
Stack Bandwidth |
480Gbps |
|
Forwarding Performance |
130.95Mpps |
|
FNF (Flexible NetFlow) entries |
48,000 flows |
|
Maximum VLANs IDs |
1000 |
|
MAC Address Table Size |
32K |
|
CPU |
Multicore CPU |
|
RAM |
4 G |
|
Flash Memory |
2 G |
|
Wireless |
|
|
Number of AP per switch/stack |
100 |
|
Number of wireless clients per switch/stack |
2000 |
|
Total number of WLANs per switch |
64 |
|
Wireless bandwidth per switch |
up to 40Gbps |
|
Supported Aironet AP series |
3600, 3500, 2600, 1600, 1260, 1140, 1040 |
|
Expansion / Connectivity |
|
|
Console ports |
USB (Type-B), Ethernet (RJ-45) |
|
Expansion Slot(s) |
1 network module slot and 1 power redundant slot |
|
Network Modules Selection |
● C3850-NM-4-1G: 4 x 1G uplinks network module |
|
Stacking cable |
●STACK-T1-50CM StackWise stacking cable with a 0.5 m length |
|
Stack Power Cable (recommended) |
●CAB-SPWR-30CM stack power cable with a 30CM length |
|
Power supply |
PWR-C1-715WAC |
|
Power Device |
Power supply – redundant – plug-in module |
|
Power Redundancy |
optional |
|
Voltage range (Auto) |
100V-240V |
|
Power Consumption of standalone(in Watts) |
135.96 (Max) |
|
Miscellaneous |
|
|
Width |
17.5 Inches (44.5 cm) |
|
Depth |
17.7 Inches (44.5 Cm) |
|
Height |
1.75 Inches (4.45 cm) |
|
Weight |
17.4 Pounds (7.9Kg) |
|
Rack Mounting Kit |
optional |
|
MTBF in hours |
241,050 |
The Modules, Licenses and Accessories
| Models | Description |
| C3850-NM-4-1G | Cisco 3850 Series 4 x 1GE Network Module |
| C3850-NM-2-10G | Cisco 3850 Series 2 x 10GE Network Module |
| C3850-NM-4-10G | Cisco 3850 Series 4 x 10GE Network Module |
| L-C3850-48-S-E= | C3850-48 IP Base to IP Services Electronic RTU License |
| PWR-C1-715WAC | Cisco 3850 Series Power Supply 715W AC |
| PWR-C1-715WAC/2 | Cisco 3850 Series Secondary Power Supply 715W AC Config 1 Secondary Power Supply |
| CAB-SPWR-30CM | Catalyst 3750X and 3850 Stack Power Cable 30 CM |
| CAB-SPWR-150CM | Catalyst 3750X and 3850 Stack Power Cable 150 CM |
| STACK-T1-50CM= | Cisco StackWise-480 50cm stacking cable for Cisco Catalyst 3850 series switch |
| STACK-T1-1M= | Cisco StackWise-480 1m stacking cable for Cisco Catalyst 3850 series switch |
