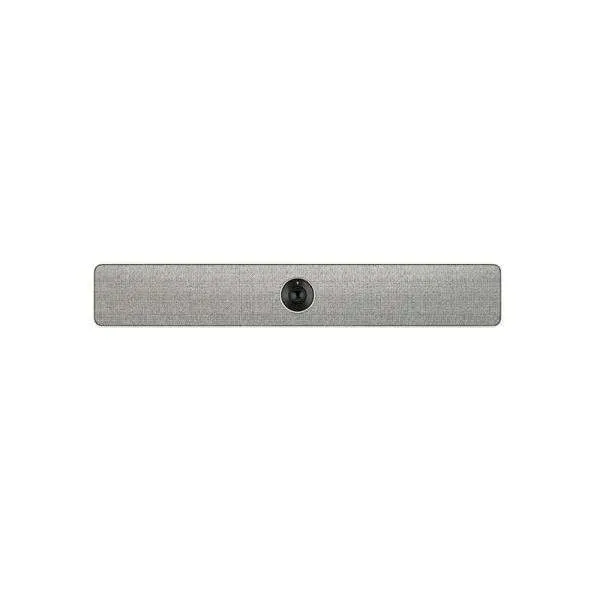

The Cisco Room Kit Mini is a powerful video collaboration bar that extends huddle space collaboration with a 120º camera, noise suppression, and auto framing of participants.


Device Type Video conferencing kit
VoIP Protocols H.323
Voice Codecs G.711, G.722, G.729, G.722.1, AAC-LD, Opus
Video Codecs H.264, H.265, H.239
Quality of Service IEEE 802.1Q (VLAN), Differentiated Services (DiffServ), IEEE 802.1p
Network Protocols HTTP, DNS, HTTPS, NTP
Dimensions & Weight Details Codec – Width 50 cm Depth 7.7 cm Height 8.1 cm Weight 1.5 kg
Digital Signaling Protocol SIP, H.245, H.460.18, H.460.19, BFCP
Data Compression Protocol G.711, G.722, H.263, H.264, G.722.1
Video Input
Type Digital video camera (colour) – integrated
Interface Type HDMI
Digital Video Capture Resolution 3840 x 2160
Video Modes 4K/1080p
Digital Zoom 2
Features Face detection, automatic brightness adjustment, auto white balance, Auto Focus, 120° field of view
Video Output
Type Codec board – external
Supported Display Graphics HDTV (1920×1080), UHD (3840 x 2160)
Digital Video Standard High-Definition Multimedia Interface (HDMI)
Audio Input
Type Microphones – integrated
Audio Output
Type Speaker(s)
Audio Amplifier Integrated
Output Power / Channel 24 Watt
Frequency Response 70 – 20000 Hz
Input Device
Type 10″ touchscreen
Connectivity Technology Wired
Connectivity Technology Wireless, wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0, IEEE 802.11ac
Network / Transport Protocol NTP, DHCP, DNS, HTTP, HTTPs
Features DiffServ support, IPv6 support, Quality of Service (QoS), SSH support, IPv4 support, Class of Service (CoS), automatic gain control (AGC), 802.1x authentication, URI Dialing, CEC 2.0 support
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
Expansion / Connectivity
Interfaces 1 x audio / video – HDMI input – 19 pin HDMI Type A ¦ 2 x network – Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ 1 x USB 2.0 ¦ 1 x USB-C – USB 2.0
Compliant Standards EMC, AES, RoHS, WEEE
Power Device Power supply
Voltage Required AC 120/230 V (50/60 Hz)
Dimensions & Weight (Shipping)
Shipping Width 60.5 cm
Shipping Depth 21.6 cm
Shipping Height 32.6 cm
Shipping Weight 3.2 kg
Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 40 °C
Humidity Range Operating 10 – 90%
