CSE-216BE1C-R609JBOD

Sale!

CSE-216BE1C-R609JBOD

$4,810.00

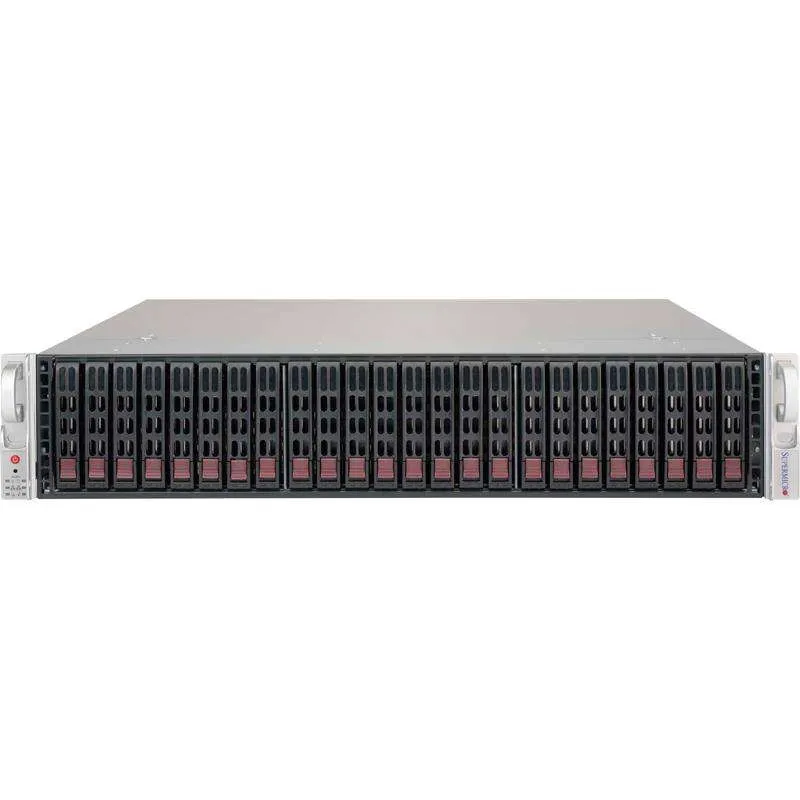

The SC216B JBOD storage enclosure Is designed to scale your Supermicro server storage expansion capacity. In a 2U form factor, it offers twenty-four hot-swap 2.5″ SAS/SATA hard drive bays, without compromising superior cooling capabilities.

Main Specifications
Device Type SuperChassis
Form Factor 2U JBOD storage chassis
Dimensions (WxDxH) Height 3.5″ (89 mm) x Width 17.2″ (437 mm) x Depth 24.8″ (630 mm)
Weight 61 lbs (27.7 kg)
Enclosure Color Black
Expansion / Connectivity
Expansion Bays Total (Free) 24x 2.5″ hot-swap HDD bay for JBOD solution
On-Board Devices
Qualified SAS Controllers AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter (not included)
AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller (not included)
Backplane
SAS/SATA HDD Backplane 24-Port 2U SAS3 12Gbps single-expander backplane, support up to 24x 2.5-inch SAS3/SATA3 HDD/SSD
Front Panel
Buttons Power On/Off button, System Reset Button, Unit Identification (UID) button
LEDs 1 Network Activity LEDs
System Cooling
Fans/Air Shroud 3x 80x38mm hot-swap cooling fans
System Monitoring
System Monitoring IPMI
Environmental
Operating Environment Operating Temperature Range: 5°C – 35°C (41°F – 95°F)
Non-Operating Temperature Range: -40°C – 70°C (-40°F – 158°F)
Operating Relative Humidity Range: 8% – 90% (non-condensing)
Non-Operating Relative Humidity Range: 5% – 95% (non-condensing)
Power Supply
Power Supply 600W / 650W 1U Redundant Power Supply
Certification 80PLUS Platinum Certified
Regulatory (Power Supply)
Power Supply Safety / EMC BSMI, CCC, CE/EMC, FCC
Parts List – (Items Included)
Air Shroud 1x MCP-310-29001-0N
Bracket(s) 1x MCP-320-82601-0N, 1x MCP-120-84702-0N, 1x MCP-120-84705-0N
Hard Drive Backplane 1x BPN-SAS3-216EL1
Control Boards 1x CSE-PTJBOD-CB3
Front Panel Control 1x FPB-FP826-D, 1x TB826
Drive Tray(s) 1x MCP-290-82607-0N, 24x MCP-220-00047-0B
Mounting Rails 1x MCP-410-00007-0N, 1x MCP-290-00053-0N, 1x MCP-290-00060-0N
Rear Window 1x MCP-240-82608-0N
Power Distributor(s) 1x PDB-PT216-2824
Power Supply Number 2x PWS-609P-1R2
Cable(s) 1x CBL-0071L, 3x CBL-0088, 2x CBL-0160L, 1x CBL-0182L, 1x CBL-0217L, 1x CBL-CDAT-0601, 1x CBL-NTWK-0587, 4x CBL-SAST-0532
Parts 1x MCP-230-82602-0N, 1x MCP-290-00088-0N, 7x MCP-120-00062-0N, 1x MCP-260-00011-0N
