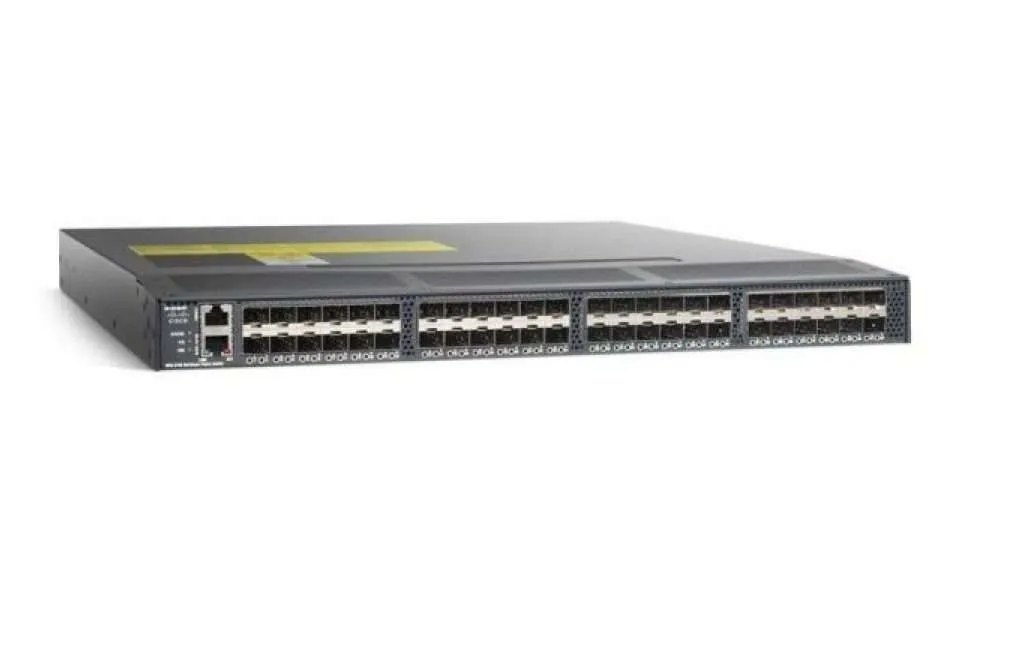

DS-C9148S-12PK9

Key Features :

• Enclosure Type : Rack-mountable 1u
• Subtype : Fibre Channel
• Ports : 12 X 16gb Fibre Channel Sfp+
• Fibre Channel : Fc-da, Fc-fla, Fc-fs, Fc-gs-3, Fc-gs-4, Fc-mi, Fc-ph, Fc-ph-2, Fc-ph-3, Fc-pi, Fc-plda, Fc-sb-2, Fc-sb-3, Fc-sw-2, Fc-sw-3, Fc-tape, Fc-vi, Fc-sp, Fcp-4, Fc-bb-2, Fcp, Fcp-2, Fc-pi-2, Fc-bb-5, Fc-bb-3, Fc-fs-2, Fc-gs-5, Fc-sw-4, Fcp-3, Fc-ls, Fc-mi-2, Fc-pi-4, Fc-fs-3, Fc-gs-6, Fc-pi-3, Fc-sw-5, Fc-bb-4, Fc-ifr, Fais, Fais-2, Fc-pi-5, Fc-ls-2, Fc-sp-2, Fc-sb-4, Fc-da-2, Fc-mi-3, Fc-msqs, Fc-bb-6
• Remote Management Protocol : Rmon, Snmp 3, Http, Smi-s, Ssh-2, Cli
• Encryption Algorithm : Aes
• Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2), Ldap, Active Directory
• Features : Auto-sensing Per Device, Isl Support, Virtual Route Redundancy Protocol (vrrp) Support, Access Control List (acl) Support, Quality Of Service (qos), Back To Front Airflow, Remote Switch Port Analyzer (rspan), Role Based Access Control, Registered State Change Notification (rscn) Support, Sftp Client

  Expansion / Connectivity :
  Interfaces

• 1 X 1000base-t Rj-45 Management
• 1 X Serial (rs-232) Rj-45 Management
• 1 X Usb Type A
• 12 X 16gb Fibre Channel Sfp+
• 36 X 16gb Fibre Channel Sfp+ Ports On Demand

  Power :

• Power Device : Internal Power Supply – Hot-plug
• Installed Qty : 2 (installed) / 2 (max)
• Power Redundancy : Yes
• Power Redundancy Scheme : 1+1
• Power Provided : 300 Watt
• Voltage Required : Ac 120/230 V (50/60 Hz)
