EG8141A5

EG8141A5

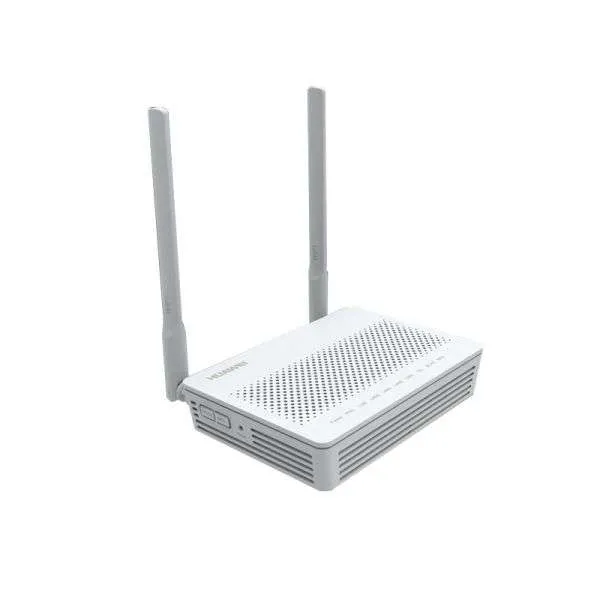

The Huawei EchoLife EG8141A5 is a routing wide type ONT in the Huawei all-optical access solution. It uses the GPON technology to apply ultra-broadband access for users, and offer 1 GE port, 3 FE ports, 1 POTS port and 1 2.4G WiFi port. The high forwarding performance make sure the user experience of data and high quality HD video services, and offer customers with an perfect all-optical access solution.

EG8141A5

EG8141A5

Product Detail of EG8141A5

















GPON Port

Class B+

Receiver sensitivity: -27 dBm

Overload optical power: -8 dBm

Wavelengths: US 1310 nm, DS 1490 nm

Wavelength blocking filter (WBF) of G.984.5

Flexible mapping between GEM Port and TCONT

GPON: consistent with the SN or password authentication defined in G.984.3

Bi-directional FEC

SR-DBA and NSR-DBA

Type B (single-homing & dual-homing)













Ethernet Port

Ethernet port-based VLAN tags and tag removal

1:1 VLAN, N:1 VLAN, or VLAN transparent transmission

QinQ VLAN

Limit on the number of learned MAC addresses

MAC address learning

GE: Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s

FE: Auto-adaptive 10 Mbit/s, 100 Mbit/s













POTS Port



Maximum REN: 4

G.711A/μ, G.729a/b and G.722 encoding/decoding

T.30/T.38/G.711 fax mode

DTMF

Emergency calls (with the SIP protocol)













WLAN

IEEE 802.11 b/g/n

2 x 2 MIMO

Antenna gain: 5 dBi

WMM

Multiple SSIDs

WPS

Air interface rate: 300 Mbps











Smart interconnection

Smart Wi-Fi coverage

SIP/H.248 auto-negotiation

Any port any service

Parental control

L2/L3(IPv4) forwarding: 1G uplink, 1.3G downlink







Smart service

Smart Wi-Fi sharing:

Portal/802.1x authentication

SoftGRE-based sharing

Scheduled Wi-Fi shutdown













Smart O&M

IPTV video quality diagnosis

Rogue ONT detection and isolation from the OLT

Call emulation, and circuit test and loop-line test

PPPoE/DHCP simulation testing

WLAN emulation

eSight management















Layer 3 Features



• PPPoE/Static IP/DHCP

• NAT/NAPT

• Port forwarding

• ALG, UPnP

• DDNS/DNS server/DNS client

• IPv6/IPv4 dual stack, and DS-Lite

• Static/Default routes

• Multiple services on one WAN port



Multicast



IGMP v2/v3 proxy/snooping

MLD v1/v2 snooping





QoS

Ethernet port rate limitation

802.1p priority

SP/WRR/SP+WRR

Broadcast packet rate limitation





Security

SPI firewall

Filtering based on MAC/IP/URL addresses





Common O&M

OMCI/Web UI/TR069

Variable-length OMCI messages

Dual-system software backup and rollback





Power Saving



Indicator power saving

COC V5

EG8141A5 Specification



EG8141A5 Specification

Dimensions (H x W x D) 30 mm x 152 mm x 105 mm
(without an external antenna and pads)
Operating temperature 0°C to +40°C
Operating humidity 5% RH to 95% RH (non-condensing)
Power adapter input 100–240 V AC, 50/60 Hz
System power supply 11–14 V DC, 1 A
Static power consumption 3.1 W
Max power consumption 7.15 W
NNI GPON
UNI 1POTS + 1GE + 3FE + 2.4G Wi-Fi
Optical Connector SC/APC
Indicators POWER/PON/LOS/LAN/TEL/WLAN/WPS

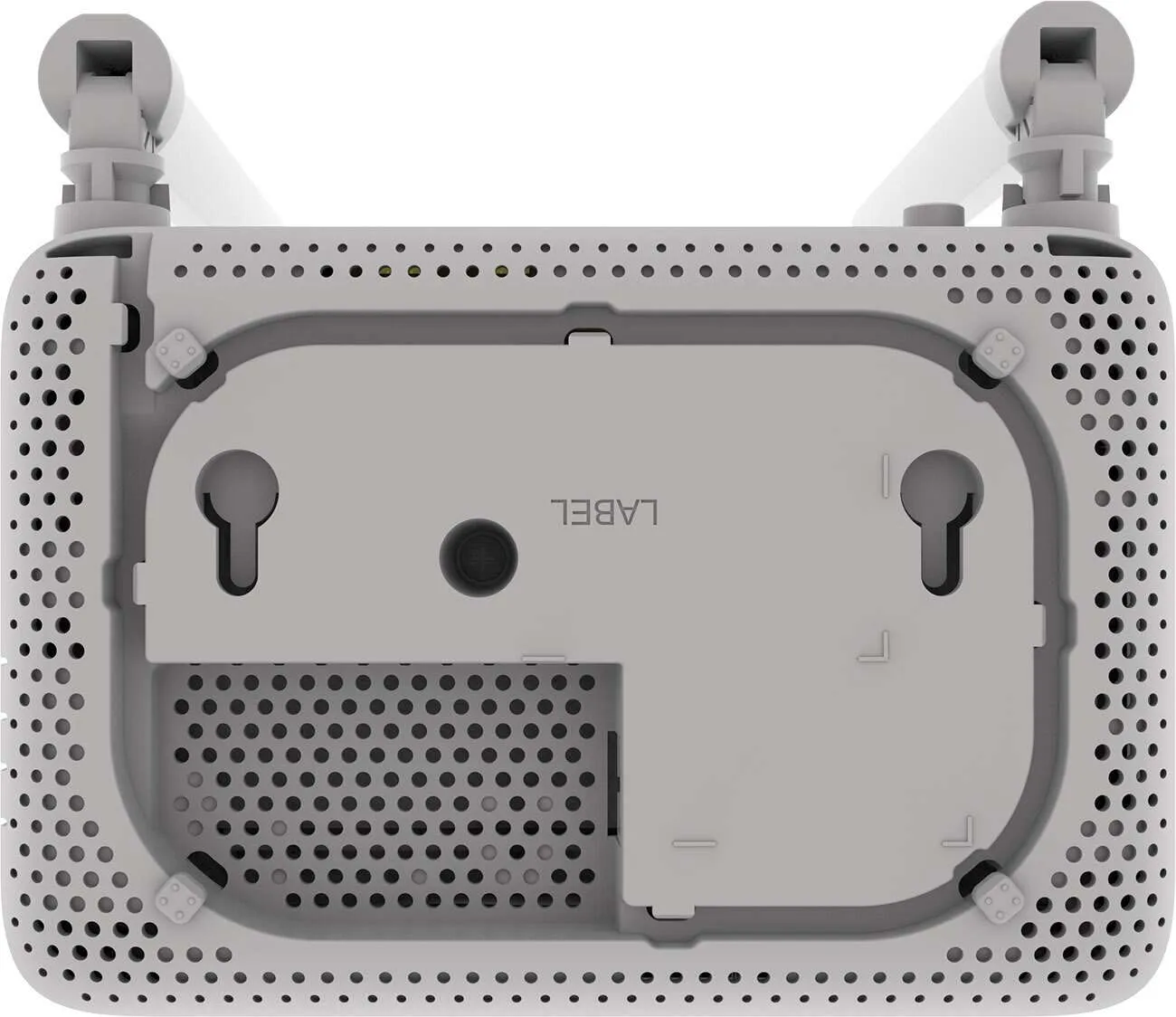

Installation mode On the desk, or on the wall
Compliance certification CE/Wi-Fi

EG8141A5 Datasheet
