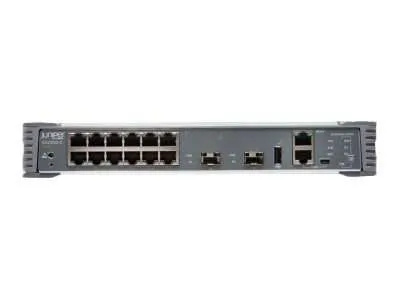

EX2300-C-12T

Sale!

EX2300-C-12T

$1,375.00

The Juniper Networks EX2300-C Ethernet Switch offers an economical, entry-level solution in a compact, fanless form factor for access layer deployments in branches, retail, and workgroup environments

The Juniper Networks EX2300-C Ethernet Switch offers an economical, entry-level solution in a compact, fanless form factor for access layer deployments in branches, retail, and workgroup environments. To simplify network operations, the EX2300-C is hardware-ready to act as a satellite device to support a Juniper Networks Junos Fusion Enterprise deployment, which can combine several wiring closets into one logical management platform. For smaller deployments, the EX2300 also supports Juniper Networks Virtual Chassis technology, allowing up to four interconnected switches to be managed as a single logical device, delivering a scalable, pay-as-you-grow solution for expanding networks. The Juniper Networks EX2300-C Ethernet Switch delivers a compact, silent, and power-efficient platform for low-density branch deployments and commercial access or enterprise workgroup environments outside the wiring closet. Featuring 12 10/100/1000BASE-T access ports and two 10GbE uplink ports in a fanless design, the EX2300-C switch delivers a powerful solution for supporting services such as unified communications, IP telephony, closed circuit television (CCTV), and other applications in office, classroom, hospitality, and other space and wiring-constrained environments.

Device Type
Switch – 12 ports – L3 – managed
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
12 x 10/100/1000 + 2 x Gigabit SFP / 10 Gigabit SFP+
Performance
Switching capacity: 64 Gbps ¦ Throughput: 47 Mpps
Capacity
LAG groups: 128 ¦ Maximum member ports per LAG: 8 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ ARP entries: 1024 ¦ IPv4 routes (Unicast): 512 ¦ IPv4 hosts: 4096 ¦ IPv4 routes (Multicast): 2048 ¦ Maximum of neighboring networks: 750 ¦ IPv6 routes (Unicast): 128 ¦ IPv6 hosts: 2048 ¦ IPv6 routes (Multicast): 1024 ¦ QoS hardware queues per port: 8 ¦ IGMP snooping entries: 1000 ¦ Virtual interfaces (VLANs): 2048
MAC Address Table Size
16000 entries
Jumbo Frame Support
9216 bytes
Routing Protocol
RIP-1, RIP-2, OSPFv3, static IPv4 routing, static IPv6 routing, RIPng, CIDR
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI
Encryption Algorithm
MD5, TLS, PEAP, TTLS
