The Juniper Networks EX4400 line of Ethernet switches offers a secure, cloud-ready portfolio of access switches ideal for enterprise branch, campus, and data center networks. The EX4400 switches combine the simplicity of the cloud, the power of Mist AI, and a robust hardware foundation with best-in-class security and performance to deliver a differentiated approach to access switching in the cloud, mobile, and IoT era. With Juniper Mist Wired Assurance, the EX4400 can be effortlessly onboarded, configured, and managed from the cloud. This simplifies operations, improves visibility, and ensures a much better experience for connected devices.

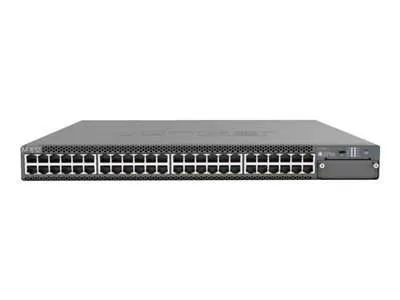

  •  Product DescriptionJuniper Networks EX Series EX4400-48MP – switch – 48 ports – managed – rack-mountable
  •  Device TypeSwitch – 48 ports – L3 – managed – stackable
  •  Enclosure TypeFront to back airflow rack-mountable 1U
  •  Subtype10 Gigabit Ethernet
  •  Ports12 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 36 x 100/1000/2.5G (PoE++) + 2 x 100 Gigabit (uplink / stacking)
  •  Power Over Ethernet (PoE)PoE++
  •  PoE Budget1300 W
  •  PerformanceSwitching capacity (64-byte packet size, unidirectional): 510 Gbps ¦ Switching capacity (64-byte packet size, bidirectional): 1020 Gbps ¦ Layer 2 / layer 3 throughput (64-byte packet size): 758 Mpps
  •  CapacityVSTP instances: 510 ¦ MST instances: 64 ¦ Maximum member ports per LAG: 16 ¦ ARP entries: 24000 ¦ IPv4 routes (Unicast): 130048 ¦ IPv4 hosts (Unicast): 81000 ¦ IPv4 routes (Multicast): 40000 ¦ IPv6 neighbor discovery: 12000 ¦ IPv6 routes (Unicast): 87000 ¦ Host IPv6 routes (Unicast): 40000 ¦ IPv6 routes (Multicast): 20000 ¦ VLANs supported: 4093
  •  MAC Address Table Size112000 entries
  •  Jumbo Frame Support9216 bytes
  •  Routing ProtocolOSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, static IP routing, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, RIPng, MLD, Bidirectional Forwarding Detection (BFD), CIDR, BGP for IPv6, MSTP, RSTP, STP
  •  Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH-2, CLI, NTP, ICMP, DHCP, IPv4, IPv6, RSTP, TACACS+, RADIUS
  •  FeaturesFlow control, firewall protection, auto-sensing per device, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, DiffServ support, store and forward, IPv6 support, High Availability, Deep Packet Inspection (DPI), Weighted Random Early Detection (WRED), sFlow, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, event log, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, DHCP proxy, Dynamic ARP Inspection (DAI), temperature sensor, Redundant trunk group (RTG), Time Domain Reflectometry (TDR), Non-Stop Bridging (NSB), Non-Stop Routing (NSR), Graceful Route Engine Switchover (GRES), Per-VLAN Spanning Tree Plus (PVST+), IPv4 support, DHCP relay, DHCP client, Management Information Base (MIB), Multiple VLAN Registration Protocol (MVRP), Neighbor Discovery Protocol (NDP), VLAN Spanning Tree Protocol (VSTP), redundant hot swappable fans, Class of Service (CoS), Strict Priority (SP), Captive Portal, DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), 2 fans, Uplink Failure Detection (UFD), IP source guard, Explicit Congestion Notification (ECN), ICMP Router Discovery Protocol (IRDP), Secure Copy (SCP), Virtual Extensible LAN (VXLAN), Link Aggregation, Ethernet Virtual Private Network (EVPN), MAC address learning, policy based routing, Authentication, Authorization and Accounting (AAA), Weighted Deficit Round Robin (WDRR), Voice VLAN, LLDP-MED, RA guard, proxy ARP, DHCP Helper, Weighted Round Robin (WRR), Routed VLAN Interface (RVI), VLAN Tagging, port-based VLAN, PVLAN support, DDoS Protection, flooding detection, Media Access Control Security (MACsec), Junos Telemetry Interface (JTI), MAC Learning Disable, DNS support, Multiple Registration Protocol (MRP)
  •  Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ae, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.3at, ITU-T G.8032, IEEE 802.3bt
  •  PowerAC 100-120/200-240 V
  •  Power RedundancyYes
  •  Dimensions (WxDxH)17.4 in x 16.9 in x 1.7 in
