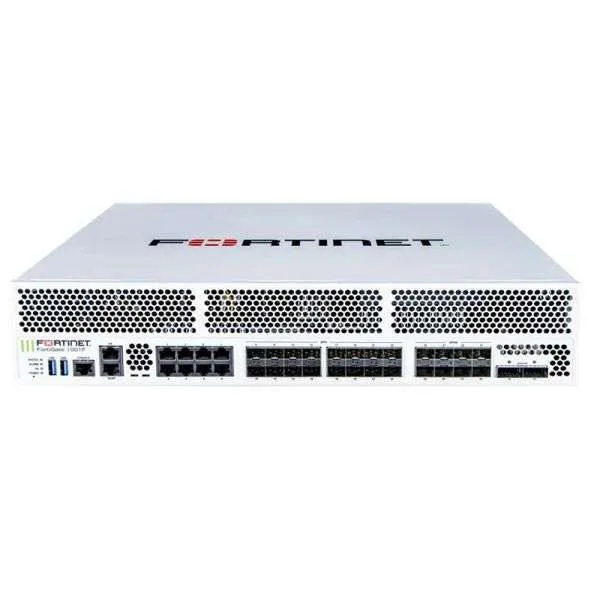

FG-1000F

Sale!

FG-1000F

Original price was: $24,000.00.Current price is: $20,380.00.

2x 100GE QSFP28 slots , 8x 25GE SFP28 slots, 16x 10GE SFP+ slots, 8x 10GE BASE-T RJ45 ports, 1x 1GE MGMT port, 1x 2.5GE HA port, SPU NP7 and CP9 hardware accelerated, dual AC power supplies.

General
Device Type Security appliance
Bundled Services 3 years 24×7 FortiCare Support + 3 years FortiGuard Unified Threat Protection (UTP)
Height (Rack Units) 2U
Width 17.4 in
Depth 17.6 in
Height 3.5 in
Weight 21.94 lbs
Processor / Memory / Storage
Processors Installed Fortinet FortiASIC CP9/NP7
Networking
Form Factor Rack-mountable
Airflow Direction Front to back airflow
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, 25 Gigabit Ethernet
Network / Transport Protocol TCP/IP, UDP/IP, IPSec, HTTP, HTTPs, IPv4, IPv6
Remote Management Protocol HTTP, HTTPS
Performance IPS throughput: 19 Gbps | NGFW throughput: 15 Gbps | Threat protection throughput: 13 Gbps | IPv4 firewall throughput (1518-byte UDP): 198 Gbps | IPv4 firewall throughput (512-byte UDP): 196 Gbps | IPv4 firewall throughput (64-byte UDP): 134 Gbps | IPv6 firewall throughput (1518-byte UDP): 198 Gbps | IPv6 firewall throughput (512-byte UDP): 196 Gbps | IPv6 firewall throughput (86-byte UDP): 134 Gbps | Firewall latency (64-byte UDP): 3.45 µs | Firewall throughput: 201 Mpps | VPN throughput (512-bit IPSec): 55 Gbps | VPN throughput (SSL): 5.3 Gbps | SSL inspection throughput: 10 Gbps | Application control throughput: 44 Gbps | CAPWAP throughput: 65 Gbps
Capacity Concurrent TCP sessions: 7500000 | New TCP sessions per second: 650000 | Firewall policies: 100000 | Gateway to gateway IPSec VPN Tunnels: 20000 | Client to gateway IPSec VPN tunnels: 100000 | Concurrent SSL VPN users: 10000 | SSL inspection CPS: 11000 | SSL inspection concurrent sessions: 600000 | Virtual domains: 10 | Maximum virtual domains: 250 | Number of FortiSwitches: 196 | Number of FortiAP devices: 4096 | Number of FortiAP devices (tunnel): 1024 | Number of FortiToken devices: 20000
Status Indicators Power, status, alarm, HA
Features VPN support, High Availability, Trusted Platform Module (TPM), CAPWAP support, Zero Trust Network Access (ZTNA)
Encryption Algorithm SSL, 256-bit AES, 256-bit SHA, TLS 1.3
Expansion / Connectivity
Interfaces 2 x USB – Type A | 1 x console – RJ-45 | 1 x 1 Gigabit Ethernet/10Gb Ethernet (management) – RJ-45 | 1 x 1/2.5 Gigabit Ethernet (High Availability) – RJ-45 | 8 x 100M/1G/2.5/5/10 Gigabit Ethernet – RJ-45 | 16 x 1000Base-X/10GBase-X – SFP/SFP+ | 8 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet – SFP/SFP+/SFP28 | 2 x 40Gb Ethernet/100Gb Ethernet – QSFP+/QSFP28
Miscellaneous
Included Accessories 2 SX SFP transceivers
Compliant Standards UL, VCCI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 A, RCM, USGv6, ICSA SSL-VPN, ICSA IPS, IPv6
Power
Power Device Internal power supply – hot-plug
Installed Qty 2
Max Supported Qty 2
Power Redundancy Yes
Voltage Required AC 100-240 V (50/60 Hz)
Power Consumption Operational 210 Watt
80 PLUS Certification 80 PLUS
