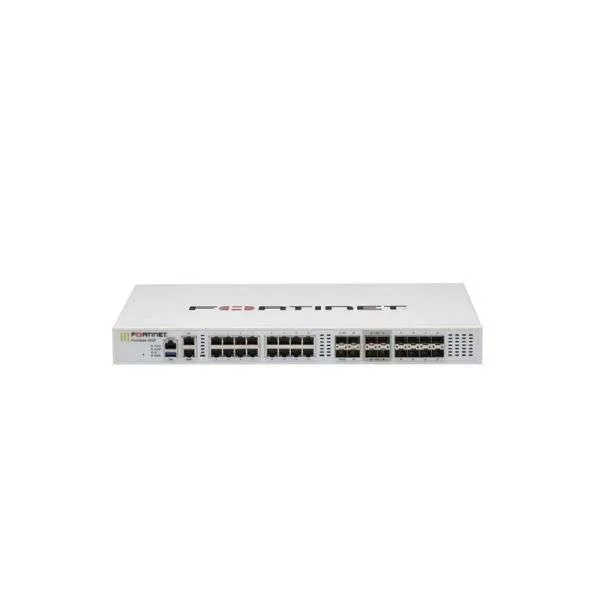

FG-400F

Sale!

FG-400F

Original price was: $10,400.00.Current price is: $7,600.00.

The FortiGate 400F Series NGFW combines AI-powered security and machine learning to deliver Threat Protection at any scale. Get deeper visibility into your network and see applications, users, and devices before they become threats.

FortiGate 400F FortiGate 401F
Interfaces and Modules
Hardware Accelerated GE RJ45 Interfaces 16
Hardware Accelerated GE SFP Slots 8
Hardware Accelerated 10GE SFP+ Slots 4
Hardware Accelerated 10GE SFP+ Ultra Low Latency Slots 4
GE RJ45 Management Ports 2
USB Ports 1
RJ45 Console Port 1
Onboard Storage NIL 2x 480 GB SSD
Trusted Platform Module (TPM) Yes Yes
Included Transceivers 2x SFP (SX 1 GE)
System Performance — Enterprise Traffic Mix
IPS Throughput 12 Gbps
NGFW Throughput 10 Gbps
Threat Protection Throughput 9 Gbps
System Performance and Capacity
IPv4 Firewall Throughput
(1518 / 512 / 64 byte, UDP)
79.5 / 78.5 / 70 Gbps
IPv6 Firewall Throughput
(1518 / 512 / 64 byte, UDP)
79.5 / 78.5 / 70 Gbps
Firewall Latency (64 byte, UDP) 4.19 μs / 2.5 μs
Firewall Throughput (Packet per Second) 105 Mpps
Concurrent Sessions (TCP) 7.8 Million
New Sessions/Second (TCP) 500,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte) 55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
Client-to-Gateway IPsec VPN Tunnels 50,000
SSL-VPN Throughput 3.6 Gbps
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)
5,000
SSL Inspection Throughput (IPS, avg. HTTPS) 8 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 6,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 800,000
Application Control Throughput (HTTP 64K) 28 Gbps
CAPWAP Throughput (HTTP 64K) 65 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 72
Maximum Number of FortiAPs (Total / Tunnel) 512 / 256
Maximum Number of FortiTokens 5,000
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 1.75 x 17.0 x 15.0
Height x Width x Length (mm) 44.45 x 432 x 380
Weight 14.11 lbs (6.4 kg) 14.33 lbs (6.5 kg)
Form Factor Rack Mount, 1 RU
Power Consumption (Average / Maximum) 154.8 W / 189.2 W 161.1 W / 196.9 W
Power Source 100–240V AC, 50/60Hz
Current (Maximum) 6A
Heat Dissipation 645.58 BTU/h 671.85 BTU/h
Power Supply Efficiency Rating 80Plus Compliant
Redundant Power Supplies (Hot Swappable) (Default dual AC PSU for 1+1 Redundancy)
Operating Environment and Certifications
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 5–90% non-condensing
Noise Level LPA 48 dBA / LWA 55 dBA
Operating Altitude Up to 10 000 ft (3048 m)
Noise Level LPA 48 dBA / LWA 55 dBA
Airflow Side and Front to Back
Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6
