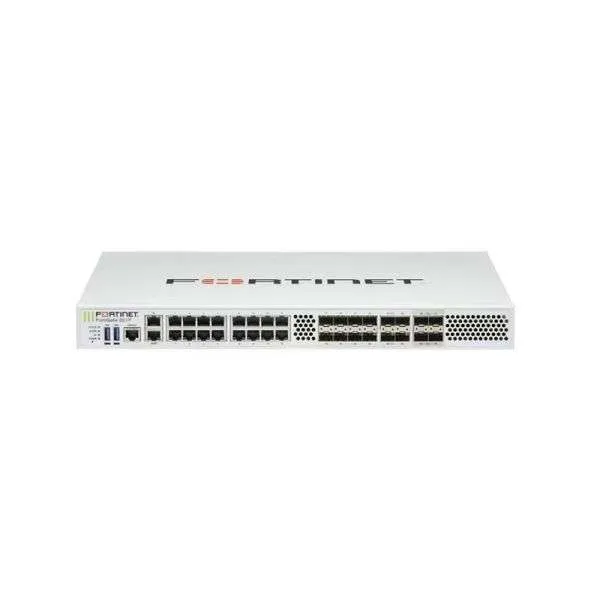

FG-600F

Sale!

FG-600F

$9,720.00

The FortiGate 600F series provides an application-centric, scalable, and secure SD-WAN solution with Next Generation Firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or branch level. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

FortiGate 600F FortiGate 601F
Interfaces and Modules
Hardware Accelerated GE RJ45 Interfaces 16
Hardware Accelerated GE SFP Slots 8
Hardware Accelerated 10GE SFP+ Slots 4
Hardware Accelerated 25GE SFP28/ 10GE SFP+/ GE SFP Ultra Low Latency Slots 4
USB Ports 2
RJ45 Console Port 1
Local Storage NIL 2x 240 GB SSD
Included Transceivers 2x SFP (SX 1 GE)
System Performance — Enterprise Traffic Mix
IPS Throughput 14 Gbps
NGFW Throughput 11.5 Gbps
Threat Protection Throughput 10.5 Gbps
System Performance and Capacity
IPv4 Firewall Throughput
(1518 / 512 / 64 byte, UDP)
139 / 137.5 / 70 Gbps
IPv6 Firewall Throughput
(1518 / 512 / 64 byte, UDP)
139 / 137.5 / 70 Gbps
Firewall Latency (64 byte, UDP) 4.12 μs
Firewall Throughput (Packet per Second) 105 Mpps
Concurrent Sessions (TCP) 8 Million
New Sessions/Second (TCP) 550,000
Firewall Policies 10,000
IPsec VPN Throughput (512 byte) 55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 2,000
Client-to-Gateway IPsec VPN Tunnels 50,000
SSL-VPN Throughput 4.3 Gbps
Concurrent SSL-VPN Users
(Recommended Maximum, Tunnel Mode)
10,000
SSL Inspection Throughput (IPS, avg. HTTPS) 9 Gbps
SSL Inspection CPS (IPS, avg. HTTPS) 7,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 840,000
Application Control Throughput (HTTP 64K) 32 Gbps
CAPWAP Throughput (HTTP 64K) 64.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 96
Maximum Number of FortiAPs (Total / Tunnel) 1,024 / 512
Maximum Number of FortiTokens 5,000
High Availability Configurations Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 1.75 x 17.0 x 15.0
Height x Width x Length (mm) 44.45 x 432 x 380
Weight 15.6 lbs (7.3 kg) 16.2 lbs (7.5 kg)
Form Factor Rack Mount, 1 RU
Power Consumption (Average / Maximum) 169 W / 255 W 174 W / 260 W
Power Source 100–240V 60–50Hz
Current (Maximum) 6A @ 100V
Heat Dissipation 871 BTU/h 888 BTU/h
Redundant Power Supplies (Hot Swappable) Yes
Operating Environment and Certifications
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 5–90% non-condensing
Noise Level 55 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6
