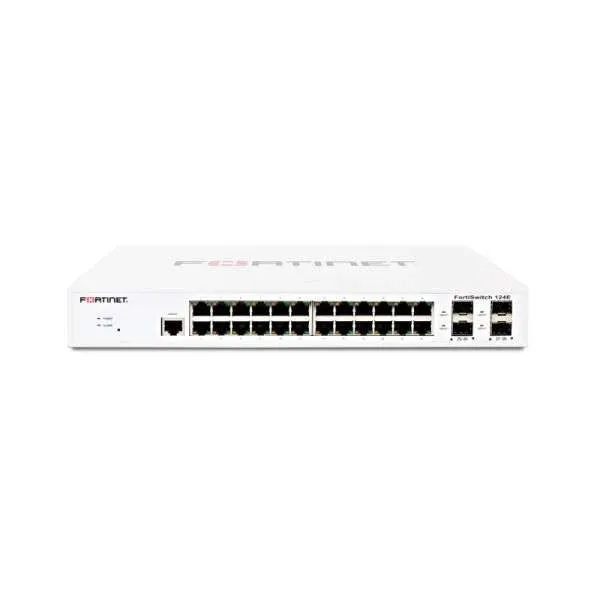

Name: FS-124E-POE | Fortinet Switch100 Series
Price: 530.00 USD
Availability: InStock

Product Code	FS-124E
Total Network Interfaces	24x GE RJ45 and 4x GE SFP
Height x Depth x Width (inches)	1.7 x 8.2 x 13
Power Required	100–240V AC, 50–60 Hz
Power Supply	AC Built in
Power Consumption (Average / Maximum)	15.83 W /17.79 W

Comparison of FS-124E

Module	FS-124E	FS-124E-POE
Total Network Interfaces	24x GE RJ45 and 4x GE SFP	24x GE RJ45 and 4x GE SFP
Height x Depth x Width (inches)	1.7 x 8.2 x 13	1.7 x 12.2 x 17.3
Power Required	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz
Power Supply	AC Built in	AC Built in
Power Consumption (Average / Maximum)	15.83 W /17.79 W	202.78 W / 205.45 W

FS-124E Specification

FS-124E Specification
Hardware Specifications
Total Network Interfaces	24x GE RJ45 and 4x GE SFP
Dedicated Management 10/100 Port	0
RJ-45 Serial Console Port	1
Form Factor	1 RU Rack Mount
Power over Ethernet (PoE) Ports	0
PoE Power Budget	0
Mean Time Between Failures	> 10 years
System Specifications
Switching Capacity (Duplex)	56 Gbps
Packets Per Second (Duplex)	83 Mpps
MAC Address Storage	8 K
Network Latency	4µs
VLANs Supported	4 K
Link Aggregation Group Size	8
Total Link Aggregation Groups	8
Packet Buffers	512 KB
DRAM	256 MB DDR3
FLASH	32 MB
Hardware Specifications
Height x Depth x Width (inches)	1.7 x 8.2 x 13
Height x Depth x Width (mm)	44 x 209 x 330
Hardware Specifications
Power Required	100–240V AC, 50–60 Hz
Power Supply	AC Built in
Redundant Power	—
Power Consumption (Average / Maximum)	15.83 W /17.79 W
Heat Dissipation	54 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-40–158°F (-40–70°C)
Humidity	10–90% non-condensing
