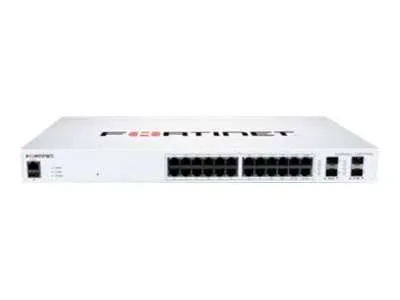

- Product DescriptionFortinet FortiSwitch 124F-POE – switch – 24 ports – managed – rack-mountable
- Device TypeSwitch – 24 ports – managed
- Enclosure TypeSide to back airflow rack-mountable 1U
- SubtypeGigabit Ethernet
- Ports24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
- Power Over Ethernet (PoE)PoE+
- PoE Budget185 W
- PerformanceSwitching capacity: 128 Gbps ¦ Packets per second: 190 Mpps ¦ Latency: < 1 µs
- CapacityVLANs supported: 4000 ¦ Link aggregation groups: 8
- MAC Address Table Size32K entries
- Jumbo Frame SupportYes
- Remote Management ProtocolSNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH
- FeaturesFlow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), STP Root Guard, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, 2MB packet buffer, 802.1x authentication, Storm Control, LLDP-MED, STP BPDU Guard, VLAN Tagging
- Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX, IEEE 802.3bz
- PowerAC 120/230 V (50/60 Hz)
- Dimensions (WxDxH)13 in x 10.2 in x 1.7 in
- Weight7.85 lbs
|
