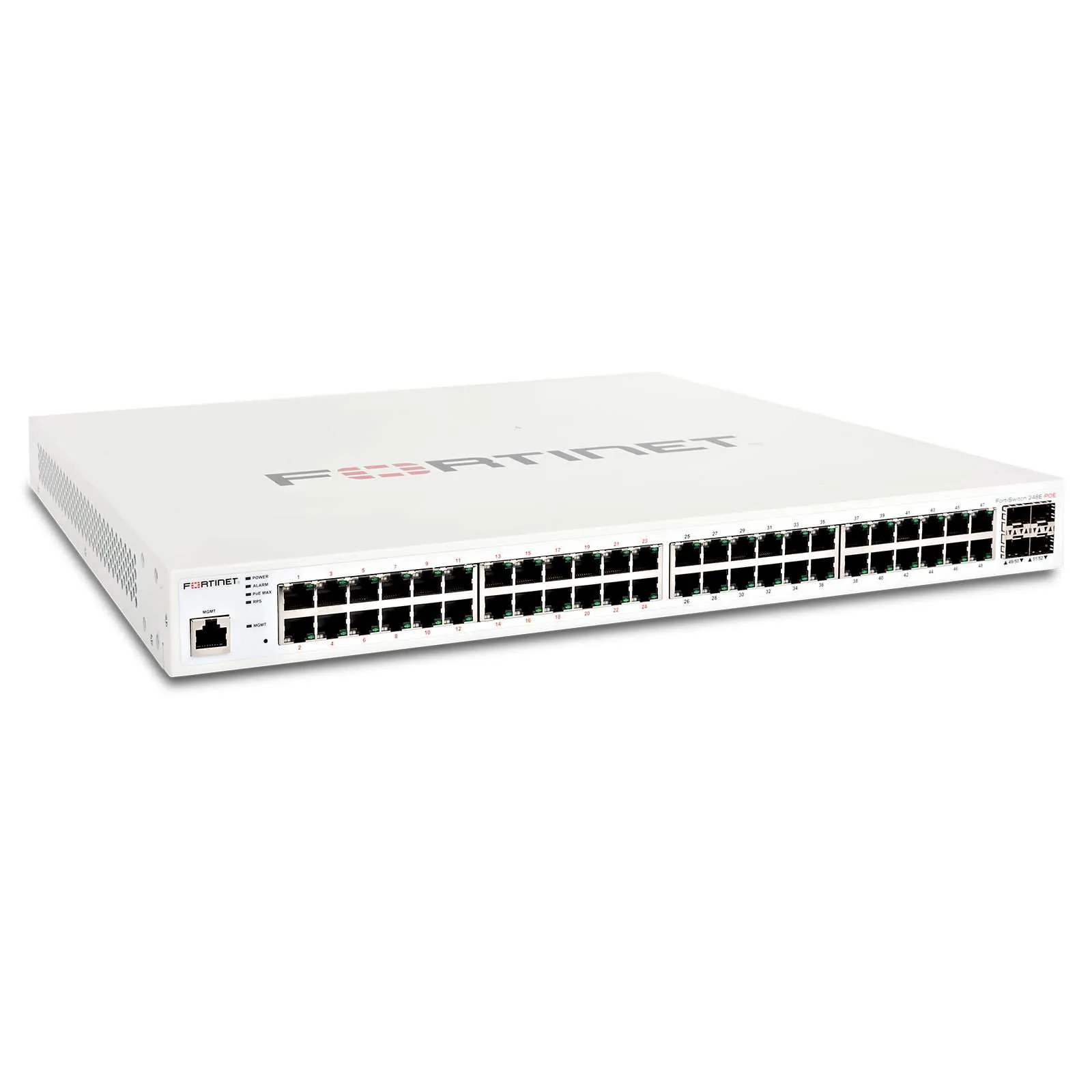

FS-248E-FPOE

Sale!

FS-248E-FPOE

Original price was: $2,400.00.Current price is: $1,930.00.

FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices. Tightly integrated into the FortiGate® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.

FS-248E-FPOE

FS-248E-FPOE

Original price was: $2,400.00.Current price is: $1,930.00.

GENERAL
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 740
Capacity Virtual interfaces (VLANs): 4000
Link aggregation groups: 26
Link aggregation groups: 8
MSTP instances: 15
Routing entries: 64
Host entries: 4000
ACL entries: 512
Jumbo Frame Support Yes
Authentication Method RADIUS
MAC Address Table Size 16000 entries
Authentication Method RADIUS
Power Over Ethernet (PoE) PoE+
Routing Protocol RIP-2, VRRP, OSPFv2
Jumbo Frame Support Yes
PoE Budget 740 W
Manufacturer Fortinet
POWER DEVICE
Nominal Voltage AC 120/230 V
Frequency Required 50 – 60 Hz
Power Consumption Operational 47.7 Watt
Type internal power supply
NETWORKING
MAC Address Table Size 16000 entries
Subcategory network hubs and switches
Subtype Gigabit Ethernet
Form Factor rack-mountable
Type Switch
Advanced Switching Layer 3
Features 1.5MB packet buffer, Bidirectional Forwarding Detection (BFD), Link Aggregation Control Protocol (LACP), Management Information Base (MIB), Multi-Chassis Link Aggregation (MLAG), Multiple Spanning Tree Protocol (MSTP) support, Private VLAN, Rapid Spanning Tree Protocol (RSTP) support, Root Guard, SNTP support, Spanning Tree Protocol (STP) support, Storm Control, DHCP relay, Time Domain Reflectometry (TDR), Type of Service (ToS), auto-negotiation, flow control, port mirroring, sFlow, static routing, tagged VLAN, DHCP snooping, DiffServ Code Point (DSCP) support, Dynamic ARP Inspection (DAI), IGMP snooping, IP-MAC binding, Jumbo Frames support, LLDP support
Compliant Standards IEEE 802.1AX, IEEE 802.1D, IEEE 802.3ad (LACP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab
Jumbo Frame Support Yes
Ports Qty 52
Manageable Yes
Routing Protocol OSPFv2, RIP-2, VRRP
PoE Budget 740
Remote Management Protocol CLI, HTTP, HTTPS, SNMP 1, SNMP 2c, SNMP 3, SSH, TFTP, Telnet
Power Over Ethernet (PoE) PoE+
CAMERA
Installed Size 128 MB
MISCELLANEOUS
MTBF >10 sec
Height (Rack Units) 1 m
Color Category white
MTBF >10 years
INTERFACE PROVIDED
Qty 1, 4, 48
Comments PoE+
ENVIRONMENTAL PARAMETERS
Min Storage Temperature -4 °F
Max Storage Temperature 158 °F
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 10 – 90%
HEADER
Brand Fortinet
Product Line Fortinet FortiSwitch
Model 248E-FPOE
Packaged Quantity 1
DIMENSIONS & WEIGHT
Width 17.3 in
Depth 16.1 in
Height 1.7 in
Weight 13.45 lbs
PORTS
Type 10/100/1000 (PoE+)
Qty 48
PORTS (2ND)
Type Gigabit SFP
Qty 4
PERFORMANCE
Type latency, packet transfer capability, switching capacity
Value 1 µs, 104 Gbps, 155 Mpps
CAPACITY
Type ACL entries, MSTP instances, host entries, link aggregation groups, routing entries, virtual interfaces (VLANs)/td>
Value 15, 26, 4000, 512, 64, 8
SERVICE & SUPPORT
Type limited lifetime warranty
SERVICE & SUPPORT DETAILS
Type limited warranty
Full Contract Period lifetime
GENERAL
Manufacturer Fortinet
