HPE Aruba J9836A

Sale!

HPE Aruba J9836A

Original price was: $500.00.Current price is: $361.99.

Aruba J9836A 2920 Switch Series provides security, scalability, and ease of use for enterprise edge, SMB and branch office networks. These energy efficient basic Layer 3 switches are easy to deploy and manage with advanced security and network management tools like Aruba Clear Pass Policy Manager, Aruba Air Wave and cloud based Aruba Central. The 2920 supports modular stacking (4 chassis), redundant power, 10GbE, RIP and Access OSPF routing, Tunneled node, PoE+, ACLs, sFlow, robust QoS and IPv6. It is optimized for Software-defined Networking (SDN) with Open Flow support. This J9836A has 48 x 10/100/1000 ports including four that are combo dual purpose shared with SFP ports for fiber connectivity. Units also each have two available port module slots, a stacking module slot, and an available redundant power supply slot.

There are a total of 48 ports on this network switch, with speeds of 10/100/1000 Mbps. It also has 4 combo Gigabit SFP ports for additional access options. The connector type for these ports is RJ-45, which is popular in gear used for networking. The switch comes with 512 MB of SDRAM and 1 GB of flash memory to store setup files and firmware and make data processing and management even faster. Based on these specs, this switch works well for medium- to large-sized networks that need fast connections and stable performance.

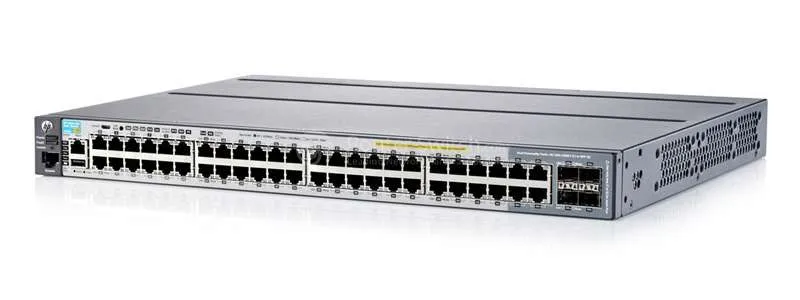

HPE-Aruba-J9836A-Appearance

HPE Aruba J9836A

Original price was: $500.00.Current price is: $361.99.

Product Code J9836A
Type Aruba 2920-48G-POE+ 740W Switch
Ports · 44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+);Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
· 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
· 2 module slots
· 1 stacking module slot
· 1 dual-personality (RJ-45 or USB micro-B)
· 1 USB 1.1
· 1 RJ-45 out-of-band management port
Throughput 130.9 million pps
Switching capacity 176 Gb/s
PoE power 740 W
Dimensions 4.39 x 44.25 x 33.6 cm (1.73 x 17.42 x 13.23 in)

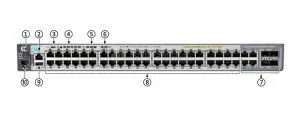

HPE Aruba J9836A -Front

HPE-Aruba-J9836A-Appearance
HPE-Aruba-J9836A-Appearance

HPE Aruba J9836A -Back

HPE-Aruba-J9836A-Appearance
HPE-Aruba-J9836A-Appearance
Product Code J9726A J9727A J9728A J9729A J9836A
Type Aruba 2920 24G Switch Aruba 2920 24G POE+ Switch Aruba 2920 48G Switch Aruba 2920 48G POE+ Switch Aruba 2920-48G-POE+ 740W Switch
Ports · 20 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
· 4 RJ-45 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
· 2 module slots
· 1 stacking module slot
· 1 dual-personality (RJ-45 or USB micro-B)
· 1 USB 1.1
· 1 RJ-45 out-of-band management port
 · 20 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
· 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
· 2 module slots
· 1 stacking module slot
· 1 dual-personality (RJ-45 or USB micro-B)
· 1 USB 1.1
· 1 RJ-45 out-of-band management port
 · 44 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
· 4 RJ-45 dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
· 2 module slots
· 1 stacking module slot
· 1 dual-personality (RJ-45 or USB micro-B)
· 1 USB 1.1
· 1 RJ-45 out-of-band management port
 · 44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
· 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
· 2 module slots
· 1 stacking module slot
· 1 dual-personality (RJ-45 or USB micro-B)
· 1 USB 1.1
· 1 RJ-45 out-of-band management port
 · 44 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+);Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
· 4 RJ-45 dual-personality 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)
· 2 module slots
· 1 stacking module slot
· 1 dual-personality (RJ-45 or USB micro-B)
· 1 USB 1.1
· 1 RJ-45 out-of-band management port
Throughput 95.2 million pps 95.2 million pps 130.9 million pps 130.9 million pps 130.9 million pps
Switching capacity 28 Gb/s 128 Gb/s 176 Gb/s 176 Gb/s 176 Gb/s
PoE Available Power 370 W 370 W 740 W

Spec of J9836A

Number of Ports 48 x 10/100/1000 + 4 x combo Gigabit SFP
Connector Type RJ-45
RAM 512 MB SDRAM
Flash Memory 1 GB

Product Applications

Aruba J9836A can be used in various scenarios, including:

  • Small to medium-sized office networks
  • Data centers requiring high-speed connectivity
  • Enterprise environments with advanced routing need

J9836A Specification



J9836A Specifications

Model Aruba 2920-48G-POE+ 740W Switch
Form Factor Rack-mountable
Number of Ports 48
Power Over Ethernet Yes (POE+)
Throughput up to 130.9 Mpps
Switching Capacity 176 Gbps
Routing table size 2048 entries (IPv4), 256 entries (IPv6)
MAC address table size 16000 entries
Frequency 50/60 Hz
Maximum heat dissipation 482 BTU/hr (508.51 kJ/hr)
Maximum power rating 881 W
PoE power 740 W PoE+
Dimensions 17.42 (w) x 13.23 (d) x 1.73 (h) in
Operating temperature 32°F to 131°F (0°C to 55°C)
Humidity Range 15% to 95% (non-condensing)
Warranty Limited lifetime warranty

Datasheet

More information on this HPE J9836A.
