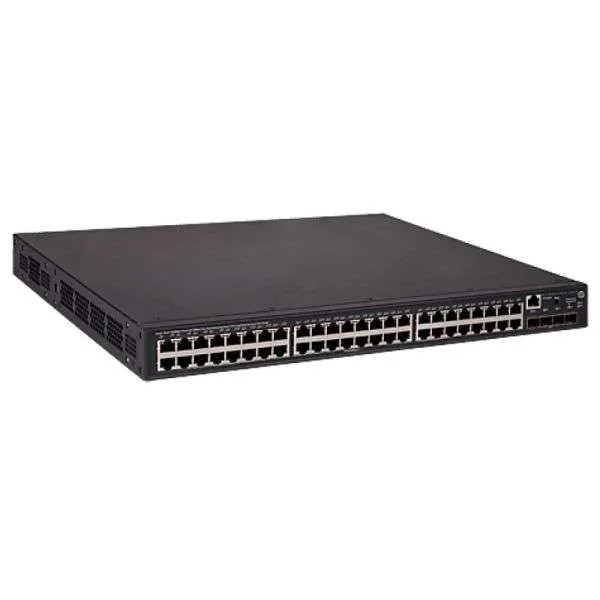

JG937A

JG937A

$4,060.00

The HPE JG937A 5130-48G-2SFP+-2XGT is a high-performance switch designed for network connectivity in enterprise environments. This switch provides seamless data transfer and enhances network performance with its reliable features. HPE JG937A: 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/ 100BASE-TX: half or full; 1000BASE-T: full only, 2 SFP+ fixed 1000/10000 SFP+ ports, 2 RJ-45 1/10GBASE-T ports.

JG937A

JG937A

$4,060.00

Quick Specs

Product Code JG937A
Type HPE Flex Network 5130-48G-PoE+-4SFP+ (370W) EI Switch
I/O ports and slots 48 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX,

IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 x SFP+ fixed 1000/10000 SFP+ ports

Additional ports and slots 1 x RJ-45 serial console port
Memory and processor 1 GB SDRAM
512 MB flash
packet buffer size: 1.5 MB
Reliability MTBF (years): 48.3
PoE power 370 W PoE+
Maximum power rating 490 W
Dimensions 4.36 x 44 x 36 cm (1.72 x 17.32 x 14.17 in)
Weight 8 kg (17.64 lb)

Similar Products

Product Code JG932A JG933A JG934A JG936A JG937A
Type HPE Flex Network 5130-24G-4SFP+ EI Switch HPE Flex Network 5130-24G-SFP-4SFP+ EI Switch HPE Flex Network 5130-48G-4SFP+ EI Switch HPE Flex Network 5130-24G-PoE+-4SFP+ (370W) EI Switch HPE Flex Network 5130-48G-PoE+-4SFP+ (370W) EI Switch
I/O ports and slots · 24 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

·4 x SFP+ fixed 1000/10000 SFP+ ports

·16 x SFP 100/1000 Mbps ports

·8 x SFP dual-personality ports – 10/100/1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports

·4 x SFP+ fixed 1000/10000 SFP+ ports

· 48 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

· 4 x SFP+ fixed 1000/10000 SFP+ ports

· 24 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

· 4 x SFP+ fixed 1000/10000 SFP+ ports

· 48 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

· 4 x SFP+ fixed 1000/10000 SFP+ ports

Additional ports and slots 1 x RJ-45 serial console port 1 x RJ-45 serial console port 1 RJ-45 serial console port 1 x RJ-45 serial console port 1 x RJ-45 serial console port
Memory and processor ·1 GB SDRAM

·512 MB flash

·packet buffer size: 1.5 MB

·1 GB SDRAM

·512 MB flash

·packet buffer size: 1.5 MB

· 1 GB SDRAM

· 512 MB flash

· packet buffer size: 3 MB

· 1 GB SDRAM

· 512 MB flash

· packet buffer size: 1.5 MB

· 1 GB SDRAM

· 512 MB flash

· packet buffer size: 1.5 MB

JG937A Specification

JG937A Specifications

Type HPE Flex Network 5130-48G-PoE+-4SFP+ (370W) EI Switch
System specifications
I/O ports and slots · 48 x RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

· 4 x SFP+ fixed 1000/10000 SFP+ ports

Additional ports and slots 1 x RJ-45 serial console port
Power supplies N/A
Memory and processor · 1 GB SDRAM

· 512 MB flash

· packet buffer size: 1.5 MB

Reliability MTBF (years): 48.3
Mounting and enclosure Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Management IMC – Intelligent Management Center; command-line interface; Web browser; SNMP Manager
Physical specifications
Dimensions (H x W x D) 4.36 x 44 x 36 cm (1.72 x 17.32 x 14.17 in)
Weight 8 kg (17.64 lb)
Environmental specifications
Acoustic Low-speed fan: 50.6 dB, High-speed fan: 54.6 dB; ISO 7779
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 10% to 90%, non condensing
Nonoperating/Storage temperature -40°C to 70°C (-40°F to 158°F)
Nonoperating/Storage relative humidity 5% to 95%, non condensing
Electrical specifications
Frequency 50/60 Hz
Maximum heat dissipation 160/1671 BTU/hr (168.8/1762.91 kJ/hr), for AC power. For DC power min heat dissipation is 147BTU/hr and 3037BTU/hr max
AC voltage 100 – 240 V ac
Current 10 A
Maximum power rating 490 W
Idle power 47 W
PoE power None
Safety certifications
Safety UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance
Emissions EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN61000-3-3:2008; VCCI V-4/2012.04; EN 6100-3-2:2006+A1:2009 + A2:2009; EN 61000-3-2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; AS/NZS CISPR 22:2009 Class A; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A
Standard and protocols
Device management RFC 1157 SNMPv1/v2c

RFC 1305 NTPv3

RFC 2573 (SNMPv3 Applications)

RFC 2819 (RMON groups Alarm, Event, History and Statistics only)

RFC 3416 (SNMP Protocol Operations v2)

HTML and telnet management

Multiple Configuration Files

SNMP v3 and RMON RFC support

SSHv1/SSHv2 Secure Shell

TACACS/TACACS+

Web UI

General protocols IEEE 802.1ad Q-in-Q

IEEE 802.1D MAC Bridges

IEEE 802.1p Priority

IEEE 802.1Q VLANs

IEEE 802.1s Multiple Spanning Trees

IEEE 802.1w Rapid Reconfiguration of Spanning Tree

IEEE 802.1X PAE

IEEE 802.3 Type 10BASE-T

IEEE 802.3ab 1000BASE-T

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

IEEE 802.3ae 10-Gigabit Ethernet

IEEE 802.3af Power over Ethernet

IEEE 802.3i 10BASE-T

IEEE 802.3u 100BASE-X

IEEE 802.3x Flow Control

IEEE 802.3z 1000BASE-X

RFC 768 UDP

RFC 783 TFTP Protocol (revision 2)

RFC 791 IP

RFC 792 ICMP

RFC 793 TCP

RFC 826 ARP

RFC 854 TELNET

RFC 951 BOOTP

RFC 1213 Management Information Base for Network Management of TCP/IP-based internets

RFC 1305 NTPv3

RFC 1350 TFTP Protocol (revision 2)

RFC 1519 CIDR

RFC 1812 IPv4 Routing

RFC 1866 Hypertext Markup Language – 2.0

RFC 2131 DHCP

RFC 2236 IGMP Snooping

RFC 2616 HTTP Compatibility v1.1

RFC 2665 Definitions of Managed Objects for the Ethernet-like Interface Types

RFC 2668 Definitions of Managed Objects for IEEE 802.3 Medium Attachment Units (MAUs)

RFC 2865 Remote Authentication Dial In User Service (RADIUS)

RFC 2866 RADIUS Accounting

RFC 3414 User-based Security Model (USM) for version 3 of the Simple Network Management Protocol (SNMPv3)

RFC 3415 View-based Access Control Model (VACM) for the Simple Network Management Protocol (SNMP)

RFC 3418 Management Information Base (MIB) for the Simple Network Management Protocol (SNMP)

RFC 3576 Ext to RADIUS (CoA only)

RFC 4213 Basic IPv6 Transition Mechanisms802.1r – GARP Proprietary Attribute Registration Protocol (GPRP

IPv6 RFC 2461 IPv6 Neighbor Discovery

RFC 2463 ICMPv6

RFC 3162 RADIUS and IPv6

RFC 3306 Unicast-Prefix-based IPv6 Multicast Addresses

RFC 3315 DHCPv6 (client and relay)

MIBs RFC 1212 Concise MIB Definitions

RFC 1213 MIB II

RFC 1493 Bridge MIB

RFC 1757 Remote Network Monitoring MIB

RFC 2096 IP Forwarding Table MIB

RFC 2233 Interface MIB

RFC 2571 SNMP Framework MIB

RFC 2572 SNMP-MPD MIB

RFC 2573 SNMP-Notification MIB

RFC 2573 SNMP-Target MIB

RFC 2574 SNMP USM MIB

RFC 2618 RADIUS Authentication Client MIB

RFC 2620 RADIUS Accounting Client MIB

RFC 2665 Ethernet-Like-MIB

RFC 2668 802.3 MAU MIB

RFC 2674 802.1p and IEEE 802.1Q Bridge MIB

RFC 2737 Entity MIB (Version 2)

RFC 2819 RMON MIB

RFC 2863 The Interfaces Group MIB

RFC 2925 Ping MIB

RFC 3414 SNMP-User based-SM MIB

RFC 3415 SNMP-View based-ACM MIB

RFC 3418 MIB for SNMPv3

RFC 3621 Power Ethernet MIB

Network management IEEE 802.1AB Link Layer Discovery Protocol (LLDP)

RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events)

ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED)

SNMPv1/v2c/v3

Security IEEE 802.1X Port Based Network Access Control

RFC 1492 TACACS+

RFC 2138 RADIUS Authentication

RFC 2139 RADIUS Accounting

RFC 2865 RADIUS (client only)

RFC 2866 RADIUS Accounting

Secure Sockets Layer (SSL)

SSHv2 Secure Shell

JG937A Datasheet

1 review for JG937A

  1. Jenifer

    Very reasonable price wise & functions amazingly.
