JH146A
JH146A
Original price was: $7,600.00.$4,600.00Current price is: $4,600.00.
The HPE Flex Network 5510 HI Switch Series send outstanding durability, security, and different service support for medium and large project networks. JH146A supports 48 10/100/1000Base-T autosensing Ethernet ports and 4 SFP+ ports.

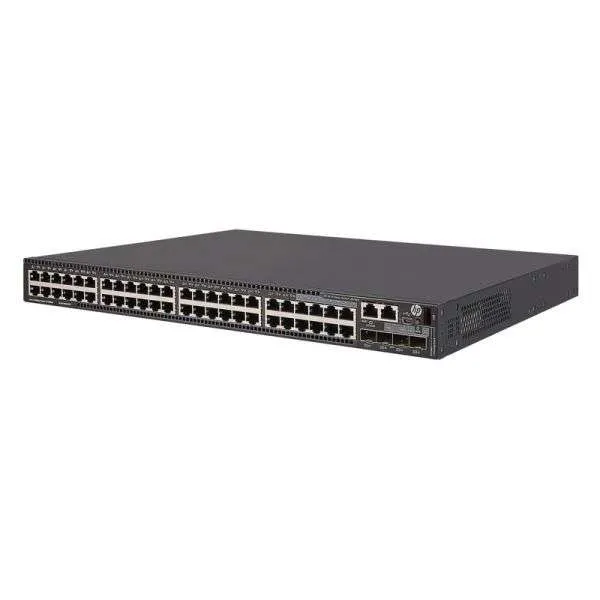

Appearance of HPE JH145A
| Product Code | JH146A |
| Type | HPE Flex Network 5510 24G 4SFP+ HI 1-slot Switch |
| I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 8 support MACsec 4 SFP+ 10GbE ports 1 port expansion module slot Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module |
| Additional ports and slots | 1 dual-personality (RJ-45 or USB micro-B) serial console port 1 RJ-45 out-of-band management port 1 USB 2.0 |
| 1000 Mb Latency | < 5 μs |
| 10 Gbps Latency | < 3 μs |
| Throughput | up to 250 Mp/s |
| Routing/Switching capacity | 336 Gb/s |
| Routing table size | IPv4 : 32768 entries
IPv6 : 16384 entries |
| MAC address table size | 32768 entries |
| Dimensions (W x D x H) | 44.00 x 36.00 x 4.37 cm (17.32 x 14.17 x 1.72 in) |
| Weight | 7.5 kg (16.53 lb) |

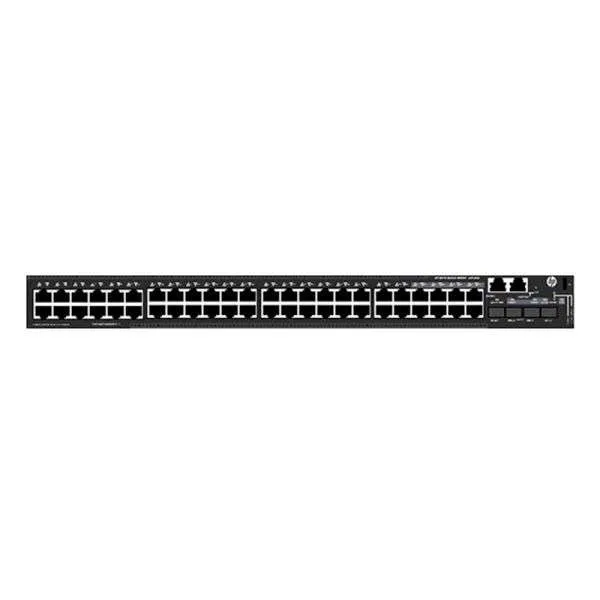

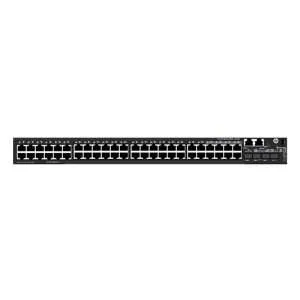

Front panel of HPE JH146A
Note:
| ① | 48 × 10/100/1000Base-T autosensing Ethernet port |
| ② | 4 × SFP+ port |
| ③ | USB port |
| ④ | Mini USB console port |
| ⑤ | Console port (CONSOLE) |
| ⑥ | Management Ethernet port |

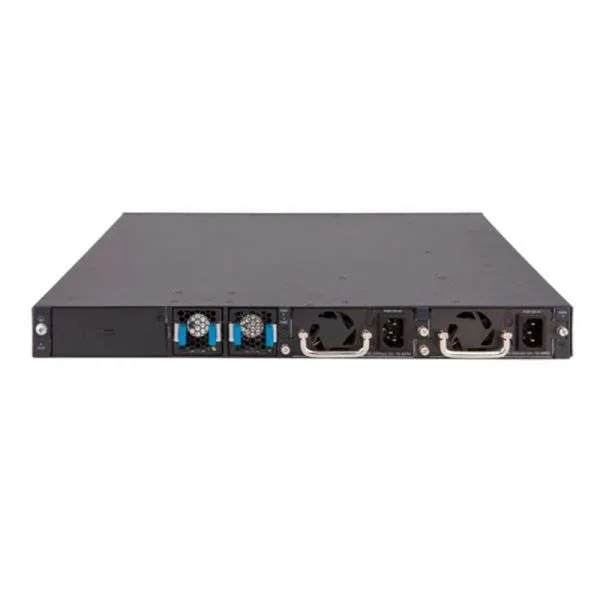

Back panel of HPE JH146A
Note:
| ① | Grounding screw |
| ② | Interface card (optional) |
| ③ | Fan tray 1 |
| ④ | Fan tray 2 |
| ⑤ | Power supply 1 |
| ⑥ | Power supply 2 (optional) |
Compare to Similar Products
| Product Code | JH145A | JH146A | JH147A | JH148A | JH149A |
| Type | HPE Flex Network 5510 24G 4SFP+ HI 1-slot Switch | HPE Flex Network 5510 48G 4SFP+ HI 1-slot Switch | HPE Flex Network 5510 24G PoE+ 4SFP+ HI 1-slot Switch | HPE Flex Network 5510 48G PoE+ 4SFP+ HI 1-slot Switch | HPE Flex Network 5510 24G SFP 4SFP+ HI 1-slot Switch |
| 1000 Mb Latency | < 5 μs | < 5 μs | < 5 μs | < 5 μs | < 5 μs |
| 10 Gbps Latency | < 3 μs | < 3 μs | < 3 μs | < 3 μs | < 3 μs |
| Throughput | up to 214 Mp/s | up to 250 Mp/s | up to 214 Mp/s | up to 250 Mp/s | up to 214 Mp/s |
| Routing/Switching capacity | 288 Gb/s | 336 Gb/s | 288 Gb/s | 336 Gb/s | 288 Gb/s |
| Routing table size | IPv4 : 32768 entries
IPv6 : 16384 entries |
IPv4 : 32768 entries
IPv6 : 16384 entries |
IPv4 : 32768 entries
IPv6 : 16384 entries |
IPv4 : 32768 entries
IPv6 : 16384 entries |
IPv4 : 32768 entries
IPv6 : 16384 entries |
JH145A Specification
JH146A Specifications |
|
| System specifications | |
| Type | HPE Flex Network 5510 48G 4SFP+ HI 1-slot Switch |
| I/O ports and slots | · 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
· Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 8 support MACsec · 4 SFP+ 10GbE ports · 1 port expansion module slot · Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module |
| Additional ports and slots | · 1 dual-personality (RJ-45 or USB micro-B) serial console port
· 1 RJ-45 out-of-band management port · 1 USB 2.0 |
| Performance | |
| 1000 Mb Latency | < 5 μs |
| 10 Gbps Latency | < 3 μs |
| Throughput | up to 214 Mp/s |
| Routing/Switching capacity | 288 Gb/s |
| Routing table size | IPv4 : 32768 entries
IPv6 : 16384 entries |
| MAC address table size | 32768 entries |
| Physical specifications | |
| Dimensions (W x D x H) | 44.00 x 36.00 x 4.37 cm (17.32 x 14.17 x 1.72 in) |
| Weight | 7.5 kg (16.53 lb) |
| Electrical specifications | |
| Frequency | 50/60 Hz |
| Maximum heat dissipation | 238 BTU/hr (686.81 kJ/hr), Ranges from 201 BTU/hr to 443 BTU/hr, depending on power supply configuration |
| Voltage | 100 – 240 V ac, rated (90 – 264 Vac, max)
-48 to -60 V dc, rated (-36 to -72 V dc, max) (depending on power supply chosen) |
| Maximum power rating | 150 W |
| Idle power | 55 W |
| PoE power | NA |
| Environmental specifications | |
| Operating temperature | 0°C to 45°C (32°F to 113°F) |
| Operating relative humidity | 10% to 90%, non condensing |
| Nonoperating/Storage temperature | -40°C to 70°C (-40°F to 158°F) |
| Nonoperating/Storage relative humidity | 5% to 95%, non condensing |
| Acoustic | Low-speed fan: 52.8 dB, High-speed fan: 66.7 dB
ISO 7779 |
| Safety and emissions | |
| Safety | UL 60950-1
EN 60825-1 Safety of Laser Products-Part 1 EN 60825-2 Safety of Laser Products-Part 2 IEC 60950-1 EN 60950-1 CAN/CSA-C22.2 No. 60950-1 FDA 21 CFR Subchapter J ROHS Compliance AS/NZS 60950-1 GB 4943 EAC (EurAsian Conformity Certification) |
| Emissions | EMC Directive 2004/108/EC
FCC (CFR 47, Part 15) Class A EN 61000-4-11:2004 ANSI C63.4-2009 EN 61000-3-3:2008 VCCI V-3/2012.04 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-4-3:2006 EN 61000-4-4:2012; EN 61000-4-5:2006 EN 61000-4-6:2009 CISPR 22:2008 Class A EN 55022:2010 Class A EN 61000-4-29: 2000 CISPR 24:2010 EN 300 386 V1.6.1 VCCI V-3/2013.04 Class A |
| Immunity | Generic: EN 55024
ESD: EN300 386 |
| Management | IMC – Intelligent Management Center
Command-line interface Web browser SNMP manager |
