JH148A

Sale!

JH148A

Original price was: $11,688.00.Current price is: $4,600.00.

JH148A supports 48 10/100/1000 Base-T auto detection Ethernet PoE ports and 4 SFP+ ports. The HPE Flex Network 5510 HI Switch Series distribute outstanding resiliency, security, and multiservice support for medium and large project networks.

JH148A

JH148A

Original price was: $11,688.00.Current price is: $4,600.00.

Appearance of HPE JH148A

jh148a
jh148a

Quick Specs

Product Code JH148A
Type HPE Flex Network 5510 48G PoE+ 4SFP+ HI 1-slot Switch
PoE+ Available (48) RJ-45 autosensing 10/100/1000 PoE+ ports

1440 W PoE+

I/O ports and slots 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 8 support MACsec
4 SFP+ 10GbE ports
1 port expansion module slot
Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module
Additional ports and slots 1 dual-personality (RJ-45 or USB micro-B) serial console port
1 RJ-45 out-of-band management port
1 USB 2.0
1000 Mb Latency < 5 μs
10 Gbps Latency < 3 μs
Throughput up to 250 Mp/s
Routing/Switching capacity 336 Gb/s
Routing table size IPv4 : 32768 entries

IPv6 : 16384 entries

MAC address table size 32768 entries
Dimensions (W x D x H) 43.99 x 46 x 4.37 cm (17.32 x 18.11 x 1.72 in)
Weight 12.5 kg (27.56 lb)

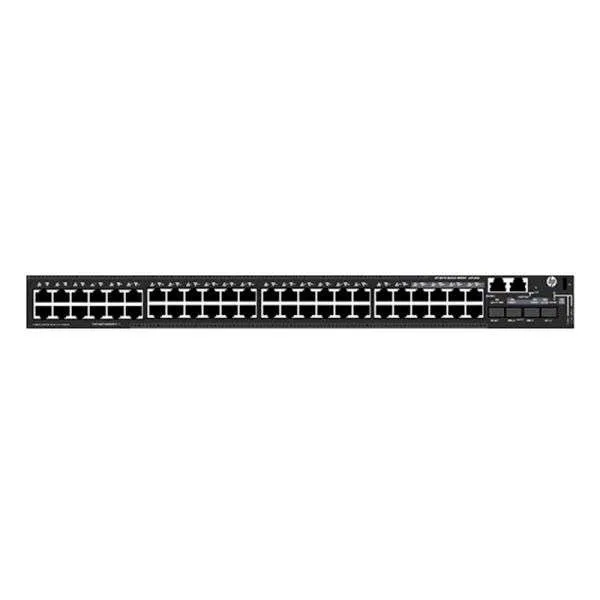

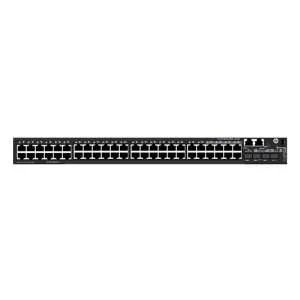

 Front Panel of HPE JH148A

hpe-jh148a switches
hpe-jh148a switches

Note:

48 ×RJ-45 autosensing 10/100/1000 PoE+ ports
4 × SFP+ port
USB port
Mini USB console port
Console port (CONSOLE)
Management Ethernet port

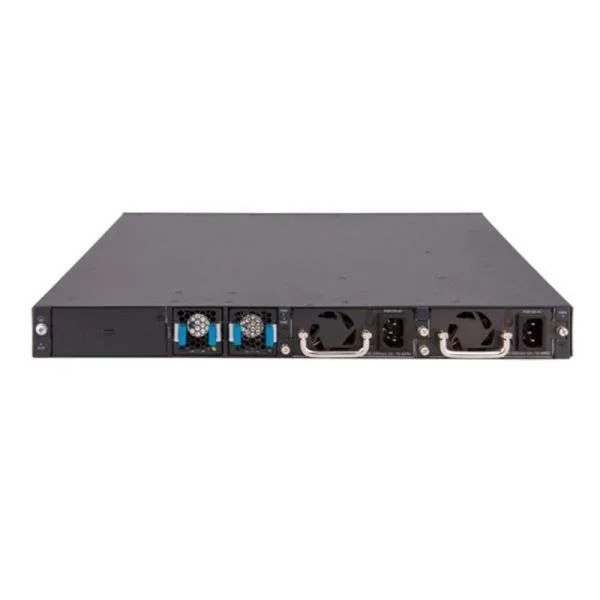

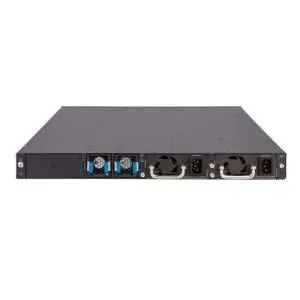

Back panel of HPE JH148A



hpe-jh148a
hpe-jh148a

Note:

Grounding screw
Interface card (optional)
Fan tray 1
Fan tray 2
Power supply 1
Power supply 2 (optional)

Similar Items



Product Code JH145A JH146A JH147A JH148A JH149A
Type HPE Flex Network 5510 24G 4SFP+ HI 1-slot Switch HPE Flex Network 5510 48G 4SFP+ HI 1-slot Switch HPE Flex Network 5510 24G PoE+ 4SFP+ HI 1-slot Switch HPE Flex Network 5510 48G PoE+ 4SFP+ HI 1-slot Switch HPE Flex Network 5510 24G SFP 4SFP+ HI 1-slot Switch
1000 Mb Latency < 5 μs < 5 μs < 5 μs < 5 μs < 5 μs
10 Gbps Latency < 3 μs < 3 μs < 3 μs < 3 μs < 3 μs
Throughput up to 214 Mp/s up to 250 Mp/s up to 214 Mp/s up to 250 Mp/s up to 214 Mp/s
Routing/Switching capacity 288 Gb/s 336 Gb/s 288 Gb/s 336 Gb/s 288 Gb/s
Routing table size IPv4 : 32768 entries

IPv6 : 16384 entries

IPv4 : 32768 entries

IPv6 : 16384 entries

IPv4 : 32768 entries

IPv6 : 16384 entries

IPv4 : 32768 entries

IPv6 : 16384 entries

IPv4 : 32768 entries

IPv6 : 16384 entries

JH148A Specification

JH148A Specifications

System specifications
Type HPE Flex Network 5510 48G PoE+ 4SFP+ HI 1-slot Switch
I/O ports and slots · 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

· Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 – 8 support MACsec

· 4 SFP+ 10GbE ports

· 1 port expansion module slot

· Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module

Additional ports and slots · 1 dual-personality (RJ-45 or USB micro-B) serial console port

· 1 RJ-45 out-of-band management port

· 1 USB 2.0

Performance
1000 Mb Latency < 5 μs
10 Gbps Latency < 3 μs
Throughput up to 250 Mp/s
Routing/Switching capacity 336 Gb/s
Routing table size IPv4 : 32768 entries

IPv6 : 16384 entries

MAC address table size 32768 entries
Physical specifications
Dimensions (W x D x H) 43.99 x 46 x 4.37 cm (17.32 x 18.11 x 1.72 in)
Weight 12.5 kg (27.56 lb)
Electrical specifications
Frequency 50/60 Hz
Maximum heat dissipation 2286 BTU/hr (2411.73 kJ/hr), Heat dissipation ranges from 256 BTU/hr to 6142 BTU/hr, depending on power supply configuration
Voltage 100 – 240 V ac, rated (90 – 264 Vac, max) (depending on power supply chosen)
Maximum power rating 670 W
Idle power 75 W
PoE power 1440 W PoE+
Environmental specifications
Operating temperature 0°C to 45°C (32°F to 113°F)
Operating relative humidity 10% to 90%, non condensing
Non operating/Storage temperature -40°C to 70°C (-40°F to 158°F)
Non operating/Storage relative humidity 5% to 95%, non condensing
Acoustic Low-speed fan: 57.6 dB, High-speed fan: 66.9 dB

ISO 7779

Safety and emissions
Safety UL 60950-1

EN 60825-1 Safety of Laser Products-Part 1

EN 60825-2 Safety of Laser Products-Part 2

IEC 60950-1

EN 60950-1

CAN/CSA-C22.2 No. 60950-1

FDA 21 CFR Subchapter J

ROHS Compliance

AS/NZS 60950-1

GB 4943 EAC (EurAsian Conformity Certification)

Emissions EMC Directive 2004/108/EC

FCC (CFR 47, Part 15) Class A

EN 61000-4-11:2004

ANSI C63.4-2009

EN 61000-3-3:2008

VCCI V-3/2012.04

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-4-3:2006

EN 61000-4-4:2012; EN 61000-4-5:2006

EN 61000-4-6:2009

CISPR 22:2008 Class A

EN 55022:2010 Class A

EN 61000-4-29: 2000

CISPR 24:2010

EN 300 386 V1.6.1

VCCI V-3/2013.04 Class A

Immunity Generic: EN 55024

ESD: EN300 386

Management IMC – Intelligent Management Center

Command-line interface

Web browser

SNMP manager

Visit Also JH148A Datasheet
