JL686A
JL686A
$860.00

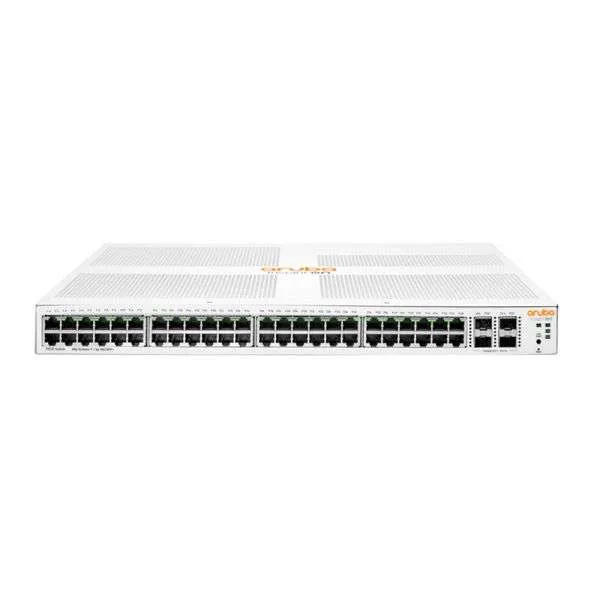

JL686A is an Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch. Aruba Instant On 1930 switches features advanced, smart-managed, fixed configuration Gigabit switches designed for small businesses that are easy-to-deploy and affordable. They’re made to handle today’s bandwidth-heavy applications like voice and video conferencing, enabling consistent connectivity to enhance performance.
| Model | JL686A |
| I/O ports and slots | 48 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T);
Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
4 SFP+ 1/10GbE ports |
| Dimension | 17.42(w) x 12.7(d) x 1.73(h) in (44.25 x 32.26 x 4.39 cm) (1U height) |
| Processor and memory | ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB |
| Throughput (Mpps) | 130.95 Mpps |
| Switching capacity | 176 Gbps |
Key Features :
- Device Type : Switch – 52 Ports – L3 – Managed
- Enclosure Type : Rack-mountable 1u
- Subtype : Gigabit Ethernet
- Ports : 48 X 10/100/1000 + 4 X 1 Gigabit / 10 Gigabit Sfp+
- Power Over Ethernet (poe): Poe
- Poe Budget: 370 W
- Performance : Switching Capacity: 176 Gbps ¦ Throughput: 130.95 Mpps ¦ Latency (1 Gbps): 2.2 ¥s ¦ Latency (10 Gbps): 1.2 ¥s
- Capacity : Link Aggregation Ports: 8 ¦ Ipv4 Routes (static): 32 ¦ Vlans
- supported: 256 ¦ Access Control Entries (aces) Per Acl: 480 ¦ Packet Buffer
- size: 1.5 Mb
- Mac Address Table Size : 16k Entries
- Jumbo Frame Support : 9216 Bytes
- Routing Protocol : Static Ip Routing
- Remote Management Protocol : Snmp 1, Rmon, Snmp 3, Snmp 2c, Http, Https, Tftp, Radius.
- Features : Flow Control, Dhcp Support, Arp Support, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Igmp Snooping, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Spanning Tree Protocol (stp) Support, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Trusted Platform Module (tpm), Lldp Support, Link Aggregation Control Protocol (lacp), Energy Efficient Ethernet, Class Of Service (cos), Bpdu Filter, Poe Class 4.
- Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3af, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az, Ieee 802.2af
- Processor: 1 X Arm Cortex-a9: 800 Mhz
- Ram: 512 Mb Sdram
- Flash Memory: 256 Mb
- Status Indicators: Port Status, Power, Poe
Expansion / Connectivity :
Interfaces : - 48 X 10/100/1000 Base-t Rj-45 Poe – 370 W
- 4 X 1/10gbit Lan Sfp+
Power :
- Power Device : Internal Power Supply
- Voltage Required : Ac 120/230 V (50/60 Hz)
- Power Consumption Operational: 460 Watt
