JW686A

JW686A

$2,498.00

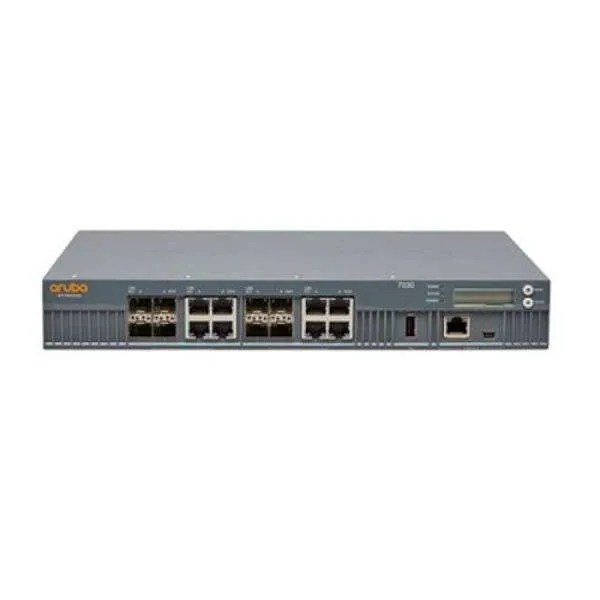

Aruba 7030 (RW) 64 AP Branch Controller

Aruba 7000 Series Mobility Controllers enhance WLAN performance by centralizing all control functionality for individual Aruba access points (APs) to improve AP utilization, security, and client roaming. Ideally suited for midsize
campuses and branches, the 7000 Series can be deployed using Zero Touch Provisioning (ZTP) to simplify deployment.

JW686A

JW686A

$2,498.00

Table 1 shows the performance and capacity of Aruba 7000 controllers.

Model 7005 7008 7010 7024 7030
Maximum campus AP licenses 16 16 32 32 64
Maximum remote AP licenses 16 16 32 32 64
Maximum concurrent users/devices 1,024 1,024 2,048 2,048 4,096
Maximum VLANs 4,094 4,094 4,094 4,094 4,096
Active firewall sessions 64k 64k 64k 32768 64k
Concurrent GRE tunnels 256 256 512 512 1,024
Concurrent IPsec sessions 512 512 1,024 1,024 2,048
Mobility Access Switch tunneled-node ports 512 512 1,024 1,024 2,048
Firewall throughput 2 Gbps 2 Gbps 4 Gbps 4 Gbps 8 Gbps
Encrypted throughput (3DES, AES-CBC) 1.2 Gbps 1.2 Gbps 2.4 Gbps 2.4 Gbps 2.4 Gbps
Encrypted throughput (AES-CCM) 1.6 Gbps 1.6 Gbps 3.4 Gbps 3.4 Gbps 4 Gbps
