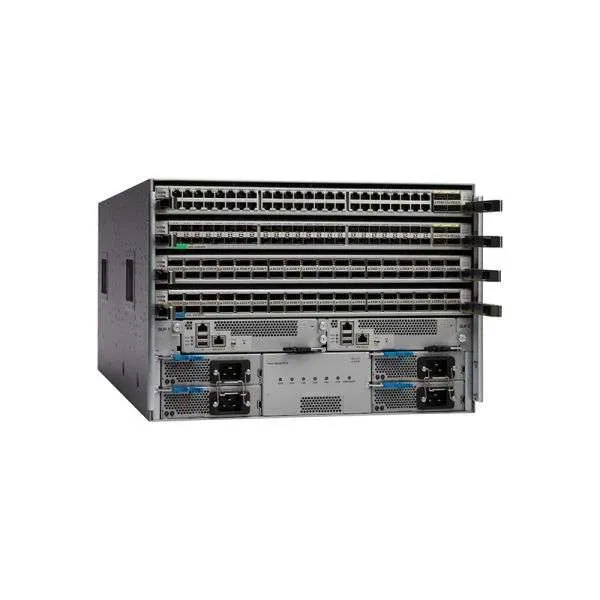

N9K-C9504
N9K-C9504
Original price was: $7,820.00.$5,570.00Current price is: $5,570.00.
N9K-C9504 is the Nexus 9504 Chassis with 8 line card slots. The Cisco Nexus 9500 platform, part of the Cisco Nexus 9000 Series, offers three modular options: the Cisco Nexus 9504 Switch with 4 slots, the Cisco Nexus 9508 Switch with 8 slots, and the Cisco Nexus 9516 Switch with 16 slots. All three switches use the same supervisor, system controller, power supplies, and line cards. The Cisco Nexus 9500 platform consists of Layer 2 and 3 nonblocking Ethernet switches with backplane bandwidth of up to 115.2 Terabits per second (Tbps). The Cisco Nexus 9504, 9508, and 9516 Switches support 1, 10, 25, 40, 50, and 100 Gigabit Ethernet interfaces through a comprehensive selection of modular line cards. Configurable with up to 2304 x 10 Gigabit Ethernet ports, 2048 x 25 Gigabit Ethernet ports, 576 x 40 Gigabit Ethernet ports, 1024 x 50 Gigabit Ethernet ports, or 512 x 100 Gigabit Ethernet ports, they provide ample capacity for both access- and aggregation-layer deployments.
| Product Code | N9K-C9504 |
| Chassis | ● Up to 4 line cards
● Up to 4 power supplies ● Up to 6 fabric modules ● Up to 2 system controllers ● Up to 2 supervisors ● Up to 3 fan trays |
| Physical (H x W x D) | 12.25 x 17.50 x 33.15 in. (31.1 x 44.50 x 84.20 cm) |
| Weight (chassis) | 84 lb (38.2 kg) |
Cisco Nexus 9504 Switch
Get High Performance and Energy Efficiency
Enhance performance and efficiency with the Cisco Nexus 9504 Switch. It offers high density 1, 10, 25, 40, 50, 100, and 400 GE in a compact 7-rack-unit modular chassis. This resourceful modular switch is designed for high-density, end-of-row, and high-performance aggregation-layer deployments in both traditional and Cisco Application Centric Infrastructure (ACI)–enabled data centers.
Features and Capabilities
The Cisco Nexus 9504 Switch provide a wide-range feature set, high resiliency, and a wide range of high performance Gigabit Ethernet line cards.
Deployment Flexibility
- Support for the next-generation data center based on Cisco ACI
- Nexus Fabric Manager support to automate fabric configuration and management
- Traditional data centers in standalone NX-OS mode
Programmability
- Open API to manage the switch through remote-procedure calls (JavaScript Object Notation or XML) over HTTP or HTTPS
- Automated configuration through Linux shell scripts
- Support for customer applications through a Linux container environment
- Programmable APIs for integration with DevOps automation tools
High Availability
- Redundant and hot-swappable supervisors, system controllers, power supplies, and fan trays
- Mix of third-party and Cisco application-specific integrated circuits (ASICs) for improved reliability
Energy Efficiency
- Designed without a midplane to optimize front-to-back airflow and reduce power consumption
- Optimized design with fewer ASICs, resulting in lower energy use
- Efficient power supplies that are rated at 80 Plus Platinum
Specifications at a Glance
| Non Blocking performance | Up to 51.2 Tbps |
| 10 Gigabit Ethernet non blocking ports | Up to 512 |
| 25 Gigabit Ethernet Ports | Up to 512 |
| 50 Gigabit Ethernet Ports | Up to 256 |
| 40/100 Gigabit Ethernet non blocking ports | Up to 144 |
| 400 Gigabit Ethernet non blocking ports | Up to 64 |
| 1/10GBASE-T non blocking ports | Up to 192 |
| Form factor | 7-rack-unit chassis |
| Line card slots | 4 |
The back panel have these things:
① Fan trays
② Grounding pad
③ Fabric modules
④ Chassis handles
⑤ System controllers
N9K-C9504 Specification
|
N9K-C9504 Specification |
|
| Chassis | ● Up to 4 line cards
● Up to 4 power supplies ● Up to 6 fabric modules ● Up to 2 system controllers ● Up to 2 supervisors ● Up to 3 fan trays |
| Physical (H x W x D) | 12.25 x 17.50 x 33.15 in. (31.1 x 44.50 x 84.20 cm) |
| Weight (chassis) | 84 lb (38.2 kg) |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | -40 to 158°F (-40 to 70°C) |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
| MTBF (Hours) | Chassis: 1,038,080 |
| Regulatory compliance | Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC |
| Safety | ● UL 60950-1 Second Edition
● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943 |
| EMC: Emissions | ● 47CFR Part 15 (CFR 47) Class A
● AS/NZS CISPR22 Class A ● CISPR22 Class A ● EN55022 Class A ● ICES003 Class A ● VCCI Class A ● EN61000-3-2 ● EN61000-3-3 ● KN22 Class A ● CNS13438 Class A |
| EMC: Immunity | ● EN55024
● CISPR24 ● EN300386 ● KN 61000-4 series |
| RoHS | The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors. |
