PWR-C1-1100WAC
PWR-C1-1100WAC
$365.00
The PWR-C1-1100WAC is a power supply unit (PSU) manufactured by Cisco Systems, Inc., designed to deliver 350 watts of AC power to Cisco Catalyst 9300 series switches. This PWR-C1-1100WAC PSU supports power management features like Cisco Energy Wise technology and provides Power over Ethernet (PoE) with up to 30 watts of power per port for connected devices. It’s hot-swappable design allows for replacement while the switch remains operational, ensuring no downtime.
Quick Specs
| Product Code | PWR-C1-1100WAC |
| Power supply rated maximum | 1100W |
| Total output BTU(Note:1000BTU/hr=293W) | 3793BTU/hr,1100W |
| Input-voltage range and frequency | 115-240VAC,
50-60Hz |
| Input current | 12-6A |
| Output ratings | -56Vat19.64A |
| Output hold uptime | 10msminimumat102.5VAC |
| Power-supply input receptacles | IEC 320-C16(IEC60320-C16) |
| Power cord rating | 13A |
| Physical specifications | (HxWxD):1.58X3.25X13.7in
Weight:3lb (1.4kg) |

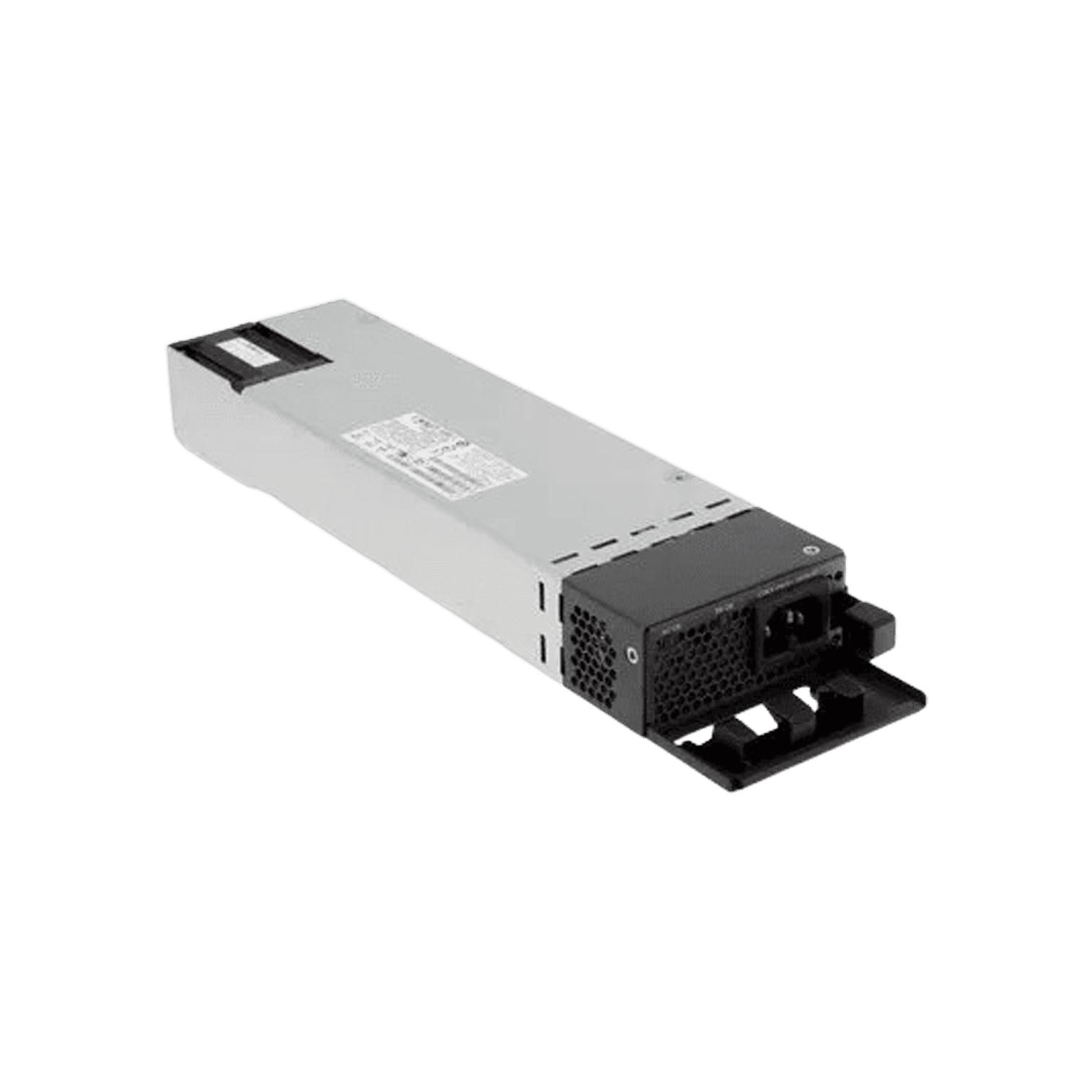

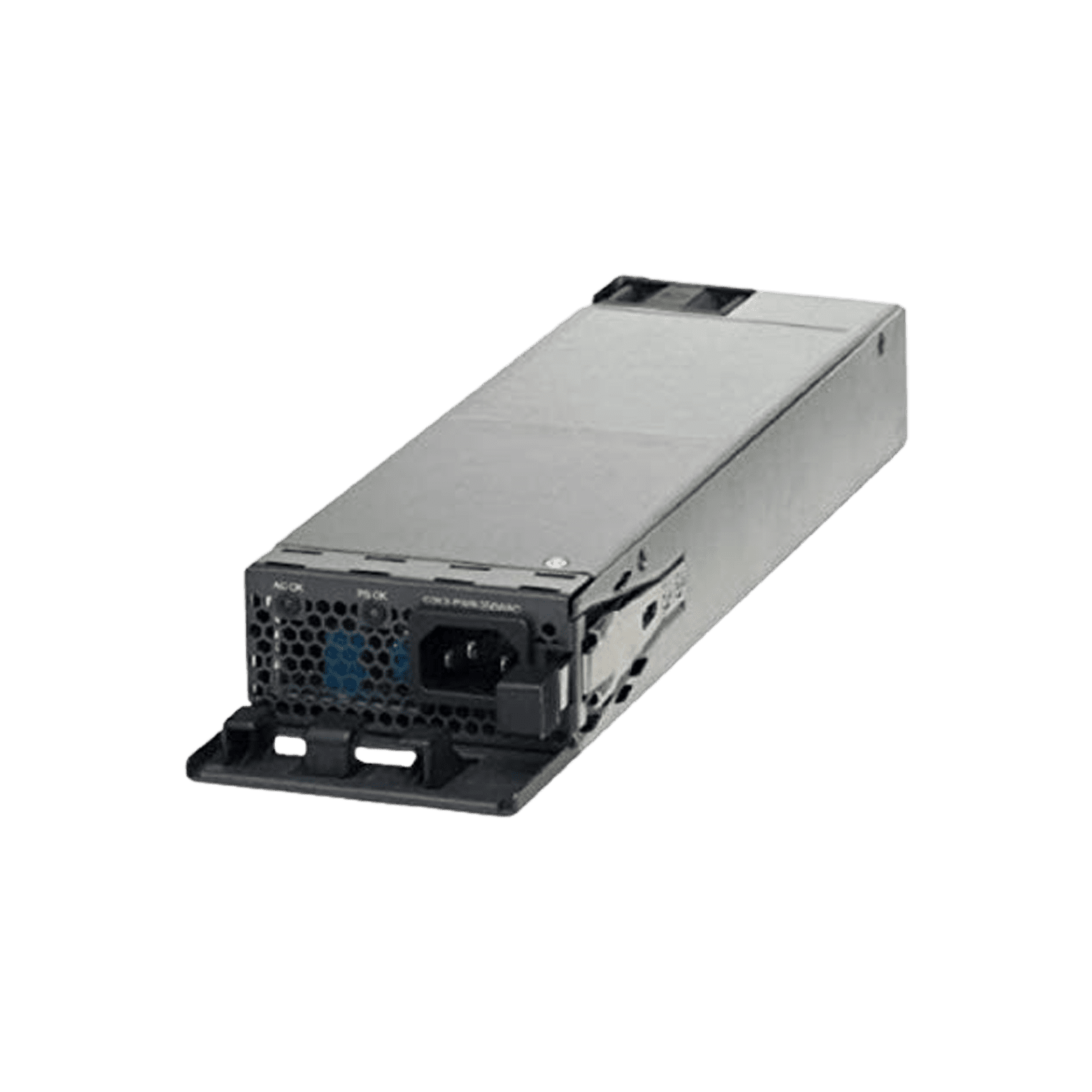

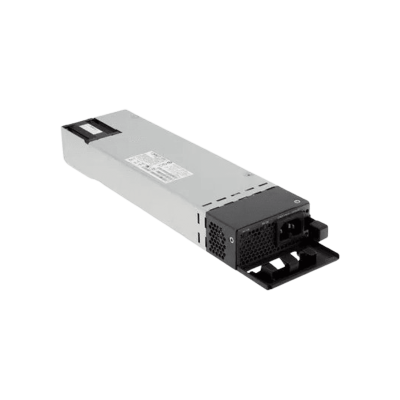

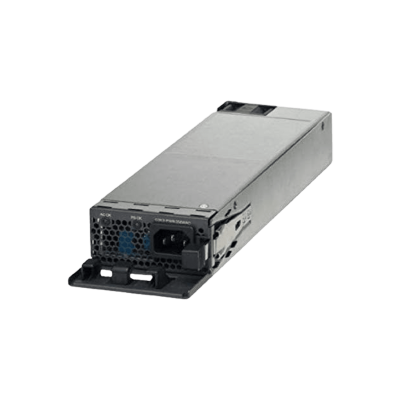

Appearance of PWR-C1-1100WAC.
Recommended Elements for the PWR-C1-1100WAC.
| Category | Model | Description |
| Power Cable | CAB-TA-NA | North America AC Type A Power Cable |
| CAB-TA-JP | Japan AC Type A Power Cable | |
| CAB-C15-CBN | CabinetJumperPowerCord,250VAC13A,C14-C15Connectors |
PWR-C1-1100WACSpecification |
|
| Power supply rated maximum | 1100W |
| Total output BTU (Note: 1000 BTU/hr =293W) | 3793BTU/hr,1100W |
| Input-voltage range and frequency | 115-240VAC,
50-60Hz |
| Input current | 12-6A |
| Output ratings | -56Vat19.64A |
| Output hold uptime | 10msminimumat102.5VAC |
| Power-supply input receptacles | IEC 320-C16(IEC60320-C16) |
| Power cord rating | 13A |
| Physical specifications | (HxWxD):1.58X3.25X13.7in
Weight:3lb (1.4kg) |
| Operating temperature | 23to113°F(-5to45°C) |
| Storage temperature | -40to158°F(-40to70°C) |
Compare to Similar Items
| Product Code | PWR-C1-350WAC | PWR-C1-440WDC | PWR-C1-715WAC= | PWR-C1-1100WAC |
| Power supply rated maximum | 350W | 440W | 715W | 1100W |
| Total output BTU (Note:1000 BTU/hr = 293W) | 1207BTU/hr,350W | 1517BTU/hr,440W | 2465BTU/hr,715W | 3793BTU/hr,1100W |
| Input-voltage range and frequency | 100-240VAC,
50-60Hz |
-36VDCto-72VDC | 100-240VAC,
50-60Hz |
115-240VAC,
50-60Hz |
| Input current | 4-2A | <8Aat-72VDC
<16Aat-36VDC |
10-5A | 12-6A |
| Output ratings | -56Vat6.25A | -56Vat7.86A | -56Vat12.8A | -56Vat19.64A |
| Output hold uptime | 16.7msminimumat100VAC | >2msat-48VDC | 16.7msminimumat100VAC | 10msminimumat102.5VAC |
| Power-supply input receptacles | IEC320-C16(IEC60320-C16) | Terminal strip | IEC 320-C16(IEC60320-C16) | IEC 320-C16(IEC60320-C16) |
| Power cord rating | 10A | 20Aat100VDC | 13A | 13A
|
Comparison of PWR-C1-350WAC, PWR-C1-440WDC, PWR-C1-1100WAC and PWR-C1-715WAC=
| Relative humidity operating and non operating non condensing | 5to90% non condensing |
| Altitude | 10,000ft.(3000meters),upto45°C |
| MTBF | Calculated MTBF must be greater than 300,000 using Telcordia SR-332, Method 1, Case 3. Demonstrated MTBF is500,000 hr (with 90% confidence level). |
| EMI and EMC compliance | FCC Part 15 (CFR 47) Class AICES-003 Class A
EN 55022 Class ACISPR 22 Class AAS/NZS 3548 Class A BSMI Class A (AC input models only)VCCI Class A EN55024,EN300386,EN50082-1,EN61000-3-2,EN61000-3-3 EN61000-4-2,EN61000-4-3,EN61000-4-4,EN61000-4-5,EN61000-4-6,EN61000-6-1 |
| Safety compliance | UL60950-1,CAN/CSA-C22.2No.60950-1,EN60950-1,IEC60950-1,CCC,CEMarking |
| LED indicators | “ACOK”:Input power to the power supply is OK“PS OK”: Output power from the power supply is OK |
